Water Cold Sealing Flang for 3.5" (89 mm) dia.Tube - FG-89WC
  • Water Cold Sealing Flang for 3.5" (89 mm) dia.Tube - FG-89WC
  • Water Cold Sealing Flang for 3.5" (89 mm) dia.Tube - FG-89WC
  • Water Cold Sealing Flang for 3.5" (89 mm) dia.Tube - FG-89WC
  • Water Cold Sealing Flang for 3.5" (89 mm) dia.Tube - FG-89WC
Water Cold Sealing Flang for 3.5" (89 mm) dia.Tube - FG-89WC

Water Cold Sealing Flang for 3.5" (89 mm) dia.Tube - FG-89WC

SKU: fg-89wc

Price: RFQ

Description

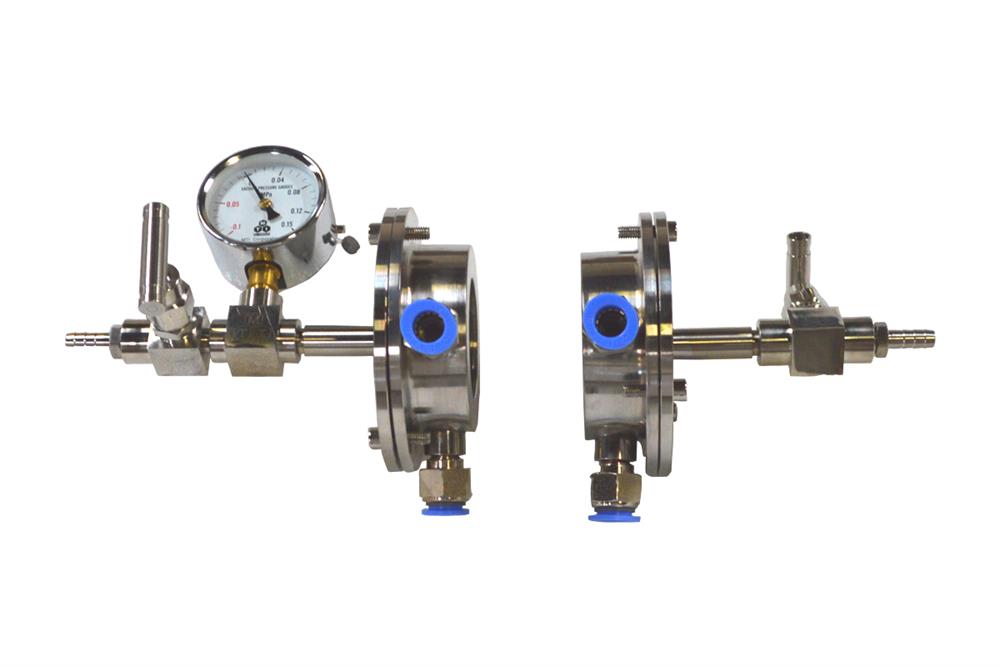

 This is a pair of sealing flange with the water cooling jacket valve for OD 3.5" (89 mm diameter)  processing tube. If you cannot use a ceramic block in two ends of tube, you must use the water cooling jacket to keep flange cool (otherwise silicone o-ring may get damage) SPECIFICATIONS Features Made of Stainless Steel with double high-temperature silicone O-rings on the flange. Stainless steel needle valve with 1/4" barbed fitting. 12mm Push to Connect port for water tube. The assembly kit will seal one end of 89-91 mm ( 3.5") diameter ceramic and quartz tube. Vacuum meter is installed in one side of flange. You may choose left side, right side or a full set of the flange at product option bar Note:  You may order Digital Temperature Controlled Recirculating Water Chiller with 16L / min Flow , to cool the flange and save water. ( click picture below right to order ) Vacuum level 10E-2 torr by a mechanical pump 10E-5 torr by a small turbopump and 10-6 torr by hi-speed turbopump Warming Must put a refractory tube block in front of the flange ( see picture below ) to avoid heat radiation melt silicone O-ring. Please click the picture below-center to order the block. Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns. Application Notes Max. furnace working temperature is 1100ºC without thermal block If furnace working temperature > 1100ºC, suggest you use a thermal block Please always use a recirculating water chiller ( see related product below ) to save water and protect

Features
  • Made of Stainless Steel with double high-temperature silicone O-rings on the flange.
  • Stainless steel needle valve with 1/4" barbed fitting.
    12mm Push to Connect port for water tube.
  • The assembly kit will seal one end of 89-91 mm ( 3.5") diameter ceramic and quartz tube.
  • Vacuum meter is installed in one side of flange.
  • You may choose left side, right side or a full set of the flange at product option bar
  • Note:  You may order Digital Temperature Controlled Recirculating Water Chiller with 16L / min Flow, to cool the flange and save water. ( click picture below right to order )






Vacuum level
Warming
  • Must put a refractory tube block in front of the flange ( see picture below ) to avoid heat radiation melt silicone O-ring. Please click the picture below-center to order the block.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.


Application Notes
  • Max. furnace working temperature is 1100ºC without thermal block
  • If furnace working temperature > 1100ºC, suggest you use a thermal block
  • Please always use a recirculating water chiller (see related product below) to save water and protect
