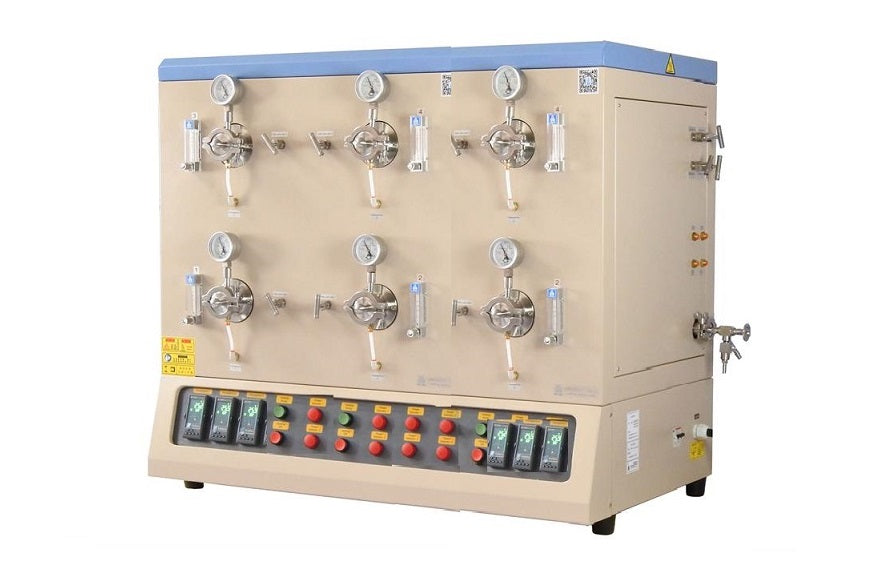

1200C Max 6 Channel Tube Furnace (50mm Quartz Tube) for Hi-Throughput Annealing - GSL-1200X-MGI-6

• The furnace is consistent with six-tube furnace modules with quartz tube 50 OD x 460 L, mm
• Each heating module's temperature is controlled independently up to 1200°C
• Quickly sealed flange, Vacuum gauge, and flowmeter are installed to allow heat treatment under vacuum or flowing gas
• Processing six batches of samples with different temperatures at compact space

• Ni-Cr-Al- resistance wire

Working Temperature

• Max.Working Temperature 1200°C

• High purity quartz tube with Φ50X L 460 mm, 6 tubes included
• 4 flowmeters are included
• The quickly clamped flange of KF25 with mechanical vacuum gauge and needle valves
• Max. Vacuum 10^-5 torr by a turbopump
• Only one vacuum pump is required via a KF25 port. Click the picture below to choose a vacuum pump



• Six digital Programmable Temperature Controllers built-in
• Includes over-temperature and broken thermal couple alert.
• 6 channel heating tube is controlled independently by 24 segments programmable temperature controller
• 6 S type Thermal Couple
• Includes RS485 Communication port and PC control software, which can control and record the temperature of all 4 channel heaters by one Laptop.

Heating Rate

•  20°C/ min Max.

Temperature Accuracy

• +/- 1.0 °C

Power & Working Voltage

• 10 KW, 208 - 240V single phase, 50/60Hz (if 6 heating modules operate at the same time)
• Note Power cable included but without a plug. Please install a plug on your own. You may purchase a plug from your local hardware store or browse our catalog for a compatible plug.

• CE Certified
•  NRTL (UL61010) or CSA certification is available upon request at extra cost.
