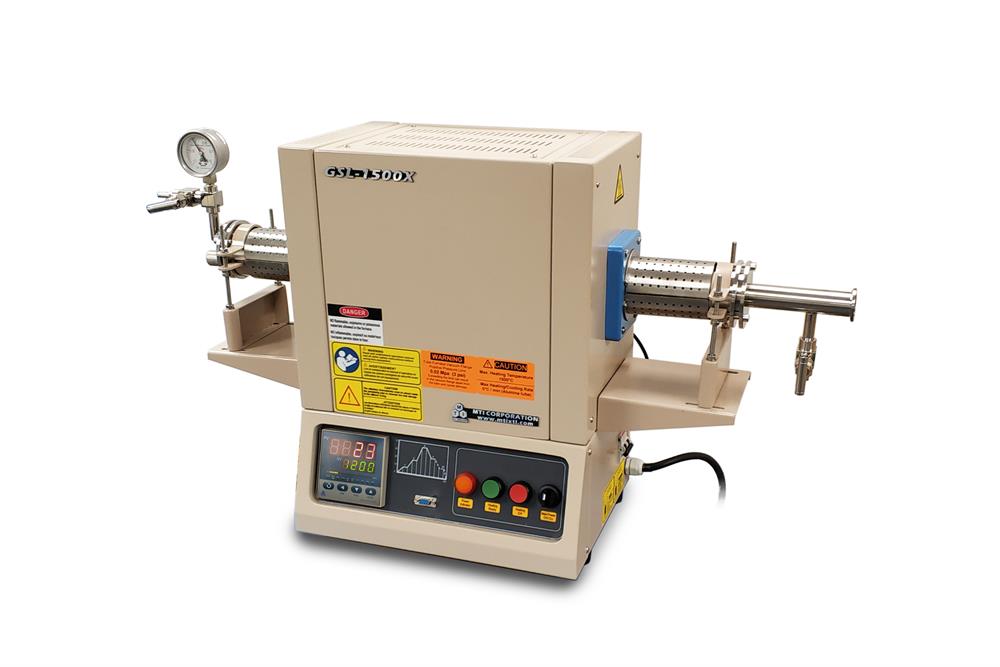

| Furnace Structure |
|
| Power |
- Single Phase, 208 - 240V AC, 50/60 Hz.
- 2.5 KW Max.(20A breaker required)
- Power cable included, but no plug
|
|
Alumina Process tube
|
-
99.5% High Purity Alumina processing tube.
-
2" (50.8mm) O.D x 1.65" (42mm) I.D x 27.6" (700 mm) Length.
-
Two fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube.
(Ceramic blocks must be fully inserted into the furnace chamber before heating)
-
|
Vacuum Flange
&
Optional parts |
- One pair of SS 304 vacuum flange with double high-temperature silicone O-ring is Included
- Two-needle valves with 1/4" pipe adapter are installed with the flange
- 2" default flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum port（click bottom right picture to see details )
- One Vacuum/ pressure gauge is installed on one side of the flange
- The angle valve is not included, please order at extra cost.
- The vacuum level can reach 10-2 torr by a quality mechanical vacuum pump and 10-5 torr by a molecular pump.
-
|
|
Pressure Measurement / Monitoring
|
Mechanical Vacuum Gauge (included ）
This mechanical vacuum gauge measures within a pressure range of -0.1 to 0.15Mpa.
|
Digital Pressure Gauge (optional)
A gas-type independent (above 10 m-bar) digital vacuum gauge with a wide range between 3.8x10-5 to 1125 Torr.
|
|
Working Temperature
|
- 1500 °C short time (less than 60 mins)
- 1400 °C Continuous
|
|

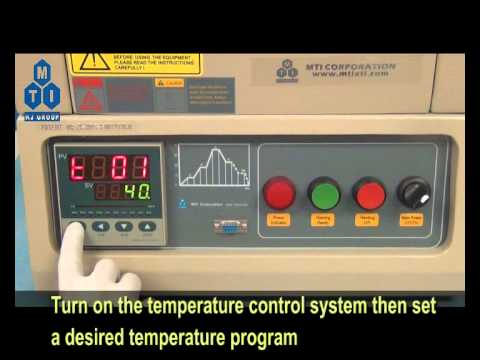

Temperature Controller
|
-
FA-YD518P-AG temperature controller is included.
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling, and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- +/- 1 ºC temperature control accuracy
|
|
Recommended Heating Rate:
|
- 10°C / min (RT~1000°C)
- 5°C / min (1000°C~1500°C)
|
| Heating Zone |
- Heating Zone Length: 6" (152 mm)
- Constant Temperature Zone: 60 mm (+/- 3°C)
- Temperature Accuracy: +/- 1.0°C
|
|
Heating Element:
|
- SiC rods, 4 pcs, (Click the picture below to order a replacement or spare one.)
- The heating element is consumables. Please click the picture below for detailed specs and order spare.
- For the SiC heating element, the Resistance change with life, please replace the aging rod properly.
|
|
Laptop, software & WiFi Control (Optional)
|
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
-
Labview Based Temperature Control System (EQ-MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters of operating range.
- The above features are available upon request at an extra cost (up to $1,000).
|
|
Compliance
|
- CE Certified
- NRTL(UL61010) or CSA certification is available at extra cost.
|
| Attention Notes |
Performance degradation (i.e. furnace cannot reach the maximum temperature of 1500°C or it is drawing a higher than normal working current) can be expected due to the use of aged SiC heating elements. It is necessary to replace all the heating elements if the above symptoms were seen. Please order the replacements from the standard package list in below. |
|
Warnings
Click here to learn about the installation of a gas regulator.
|
- The tube furnaces with alumina tubes are designed for use under vacuum and low pressure < 0.02 MPa
-
Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
- The flow rate for gasses should be limited to < 200 SCCM ( or 200ml/min )
- Vacuum pressures may only be safely used up to 1500°C
|
