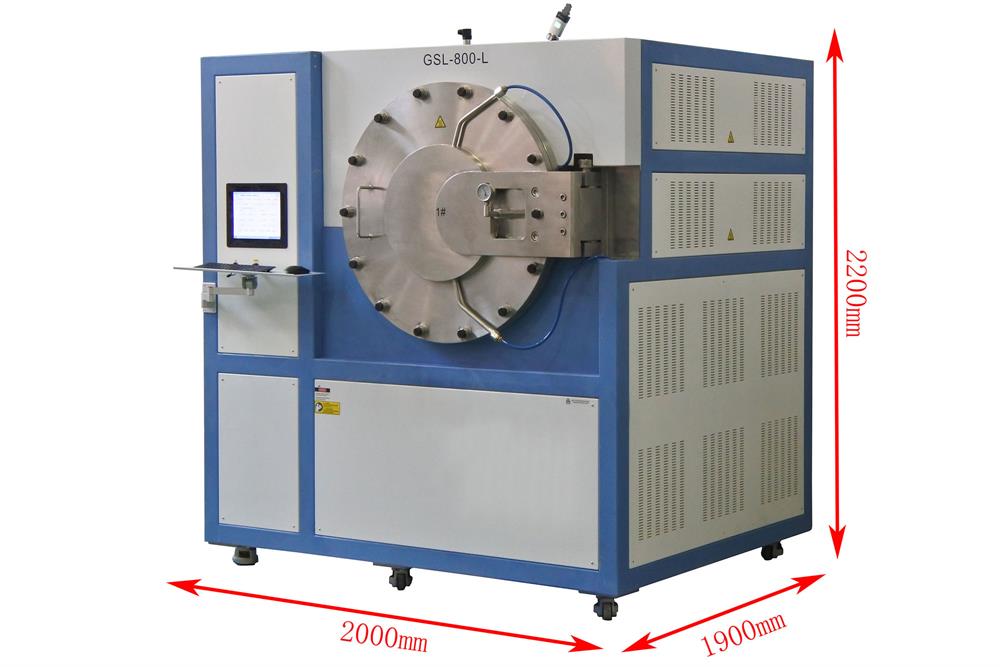

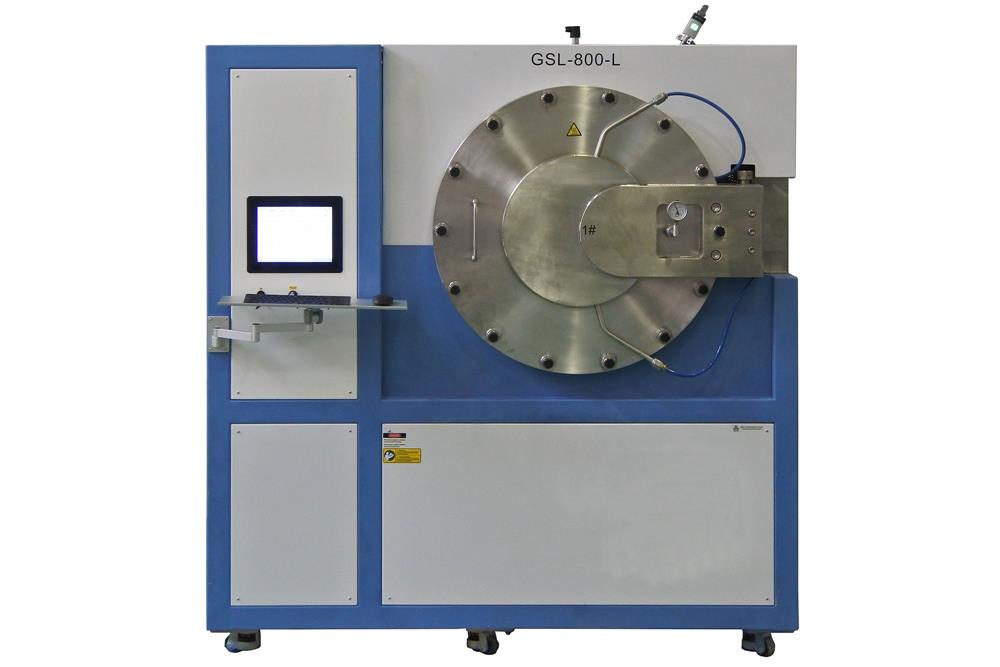

800°C High Vacuum & Pressure Chamber Furnace (500x500x500 mm up to 3.5 bar) GSL-800-L

• AC Three-phase 480V 50/60HZ
• 60KW

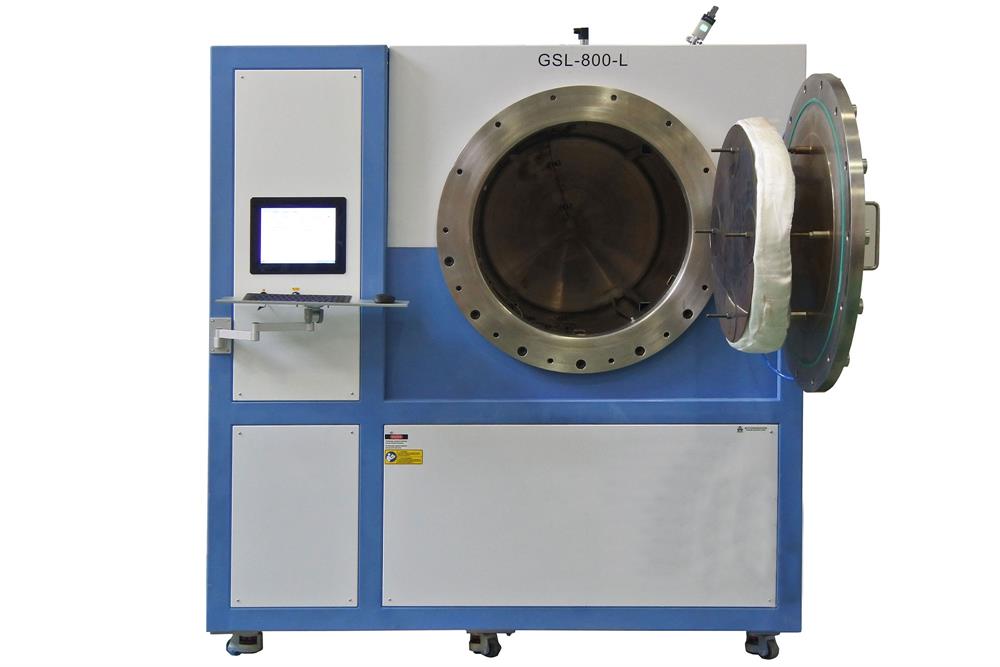

• Made of 310S stainless steel, chamber dimensions: 720mm * 900mm deep (volume: 366L)
• Water cooling door
• Usable space: 500mm-500mm-500mm (cubic space)
• Internal components are all made of metal to ensure cleanliness.
• φ12.7 gas inlet, controlled by an electromagnetic needle valve to regulate gas intake.
• φ12.7mm exhaust port, controlled by an electromagnetic needle valve to regulate gas release
• Reserved a KF40 exhaust port for high-pressure use.
• Max. vacuum is 10-3 torr by mechanical pump and 10-5 by a turbopump
• Max. working pressure (absolute pressure): 0.25MP (750°C)0.35MP (500°C)
• Equipped with pressure sensors and electromagnetic pressure relief valves, providing automatic pressure maintenance and overpressure relief functions to ensure equipment safety.
• Features both inner and outer tube temperature monitoring.
• Includes a 1-channel mass flow meter for the intake system with a flow rate of 5L/min.
• Equipped with a mechanical pump vacuum system that can be started automatically or manually.

• Long-term Operating Temperature: 800 (In a Flowing Atmosphere/Vacuum State)
• Temperature Control Thermocouples: Seven K-type thermocouples (Three inside the chamber and four outside the chamber)
• Four heating zones (3 circular ones + 1 bottom) to create a more uniform temperature field
• Total Heating Zone Length: 900mm (370+310+220)Temperature uniformity: ±10°C (in a flowing atmosphere)
• Heating Rate: ≤5/min
• Heating Elements: Molybdenum-Iron-Chromium-Aluminum Resistance Wire

• Eurothero EPC3000
• PID automatic temperature control system.
• Intelligent 24-segment programmable control
• Temperature accuracy: +/- 5°C
• DB9 port for PC communication

Control System

• The temperature control system allows for setting up heating, constant temperature, and cooling curves through a touchscreen interface
• Real-time monitoring of chamber pressure, vacuum level, and temperature is displayed on the touchscreen.
• It provides the capability to perform constant pressure control within a range of 0.01MPa to 0.2MPa
• Data can be saved, recorded, and downloaded, and process curves can be generated and saved for future experiments.

• Power Supply: AC220V 50Hz

• Power: 3.5KW

• Working Current: 3.4~18.1A

• Cooling Capacity: 26826 Btu/h

• Water Tank Capacity: 40L

• Inlet and Outlet: Rp1"

• Maximum Pump Water Flow Rate: 75L/min

• Standard mechanical pump, three-phase VRD-36, can achieve a vacuum level of 10-2 torr
• With a molecular pump, the vacuum level can reach 10-5 torr.



• CE certified
• NRTL or CSA certification is available upon request at the extra cost
