SKU: gsl-800-l

Price: RFQ

Description

 GSL-800-L is a high-vacuum and high-pressure chamber furnace with a maximum temperature of 800°C and pressure of up to 3.5 bar.. It features a chamber made of 310S stainless steel to ensure a cleanliness level of up to Class 100, and external heating. It can also perform vacuum sintering with a maximum vacuum level of 5.0*10^-3 Pa, particularly for the heat treatment of high-pressure oxygen environment superconducting materials (YBCO). SPECIFICATIONS: Power AC Three-phase 480V 50/60HZ 60KW Working Chamber Made of 310S stainless steel, chamber dimensions: 720mm * 900mm deep (volume: 366L) Water cooling door Usable space: 500mm-500mm-500mm (cubic space) Internal components are all made of metal to ensure cleanliness. φ12.7 gas inlet, controlled by an electromagnetic needle valve to regulate gas intake. φ12.7mm exhaust port, controlled by an electromagnetic needle valve to regulate gas release Reserved a KF40 exhaust port for high-pressure use. Max. vacuum is 10-3 torr by mechanical pump and 10-5 by a turbopump Max. working pressure (absolute pressure): 0.25MP (750°C)0.35MP (500°C) Equipped with pressure sensors and electromagnetic pressure relief valves, providing automatic pressure maintenance and overpressure relief functions to ensure equipment safety. Features both inner and outer tube temperature monitoring. Includes a 1-channel mass flow meter for the intake system with a flow rate of 5L/min. Equipped with a mechanical pump vacuum system that can be started automatically or manually. Heating Long-term Operating Temperature: 800 (In a Flowing Atmosphere/Vacuum State) Temperature Control Thermocouples: Seven K-type thermocouples (Three inside the chamber and four outside the chamber) Four heating zones (3 circular ones + 1 bottom) to create a more uniform temperature field Total Heating Zone Length: 900mm (370+310+220)Temperature uniformity: ±10°C (in a flowing atmosphere) Heating Rate: ≤5/min Heating Elements: Molybdenum-Iron-Chromium-Aluminum Resistance Wire Temperature Controler Eurothero EPC3000 PID automatic temperature control system. Intelligent 24-segment programmable control Temperature accuracy: +/- 5°C DB9 port for PC communication Control System The temperature control system allows for setting up heating, constant temperature, and cooling curves through a touchscreen interface Real-time monitoring of chamber pressure, vacuum level, and temperature is displayed on the touchscreen. It provides the capability to perform constant pressure control within a range of 0.01MPa to 0.2MPa Data can be saved, recorded, and downloaded, and process curves can be generated and saved for future experiments. Water Chiller (Optional) Power Supply: AC220V 50Hz Power: 3.5KW Working Current: 3.4~18.1A Cooling Capacity: 26826 Btu/h Water Tank Capacity: 40L Inlet and Outlet: Rp1" Maximum Pump Water Flow Rate: 75L/min Vacuum Pump (optional) Standard mechanical pump, three-phase VRD-36, can achieve a vacuum level of 10-2 torr With a molecular pump, the vacuum level can reach 10-5 torr. Compliance CE certified NRTL or CSA certification is available upon request at the extra cost

Power
  • AC Three-phase 480V 50/60HZ
  • 60KW
Working Chamber
  • Made of 310S stainless steel, chamber dimensions: 720mm * 900mm deep (volume: 366L)
    • Water cooling door
    • Usable space: 500mm-500mm-500mm (cubic space)
    • Internal components are all made of metal to ensure cleanliness.
    • φ12.7 gas inlet, controlled by an electromagnetic needle valve to regulate gas intake.
    • φ12.7mm exhaust port, controlled by an electromagnetic needle valve to regulate gas release
    • Reserved a KF40 exhaust port for high-pressure use.
  • Max. vacuum is 10-3 torr by mechanical pump and 10-5 by a turbopump
  • Max. working pressure (absolute pressure): 0.25MP (750°C)0.35MP (500°C)
  • Equipped with pressure sensors and electromagnetic pressure relief valves, providing automatic pressure maintenance and overpressure relief functions to ensure equipment safety.
  • Features both inner and outer tube temperature monitoring.
  • Includes a 1-channel mass flow meter for the intake system with a flow rate of 5L/min.
  • Equipped with a mechanical pump vacuum system that can be started automatically or manually.
Heating
  • Long-term Operating Temperature: 800 (In a Flowing Atmosphere/Vacuum State)
  • Temperature Control Thermocouples: Seven K-type thermocouples (Three inside the chamber and four outside the chamber)
  • Four heating zones (3 circular ones + 1 bottom) to create a more uniform temperature field
  • Total Heating Zone Length: 900mm (370+310+220)Temperature uniformity: ±10°C (in a flowing atmosphere)
  • Heating Rate: ≤5/min
  • Heating Elements: Molybdenum-Iron-Chromium-Aluminum Resistance Wire
Temperature Controler

  • Eurothero EPC3000
  • PID automatic temperature control system.
  • Intelligent 24-segment programmable control
  • Temperature accuracy: +/- 5°C
  • DB9 port for PC communication

Control System
  • The temperature control system allows for setting up heating, constant temperature, and cooling curves through a touchscreen interface
  • Real-time monitoring of chamber pressure, vacuum level, and temperature is displayed on the touchscreen.
  • It provides the capability to perform constant pressure control within a range of 0.01MPa to 0.2MPa
  • Data can be saved, recorded, and downloaded, and process curves can be generated and saved for future experiments.

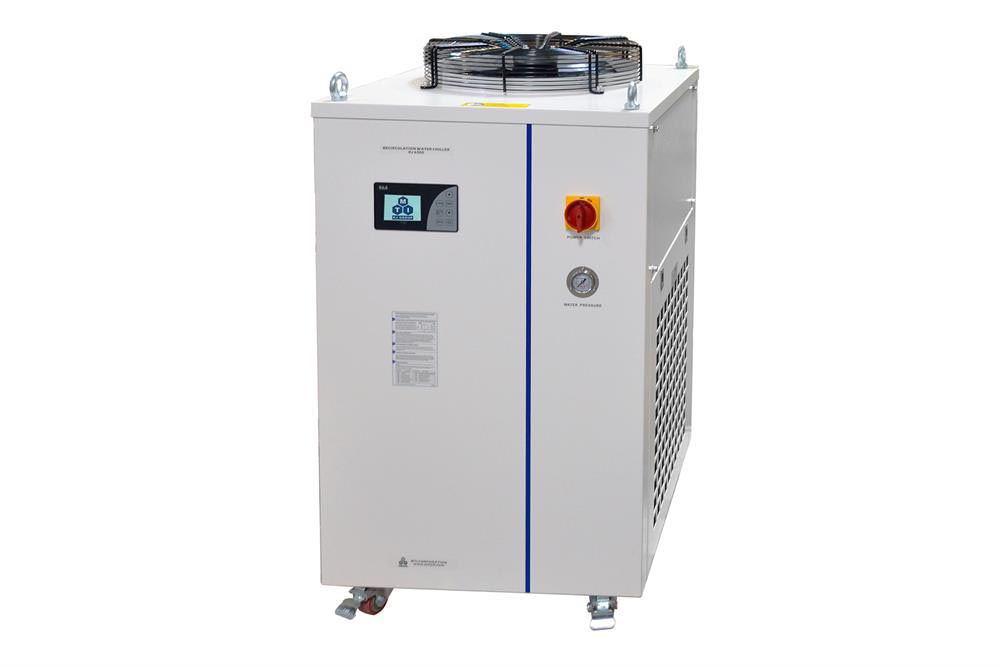

Water Chiller (Optional)

  • Power Supply: AC220V 50Hz

  • Power: 3.5KW

  • Working Current: 3.4~18.1A

  • Cooling Capacity: 26826 Btu/h

  • Water Tank Capacity: 40L

  • Inlet and Outlet: Rp1"

  • Maximum Pump Water Flow Rate: 75L/min
Vacuum Pump (optional)
  • Standard mechanical pump, three-phase VRD-36, can achieve a vacuum level of 10-2 torr
  • With a molecular pump, the vacuum level can reach 10-5 torr.

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
