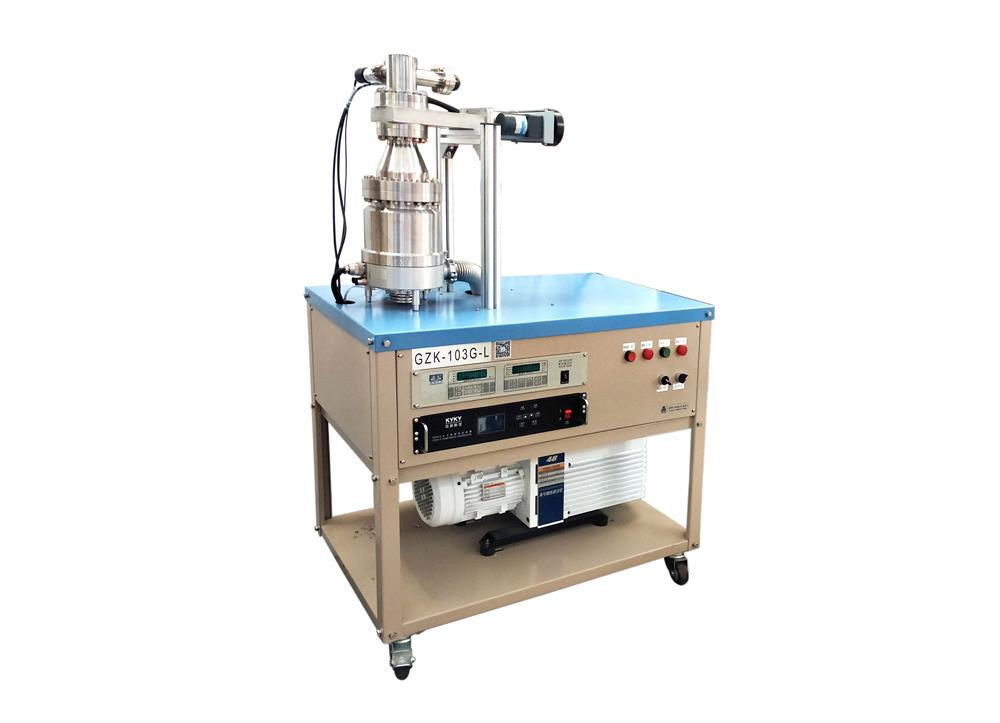

700L/S High Speed Turbo Pump Station with Electric Gate Valve (upto 10-7 torr) - GZK-103-L-LD
  • 700L/S High Speed Turbo Pump Station with Electric Gate Valve (upto 10-7 torr) - GZK-103-L-LD
  • 700L/S High Speed Turbo Pump Station with Electric Gate Valve (upto 10-7 torr) - GZK-103-L-LD
700L/S High Speed Turbo Pump Station with Electric Gate Valve (upto 10-7 torr) - GZK-103-L-LD

700L/S High Speed Turbo Pump Station with Electric Gate Valve (upto 10-7 torr) - GZK-103-L-LD

SKU: gzk-103-l-ld

Price: RFQ

Specifications

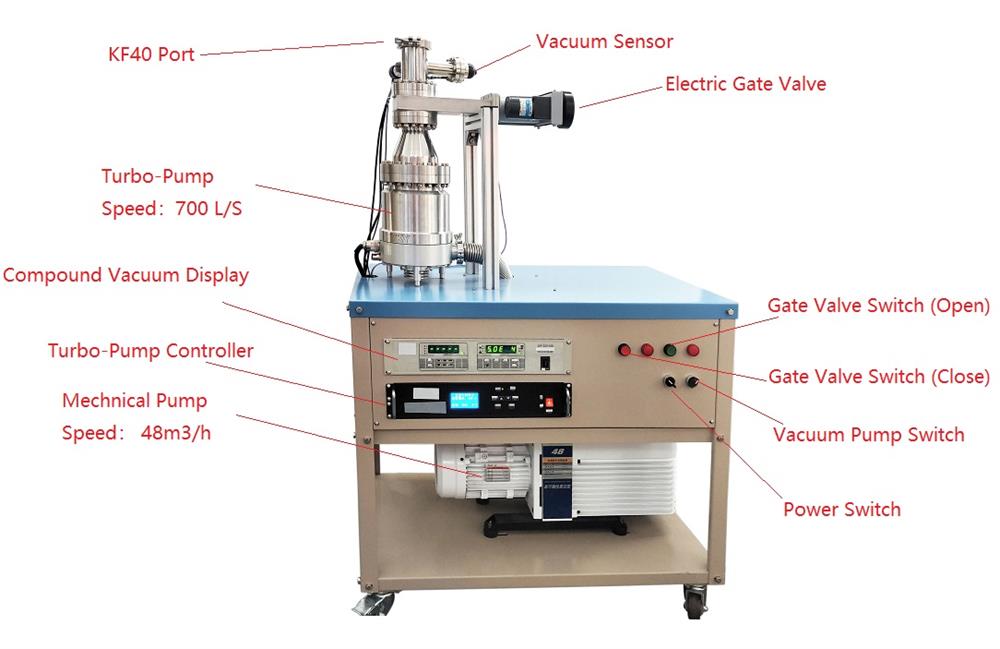

 EQ-GZK-103-L is a high-speed turbo-pump station with electric gate valve,  which provides the fastest pumping speed up to 700 L/s. It is an ideal tool for most of MTI's tube furnaces to achieve high vacuum > 5x 10E-7 torr (please read details in the specs) S pecifications Mobile Cart Structure Inside:  turbo-pump with rotary vane pump with vacuum pressure sensors and auto shut off valve Power 3x220VAC ± 10%, 50/60Hz 2.5 KW power consumption Pumping Speed & Vacuum Limit Turbo-pump  700 L/S Vacuum pressure:  10E-7 Torr  without connecting to any chamber Mechanical pump: 800 L/min Flange Size CF160 from turbo-pump KF 40 for connecting to the outside vacuum chamber Working Range From 750 Torr to < 5.0 E-7 Torr with the proper connection at room temperature. The 5.0 E-6 torr can be achieved with MTI 8" - 15" O.D tube furnace. Weight 135 Kg Dimensions Dimensions: 1000 X600 X 1550mm Warranty One year manufacturer warranty. (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed as below: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.) Compliance CE Certified NRTL certification is available upon request.

Mobile Cart Structure
  • Inside:  turbo-pump with rotary vane pump with vacuum pressure sensors and auto shut off valve
Power
  • 3x220VAC ± 10%, 50/60Hz
  • 2.5 KW power consumption
Pumping Speed
& Vacuum Limit
  • Turbo-pump  700 L/S
  • Vacuum pressure:  10E-7 Torr  without connecting to any chamber
  • Mechanical pump: 800 L/min

Flange Size
  • CF160 from turbo-pump
  • KF 40 for connecting to the outside vacuum chamber

Working Range
  • From 750 Torr to < 5.0 E-7 Torr with the proper connection at room temperature. The 5.0 E-6 torr can be achieved with MTI 8" - 15" O.D tube furnace.


Weight
  • 135 Kg

Dimensions
  • Dimensions: 1000 X600 X 1550mm

Warranty		 One year manufacturer warranty.(Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed as below:
  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.)
Compliance
  • CE Certified
  • NRTL certification is available upon request.
