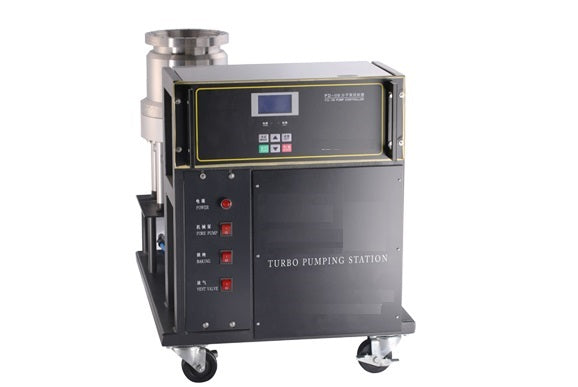

700L/S High Speed Turbo Pump Station w/ Touch Screen Controller - GZK-700G
  • 700L/S High Speed Turbo Pump Station w/ Touch Screen Controller - GZK-700G
  • 700L/S High Speed Turbo Pump Station w/ Touch Screen Controller - GZK-700G
700L/S High Speed Turbo Pump Station w/ Touch Screen Controller - GZK-700G

700L/S High Speed Turbo Pump Station w/ Touch Screen Controller - GZK-700G

SKU: gzk-700g

Price: RFQ

Specifications

 GZK-700G is a high-speed turbopump station,  which provides the fast pumping speed of 700 L/s. It is an ideal tool for most of MTI's tube furnaces to achieve high vacuum >5x 10E-7 torr S pecifications Mobile Cart Structure Mobile cart size:  730 (L) x 545  (W) x 980 (W), mm Molecular pump control Panel:   LCD digital Inside:  Turbopump with oil-less pump with vacuum pressure sensors  and auto shut off valve Power Standard power   208 - 240VAC, 50Hz 2000W power consumption Pumping Speed & Vacuum Limit Turbo-pump  700 L/S Vacuum pressure:  10E-7 Torr Flange Size DN160 LF  from the turbo-pump KF 40 for connecting the outside vacuum chamber Working Range From 750 Torr to < 5.0 E-7 Torr with a proper connection at room temperature In order to achieve a high vacuum,  the turbopump shall connect to the chamber directly. If you order MTI furnace,  the customized connection between the turbo-pump and the furnace flange is available upon request. Dimension Weight 135 Kg Warranty One year manufacturer warranty. (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all used for purposes deviating from those mentioned below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.) Compliance CE Certified NRTL certification is available upon request. Replacement Part Please click the image to order replacement part.

Mobile Cart Structure

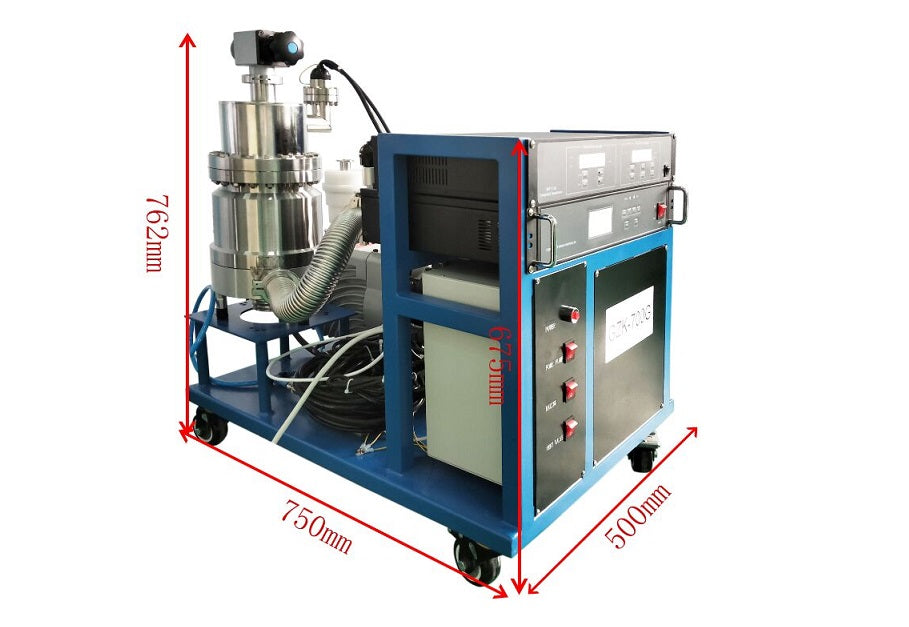

  • Mobile cart size:  730 (L) x 545  (W) x 980 (W), mm
  • Molecular pump control Panel:   LCD digital
  • Inside:  Turbopump with oil-less pump with vacuum pressure sensors  and auto shut off valve
Power
  • Standard power   208 - 240VAC, 50Hz
  • 2000W power consumption
Pumping Speed
& Vacuum Limit
  • Turbo-pump  700 L/S
  • Vacuum pressure:  10E-7 Torr

Flange Size
  • DN160 LF  from the turbo-pump
  • KF 40 for connecting the outside vacuum chamber

Working Range
  • From 750 Torr to < 5.0 E-7 Torr with a proper connection at room temperature
  • In order to achieve a high vacuum,  the turbopump shall connect to the chamber directly.
  • If you order MTI furnace,  the customized connection between the turbo-pump and the furnace flange is available upon request.


Dimension

Weight
  • 135 Kg

Warranty		 One year manufacturer warranty. (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all used for purposes deviating from those mentioned below, especially:
  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.)
Compliance
  • CE Certified
  • NRTL certification is available upon request.
Replacement Part
  •  Please click the image to order replacement part.
