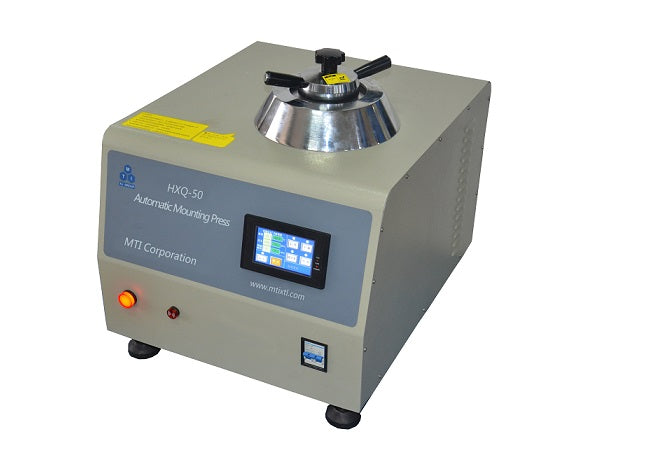

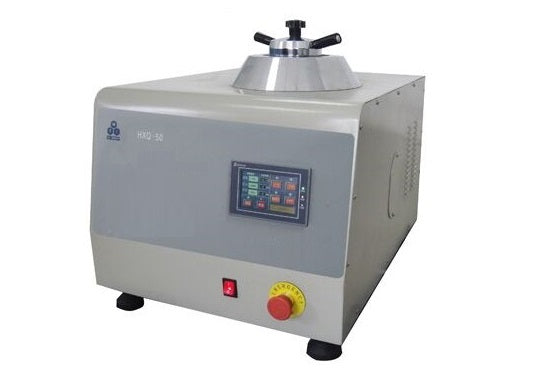

Automatic Mounting Press upto 200C and 2.3 T for SEM & Metallographic Samples - HXQ50

• 220VAC 50Hz or 60Hz (Please specify frequency upon purchasing)
• For AC 110V power supply please order a 1500W voltage transformer
• 1200W (10A air breaker required)

• Four sets of mounting dies are included with an ID of 25, 30, 40, and 50 mm, which can make two samples at the same time.
• Each Die Set include:
• Die Sleeve: OD 60 mm, Height ~135 mm
• Upper Pressing Rod: Height ~26 mm
• Lower Pressing Rod: Height ~26 mm
• Separating Plate: Height: 8 mm

Control Panel

• 5" Touch Screen Digital control for setting parameters:
• Temperature: 100 - 200^oC
• Heating and dwell time: 1 - 999 minute
• Loading: 200 - 2306 kg ( via hydraulic cylindrical )
• Pressure: depended on mounting die diameter
• Max. 470 Bar for 25 mm die
• Max: 326 Bar for 30 mm die
• Max. 183 bar for 40 mm die
• Max. 118 Bar for 50 mm die

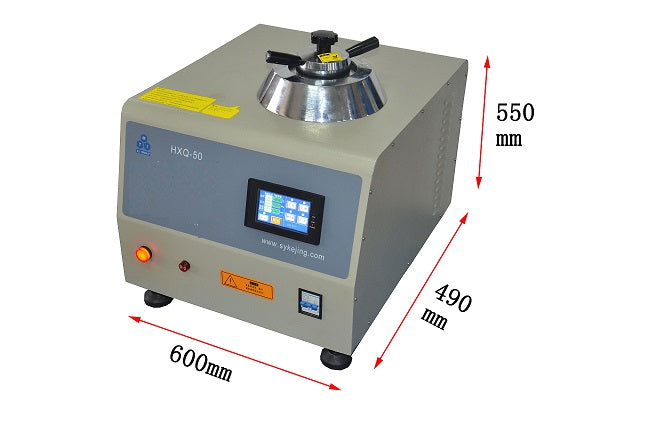

Machine Dimension

Machine Net weight

200 Lb.

Shipping Weight & Dimensions

• 250 lbs
• 40" x 30" x 28"

Optional

Please order Compression Mounting Powder (5 Lb) optional color of Black, Red, Green - EQ-HM-Powder5L at the related product below

CE Marked

NRTL certification is available upon request at extra cost
