1200°C Max. Compact Muffle Furnace with Precision TGA Function ( 3.3 L) - KSL-1200J -TGA
  • 1200°C Max. Compact Muffle Furnace with Precision TGA Function ( 3.3 L) - KSL-1200J -TGA
  • 1200°C Max. Compact Muffle Furnace with Precision TGA Function ( 3.3 L) - KSL-1200J -TGA
  • 1200°C Max. Compact Muffle Furnace with Precision TGA Function ( 3.3 L) - KSL-1200J -TGA
1200°C Max. Compact Muffle Furnace with Precision TGA Function ( 3.3 L) - KSL-1200J -TGA

1200°C Max. Compact Muffle Furnace with Precision TGA Function ( 3.3 L) - KSL-1200J -TGA

SKU: ksl-1200j-tga

Price: RFQ

Specifications

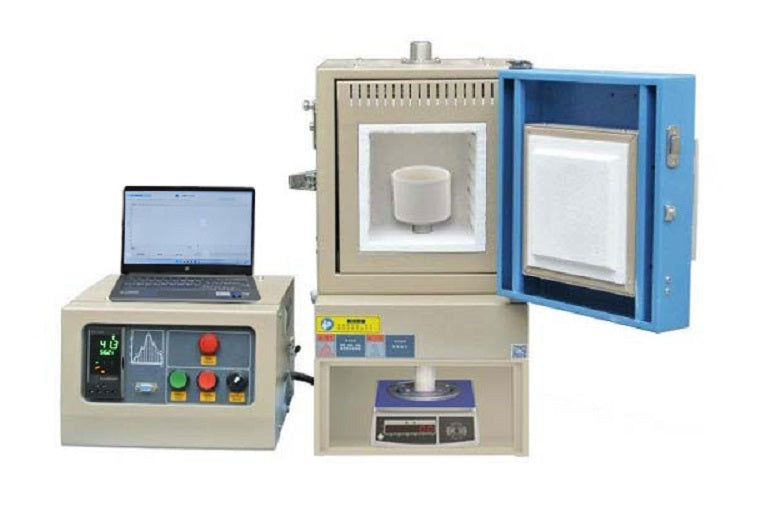

 KSL-1200J -TGA is a compact muffle furnace ( 4.2L ) with a precision TGA (thermal gravimetric analysis) function. It is a cost-effective tool to analyze the phase transition of various oxide compounds from 100°C to 1200°C in large quantity samples (10 - 100 g) under air ambient conditions. A high-throughput system with robotics is available for autonomous operation. SPECIFICATIONS Furnace Structure 150 x150 x150 mm heating chamber with 4.2 L capacity High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency. Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch. Double-layer steel case with forced-air cooling to ensure lower safer face temperature. One venting port is built on top of the furnace One air inlet is located at the back of the furnace. Temperature Controllers Eurotherm -3000 Programmable temperature controller is built in +/- 0.1 ºC temperature accuracy. Max. heating rate: 20oC/month One K-type thermocouple. PC control software and interface module are included to show and record the curve, both temperature and weight change One brand new laptop computer is included with restored software Electronic Balance A precision electronic balance is located at the bottom of the heating chamber with a 0.001 g resolution The alumina crucible is set on the balance via an alumina rod Max. weighting 500 g Sample amount: 10 g minimum; 100 g maximum. Force Sensor output data will connect to the laptop to show the weight change curve with temperature RS-485 port and operation software are included Crucibles One 7.9 ml alumina crucible is included. Please click Pic. 1 to order more You may click Pic. 2 to choose ZrO2, BN, or Y2O3 crucible based on your application The customized crucible is available upon request Pic. 1 Pic. 2 Power 208 -240V Single Phase, 50/60 Hz 2500W ( not suitable for 110VAC) Note that the Power cable is included but without a plug. Please install a plug on your own according to your country or your lab's requirements. Option A high-throughput system with robotics is available for autonomous operation for two to four TGA furnaces Compliance CE Certified NRTL or CSA certification is available upon request at extra cost.

 Furnace Structure
  • 150 x150 x150 mm heating chamber with 4.2 L capacity
  • High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
  • Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch.
  • Double-layer steel case with forced-air cooling to ensure lower safer face temperature.
  • One venting port is built on top of the furnace
  • One air inlet is located at the back of the furnace.

Temperature Controllers
  • Eurotherm -3000 Programmable temperature controller is built in
  • +/- 0.1 ºC temperature accuracy.
  • Max. heating rate: 20oC/month
  • One K-type thermocouple.
  • PC control software and interface module are included to show and record the curve, both temperature and weight change
  • One brand new laptop computer is included with restored software
Electronic Balance
  • A precision electronic balance is located at the bottom of the heating chamber with a 0.001 g resolution
  • The alumina crucible is set on the balance via an alumina rod
  • Max. weighting 500 g
  • Sample amount: 10 g minimum; 100 g maximum.
  • Force Sensor output data will connect to the laptop to show the weight change curve with temperature
  • RS-485 port and operation software are included

Crucibles
  • One 7.9 ml alumina crucible is included. Please click Pic. 1 to order more
  • You may click Pic. 2 to choose ZrO2, BN, or Y2O3 crucible based on your application
  • The customized crucible is available upon request
  • Pic. 1 Pic. 2

Power
  • 208 -240V Single Phase, 50/60 Hz
  • 2500W ( not suitable for 110VAC)
  • Note that the Power cable is included but without a plug. Please install a plug on your own according to your country or your lab's requirements.

Option

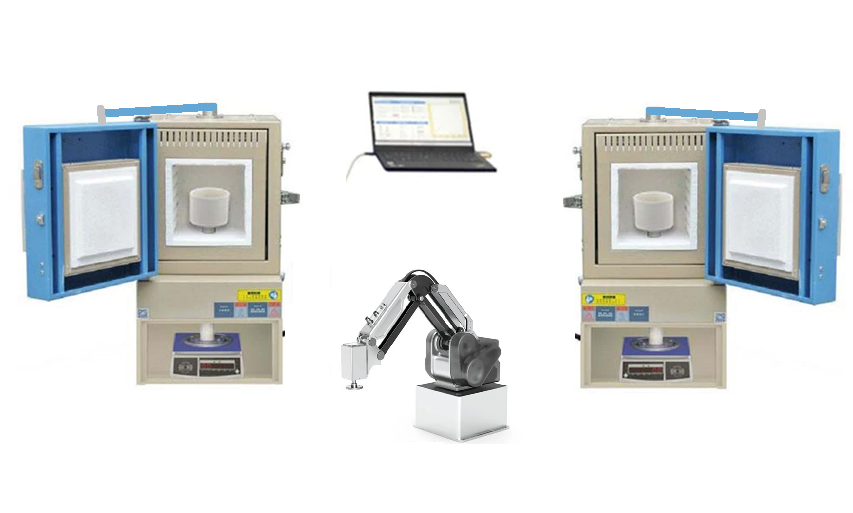

A high-throughput system with robotics is available for autonomous operation for two to four TGA furnaces

 Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at extra cost.
