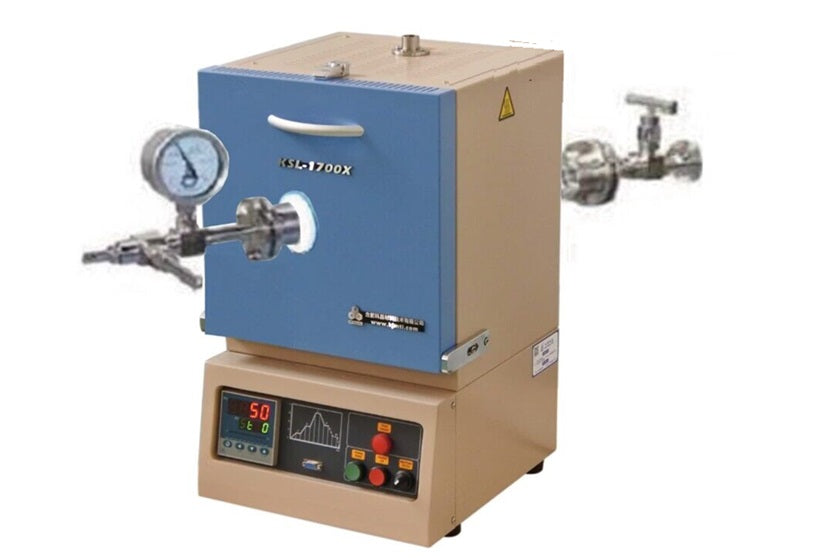

1700ºC Hybrid Furnace (1.7L Box & 1" ID Alumina Tube) with Programmable Controller - KSL-1700X-S-H
  • 1700ºC Hybrid Furnace (1.7L Box & 1" ID Alumina Tube) with Programmable Controller - KSL-1700X-S-H
  • 1700ºC Hybrid Furnace (1.7L Box & 1" ID Alumina Tube) with Programmable Controller - KSL-1700X-S-H
  • 1700ºC Hybrid Furnace (1.7L Box & 1" ID Alumina Tube) with Programmable Controller - KSL-1700X-S-H
  • 1700ºC Hybrid Furnace (1.7L Box & 1" ID Alumina Tube) with Programmable Controller - KSL-1700X-S-H
  • 1700ºC Hybrid Furnace (1.7L Box & 1" ID Alumina Tube) with Programmable Controller - KSL-1700X-S-H
1700ºC Hybrid Furnace (1.7L Box & 1" ID Alumina Tube) with Programmable Controller - KSL-1700X-S-H

1700ºC Hybrid Furnace (1.7L Box & 1" ID Alumina Tube) with Programmable Controller - KSL-1700X-S-H

SKU: ksl-1700x-s-h

Price: RFQ

Specifications

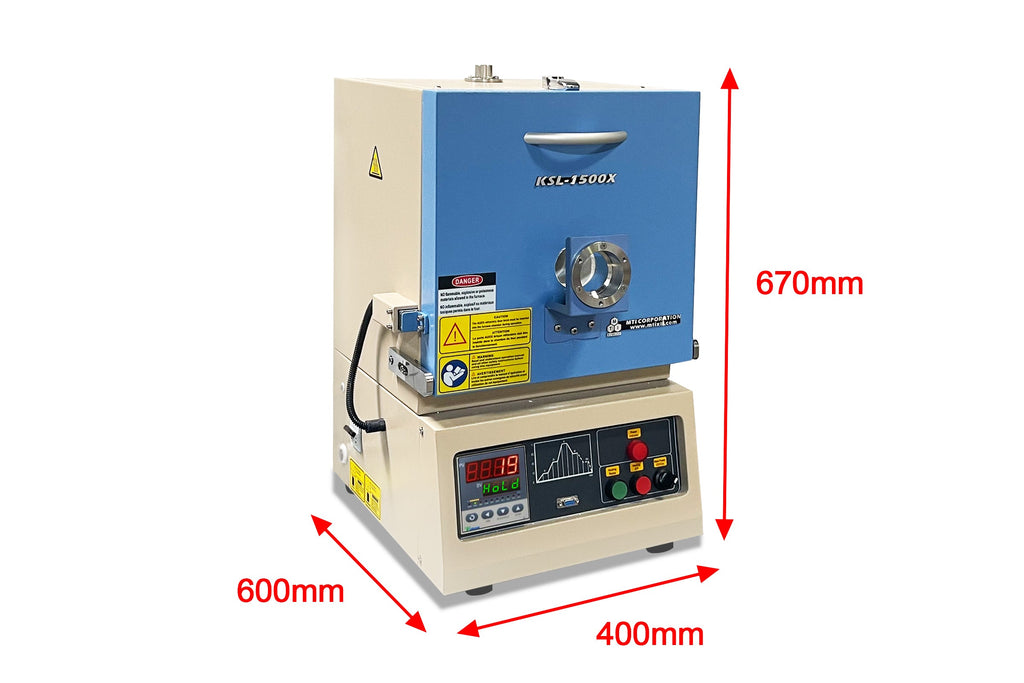

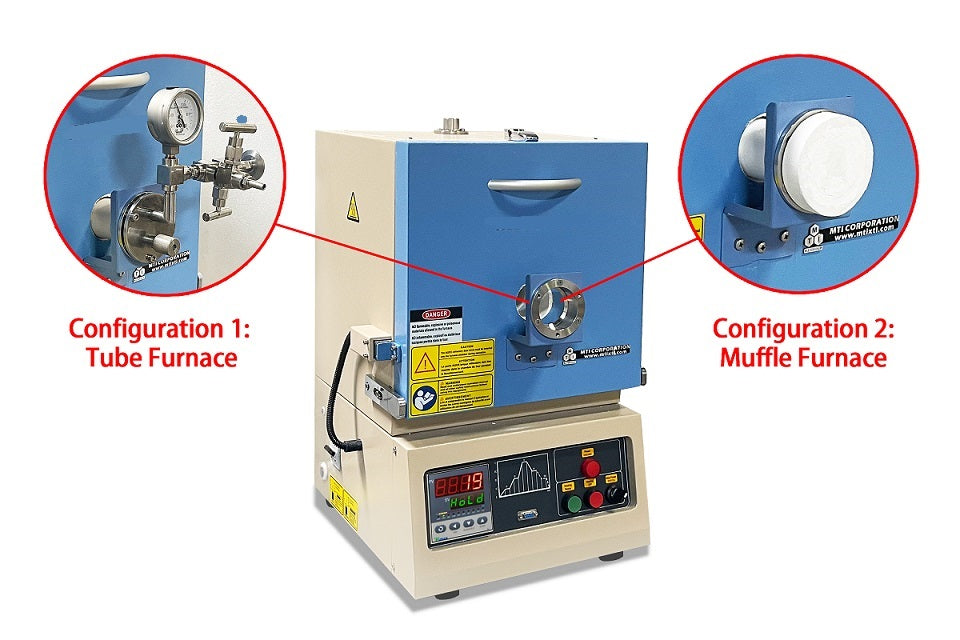

 KSL-1700X-S-H is a1700ºC max. compact hybrid furnace that can be used as a 1.7L ( 12x12x12cm ) muffle furnace and a 1" ID " tube furnace. It is a cost-effective and space-saving solution for material processing labs. SPECIFICATIONS: Furnace Structure The design of the drop-down door makes it easy to load samples as a compact box furnace One 40 mm hole is opened in the front of the door to insert a 40 mm OD x 30 mm ID alumina tube with flanges as a tube furnace 1800oC grade MoSi2 heating elements inside Power AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required) 2.5KW Note： Power cable included but without the plug. Please install a plug on your own or click the picture left to choose a plug according to your country or your lab requirement Heating Chamber Heating Elements: SiC (4 pcs U shape) Chamber size: 120 x 120 x120 mm Working Temperature: 1700ºC Max. Heating Rate: 0 ~20°C / min (suggestion =< 10°C) Thermal block: Two thermal blocks made of fibrous alumian are included in the front door when used as a box furnace Processing Tube One alumina tube is included with a dimension of 40 OD x 30 ID x 700mm L ( ( OD 1.57" x ID 1.18" x L 23.6" ) Pic. 1 One set of vacuum flange with valves of gas inlet and outlet, KF25 vacuum port, and mechanical vacuum gauge ( Pic. 2) Mx. vacuum 10-2 torr by mechanical pump, and 10-5 torr by turbo-pump Two thermal blocks for alumian are included. Pic.3 Pic. 1 Pic. 2 Pic. 3 Temperature Controller Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm Thermal couple: S type +/- 1 ºC temperature control accuracy Default DB9 PC communication port Laptop & software (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use. Labview-Based Temperature Control System ( MTS01 ) enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. A wireless remote control provides up to 200 meters of operating range. Compliance CE Certified The furnace is ready to pass TUV(UL61010) or CSA certification at an extra cost. Attention Notes For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

Furnace Structure

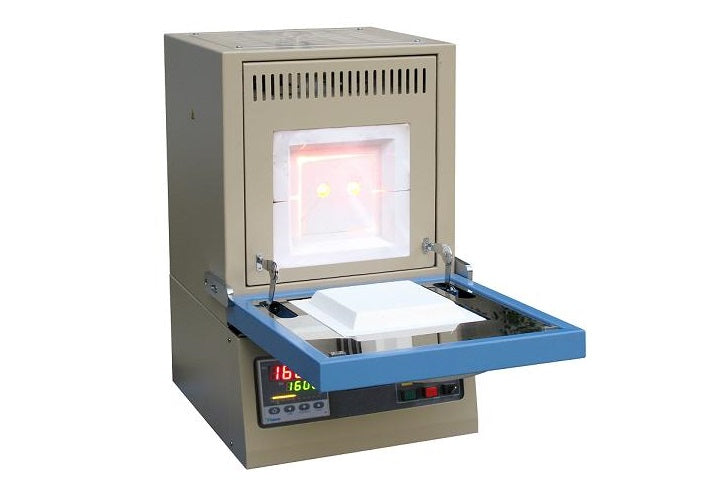

  • The design of the drop-down door makes it easy to load samples as a compact box furnace
  • One 40 mm hole is opened in the front of the door to insert a 40 mm OD x 30 mm ID alumina tube with flanges as a tube furnace
  • 1800oC grade MoSi2 heating elements inside
Power
  • AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required)
  • 2.5KW
  • Note： Power cable included but without the plug. Please install a plug on your own or click the picture left to choose a plug according to your country or your lab requirement
Heating Chamber
  • Heating Elements: SiC (4 pcs U shape)

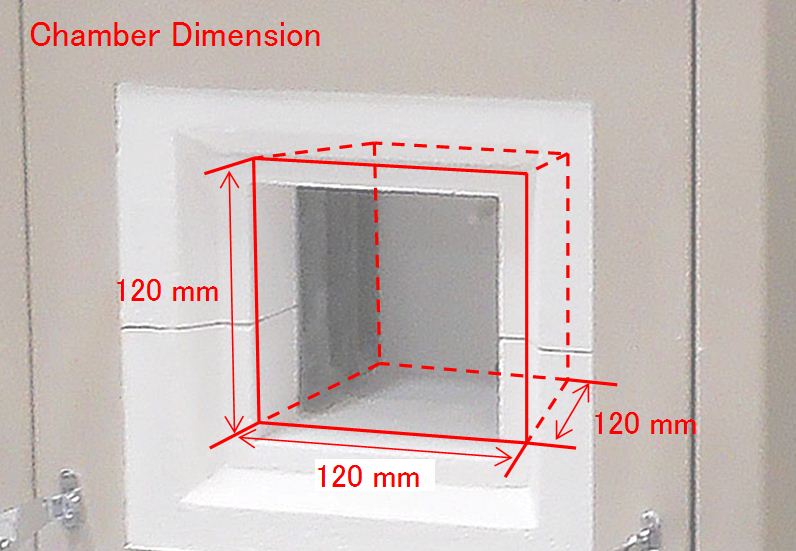

  • Chamber size: 120 x 120 x120 mm
  • Working Temperature: 1700ºC Max.
  • Heating Rate: 0 ~20°C / min (suggestion =< 10°C)
  • Thermal block: Two thermal blocks made of fibrous alumian are included in the front door when used as a box furnace
Processing Tube
  • One alumina tube is included with a dimension of 40 OD x 30 ID x 700mm L ( ( OD 1.57" x ID 1.18" x L 23.6" ) Pic. 1
  • One set of vacuum flange with valves of gas inlet and outlet, KF25 vacuum port, and mechanical vacuum gauge ( Pic. 2)
  • Mx. vacuum 10-2 torr by mechanical pump, and 10-5 torr by turbo-pump
  • Two thermal blocks for alumian are included. Pic.3



Pic. 1  Pic. 2 Pic. 3


Temperature Controller
Laptop & software (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use.
  • Labview-Based Temperature Control System (MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • A wireless remote control provides up to 200 meters of operating range.
Compliance
  • CE Certified
  • The furnace is ready to pass TUV(UL61010) or CSA certification at an extra cost.
Attention Notes
  • For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
