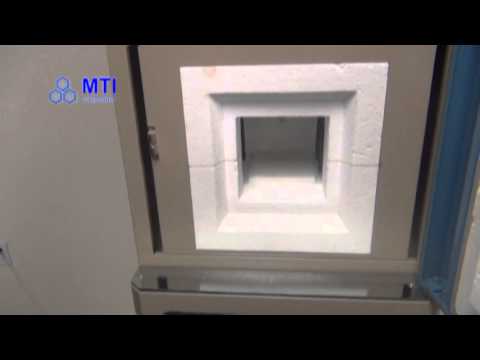

Furnace Structure
|
- Double shell steel case with a cooling fan to keep case surface cool
- High-purity alumina fiber insulation for max. energy saving
- ZrO2 (YSZ) chamber liner for longer service life
|
|
Power
|
AC 208V-240V single phase, 50/60 Hz (50A air breaker required)
9KW
|
|
Standard Working Temperature
|
1750°C (continuous)
|
|
Maximum Working Temperature
|
1800°C (< 1 hours)
|
|
Heating Rate
|
-
RT ~10°C/min ( RT - 1600°C )
-
2 ~5 °C/min (1600 ~ 1800°C )
-
Note: lower heating rate will result in the longer service life of heating elements
|
| Temperature Accuracy |
+/- 1° C |
| Temperature Uniformity |
- +/- 5°C over 120 mm (5") @ 1700°C
- +/- 2°C over 80 mm (3") @ 1700°C
|
| Heating Elements |
8 pcs, Kanthal Super-1900 grade MoSi2 Heating Element - 420mm L,
|
| Thermocouple |
B-Type (Pt-Rh to Pt-Rh) with YSZ tube |
Temperature Controller
|
-
FA-YD518P-AG temperature controller is included.
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- +/- 1 ºC temperature control accuracy
- Default DB9 PC communication port
|
Temperature controller (optional)
|
- MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.
- You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB), and a software CD. Click the pic below to view the full spec of the Eurotherm 3504 temperature controller.
|
Laptop, software(Optional)
|
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
-
Labview-Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters of operating range
|
| Power Cable & Plug |
- 10 feet long 10-3 AWG heavy duty UL approved power cable is included
- Extra length cable can be ordered by clicking the picture below
- The plug is not included. You can order from your local hardware store according to the female plug in your lab, or order from the link below (30A plug)
|
| Compliance |
- CE Certified
- NRTLor CSA certification is available at an extra cost.
|
| Application Notes |
- For preserving the longevity of the furnace, we recommend the heating rate not exceed 10°C /min.
- The cooling rate shall also not exceed 10 °C /min.
- This furnace lacks vacuum sealing, and toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.
- Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
- Please click here to learn how to DIY a gas purging system.
- The refractory block must be inserted before closing the door.
|
