Compact Hybrid Furnace (4 x 4 x 4", 1000C), Muffle/Tube 2-In-1 - KSL1100XSH

Compact Hybrid Furnace (4 x 4 x 4", 1000C), Muffle/Tube 2-In-1 - KSL1100XSH

SKU: ksl1100xsh

Price: RFQ

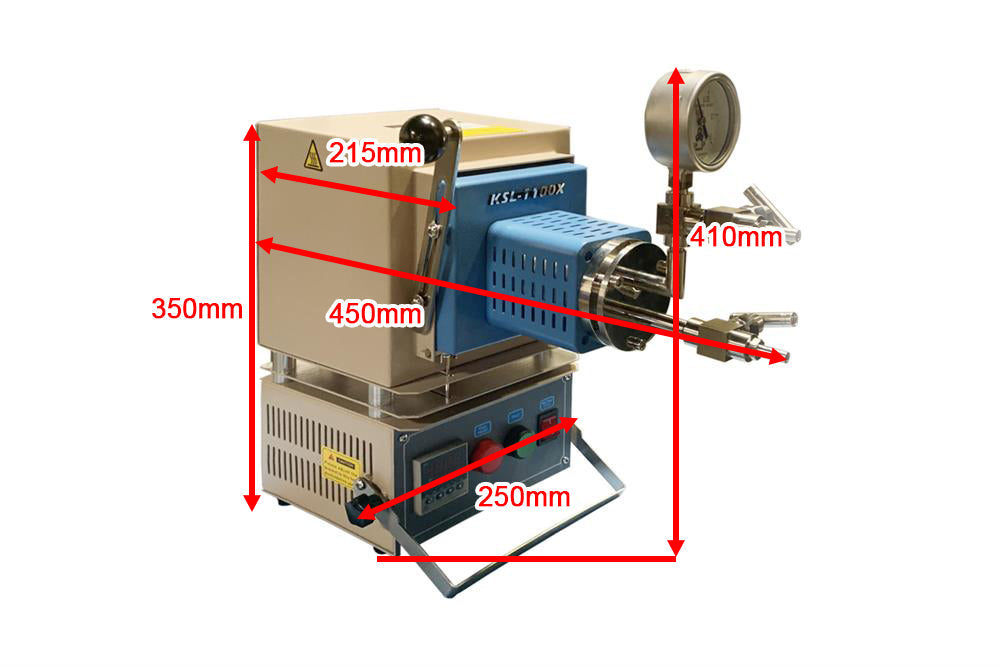

Specifications

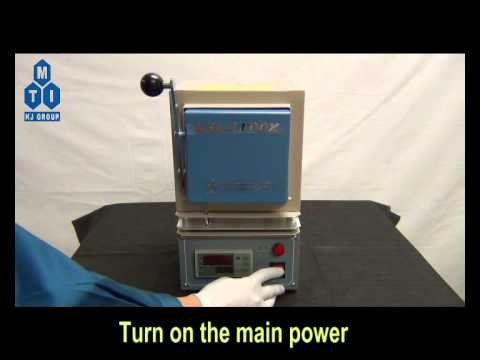

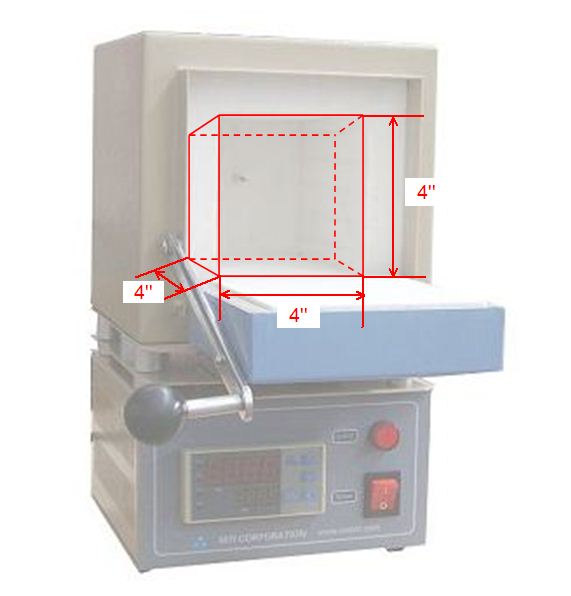

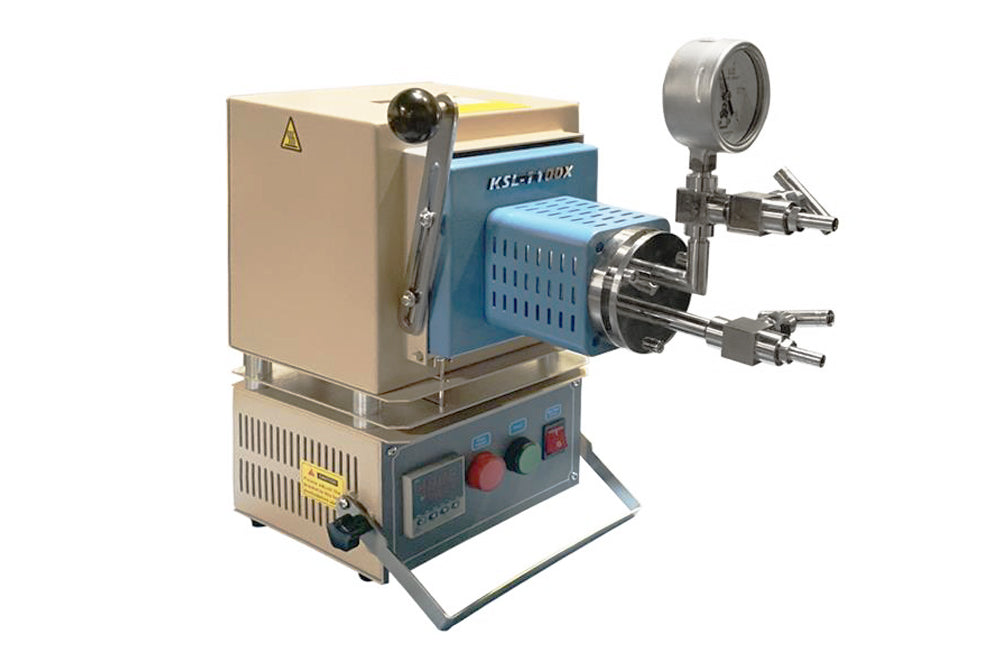

 KSL-1100X-S-H-LD is acompact hybrid furnace that offers a 4"x4"x4" heating chamber, and 1-2" insertable quartz tube with flange. it is an ideal furnace for preparing small samples up to 1000 o C either under vacuum or a controlled atmospherewith maximum energy saving (500 - 700W only). In addition, the compact furnace can be placed into a glove box to sinter samples. SPECIFICATIONS: Model 2" O.D. tube with a mechanical pressure gauge (Optional) 1" O.D. tube with a mechanical pressure gauge Furnace Construction High-purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands Drop-down door for easy sample loading Hybrid Furnace: One-end closed 2" quartz tube, a tube block, and a corresponding flange are included for tube furnace application. A thermal block is included to work as a muffle furnace. Mechanical Pressure gauge CM-GV is included for the pressure measurement High-purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands Drop-down door for easy and safe sample loading Hybrid Furnace: A two-end open 1" quartz tube, a tube block, and corresponding flanges are included for the tube furnace application. The 1" quartz tube penetrates through both ends of the furnace Two thermal blocks are included to work as a standard muffle furnace. Mechanical Pressure gauge CM-GV is included Quartz Tube 2" quartz tube: OD50 × ID43.5 × L230 mm One-end closed 1" quartz tube: OD25 × ID 20.5 × L450 Both ends open Flange Optional: Stainless steel flange with 1/4" gas inlet and thermocouple feedthrough Standard: vacuum sealing assembly with 1/4" gas inlet and outlet. Fittings can be replaced by tube fittings or a KF25 port at an extra cost. Standard: vacuum sealing assembly with mechanical pressure gauge. Fittings may be replaced by tube fitting or KF25 port at an extra cost. Power 110V version: 950 W (Power cord is included) 220V version: 1.2KW (Power cord is not included) Operating Temperature 1000°C max for an hour 900 °C for continuous operation Max. Heating Rate 30 °C /min Temperature Controller PID automatic control and auto-tune function 30 programmable segments for precise control Built-in protection for the over-heating and broken thermocouple Large digital control panel (48 x 96 mm) for easy operation Temperature accuracy: +/- 1 °C Thermocouple: K type Optional Two 8 mm diameter barbed fittings ( gas inlet and outlet) (see pic on the left) at the back of the furnace panelare available at extra cost ($99 for both connectors). Check the option box Note: Self-Installation is required. The open barb holes and threaded holes will be ready Consumables : Heating module and thermal couple can be ordered by clicking underline Compliance CE Certified Application Notes Pic. 1 With its small footprint, low weight, and low power requirement, it can be easily accommodated in a glove box and threat samples under protective gas. Please click pic.1~3 to see details For high vacuum application ( <1e-5 torr), please choose a quartz tube with CF flange as in picture 4 Pic.2 Pic.3 Pic. 4 Warnings Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Please put the furnace into the fume hood for better safety (Click Pic.1) Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

Model

  2" O.D. tube with a mechanical pressure gauge (Optional) 1" O.D. tube with a mechanical pressure gauge

Furnace Construction
  • High-purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands
  • Drop-down door for easy sample loading
  • Hybrid Furnace:
    • One-end closed 2" quartz tube, a tube block, and a corresponding flange are included for tube furnace application.
    • A thermal block is included to work as a muffle furnace.
    • Mechanical Pressure gauge CM-GV is included for the pressure measurement
  •
  • High-purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands
  • Drop-down door for easy and safe sample loading
  • Hybrid Furnace:
    • A two-end open 1" quartz tube, a tube block, and corresponding flanges are included for the tube furnace application.
    • The 1" quartz tube penetrates through both ends of the furnace
    • Two thermal blocks are included to work as a standard muffle furnace.
    • Mechanical Pressure gauge CM-GV is included


Quartz Tube

Flange


Optional:
 Stainless steel flange with 1/4" gas inlet and thermocouple feedthrough
  • Standard: vacuum sealing assembly with 1/4" gas inlet and outlet. Fittings can be replaced by tube fittings or a KF25 port at an extra cost.

Power
  • 110V version: 950 W (Power cord is included)
  • 220V version: 1.2KW (Power cord is not included)

Operating Temperature
  • 1000°C max for an hour
  • 900 °C for continuous operation

Max. Heating Rate
  • 30 °C /min
Temperature Controller
  • PID automatic control and auto-tune function
  • 30 programmable segments for precise control
  • Built-in protection for the over-heating and broken thermocouple
  • Large digital control panel (48 x 96 mm) for easy operation
  • Temperature accuracy: +/- 1 °C
  • Thermocouple: K type

Optional


  • Two 8 mm diameter barbed fittings (gas inlet and outlet) (see pic on the left) at the back of the furnace panelare available at extra cost ($99 for both connectors). Check the option box
  • Note: Self-Installation is required. The open barb holes and threaded holes will be ready
  • Consumables: Heating module and thermal couple can be ordered by clicking underline

Compliance
  • CE Certified

Application Notes


Pic. 1

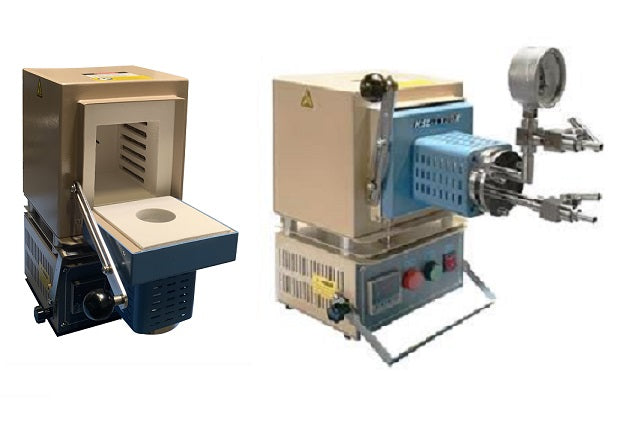

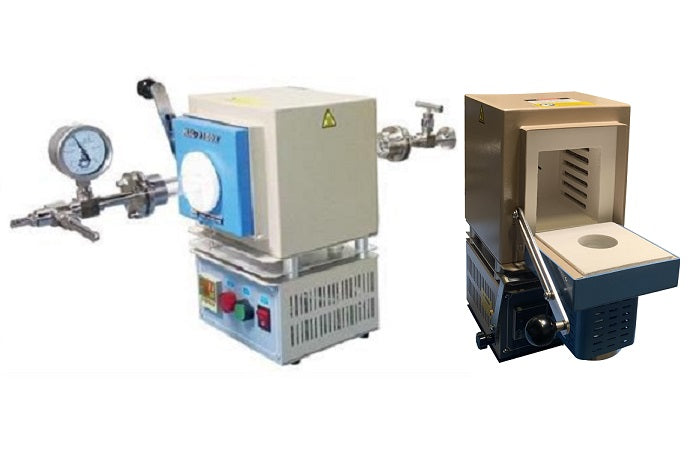

  • With its small footprint, low weight, and low power requirement, it can be easily accommodated in a glove box and threat samples under protective gas. Please click pic.1~3 to see details
  • For high vacuum application ( <1e-5 torr), please choose a quartz tube with CF flange as in picture 4
  •
       Pic.2   Pic.3 Pic. 4

Warnings
  • Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Please put the furnace into the fume hood for better safety (Click Pic.1)
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
