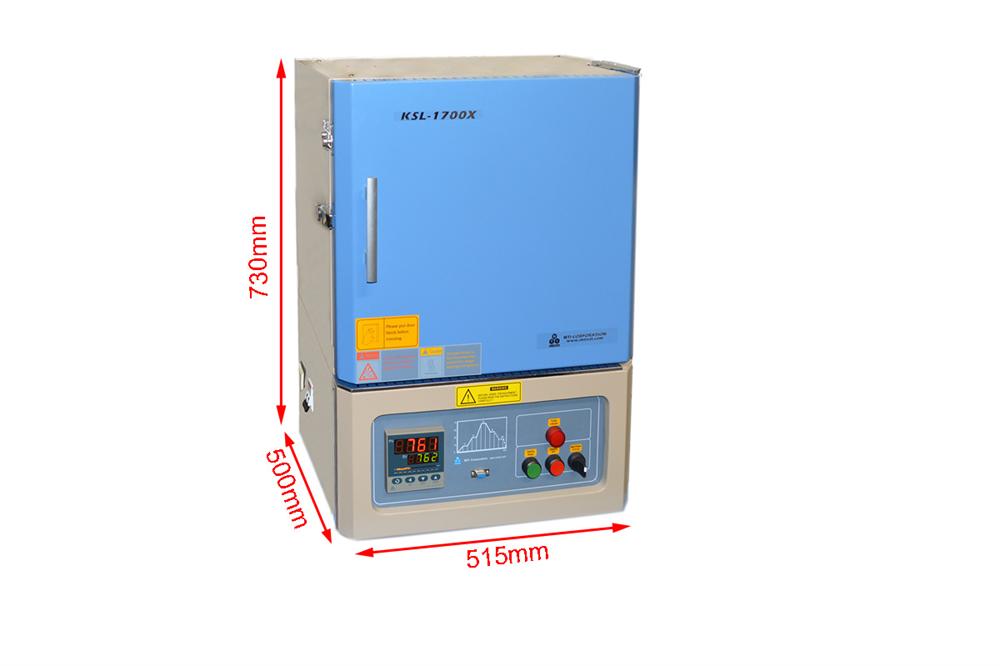

1700C Bench-Top Muffle Furnace, (6"x6"x6", 3.6L) with Temperature Controller - KSL1700XA1
  • 1700C Bench-Top Muffle Furnace, (6"x6"x6", 3.6L) with Temperature Controller - KSL1700XA1
  • 1700C Bench-Top Muffle Furnace, (6"x6"x6", 3.6L) with Temperature Controller - KSL1700XA1
  • 1700C Bench-Top Muffle Furnace, (6"x6"x6", 3.6L) with Temperature Controller - KSL1700XA1
1700C Bench-Top Muffle Furnace, (6"x6"x6", 3.6L) with Temperature Controller - KSL1700XA1

1700C Bench-Top Muffle Furnace, (6"x6"x6", 3.6L) with Temperature Controller - KSL1700XA1

SKU: ksl1700xa1

Price: RFQ

Specifications

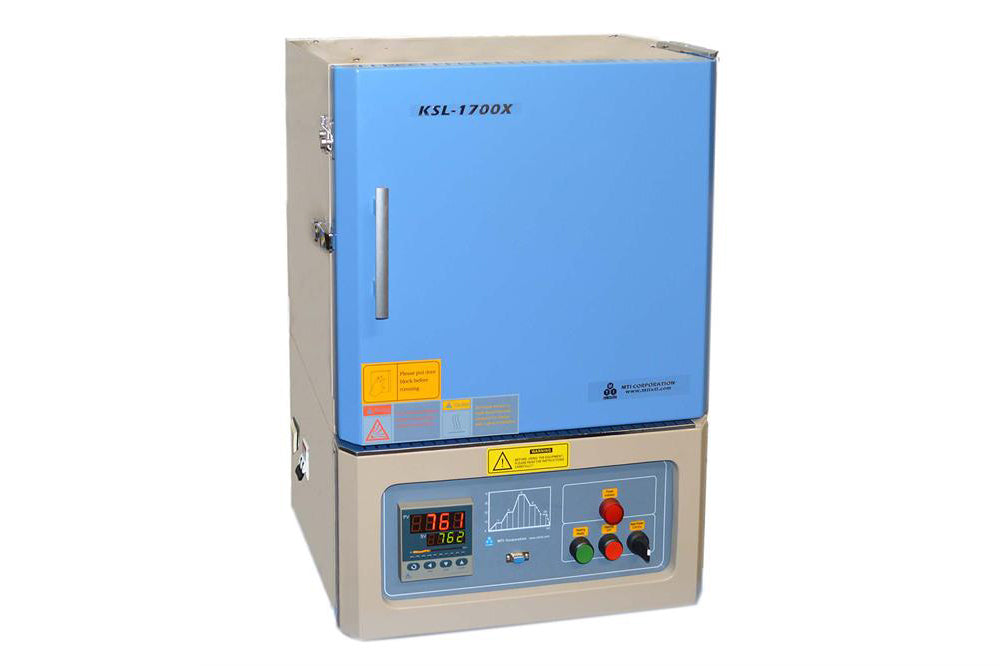

 KSL-1700X-A1 is a bench-top high-temperature muffle furnace. The furnace consists of high-quality alumina fiber insulation and 1800 grade MoSi2 heating elements and it's controlled by high precision SCR (Silicon Controlled Rectifier) and temperature controller with +/-1 °C accuracy and 30 programmable segments up to 1700 °C (3092 °F). It is an ideal tool for materials annealing and sintering in your research laboratory. SPECIFICATIONS Furnace construction Double-layer steel structure with air cooling fan to keep the case's temperature below 60°C High purity alumina fiber insulation for max. energy saving 1760 °C (3200 °F) Hi-Purity Alumina Coating inside the chamber for longer service life Temperature Controller FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port Eurotherm 3000 programmable controller with software is optional with +/-0.1 oC accuracy Temperature controller (optional) MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detail information about the MTS02-Y software kit. You may upgrade the temperature controller to the Eurotherm Controller to achieve 0.1ºC accuracy which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic left to view the full spec of the Eurotherm 3504 temperature controller. Laptop & software (Optional) Brand new laptop with Microsoft Windows 11 Labview Based Temperature Control System ( MTS01 ) enables the user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces. Standard Working Temperature 1600° C or 2912° F (continuous) Maximum Working Temperature 1700° C or 3092° F (< 3 hours) Heating Rate 0 ~20 °C/min (≤10°C/min recommended) Temperature Accuracy +/- 1° C Temperature Uniformity +/- 5°C over 120 mm (5") @ 1700°C +/- 2 ° C over 80 mm (3") @ 1700 ° C Heating Element Super 1800 grade MoSi2 Heating Elements (30 x 300 mm) (4 pcs) Thermocouple B-Type (Pt-Rh to Pt-Rh) with Alumina tube Working Voltage AC 208V-240V single phase, 50/60 Hz (35A air breaker required) Note: Plug is not included, and it is suggested you use NEMA L6-30P plug for AC 208~240V) Max. Power 4 KW Compliance CE Certified NRTL or CSA certification is available upon request at an extra cost Application Notes Warning : MoSi2 heating element is used in the high temperature under the oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature between 400 °C and 700 °C for a long time, otherwise, the element will be cremated under the strong oxidizing function in the low temperature. Please click here to learn how to DIY gas purging system STANDARD PACKAGE P/N Description Quantity Click pic to order extra KSL-1700X-UL KSL-1700X-UL High-Temperature Muffle Furnace 1 set KSL7-01 Super 1800 grade MoSi2 Heating Elements (30 x 300mm), 4 pcs installed in furnace 4 pcs KSL7-02 B-Type Pt-Rh to Pt-Rh Thermocouples with Alumina Protection Tube 1 set KSL7-03 Al2O3 Sample Plate ($95.00/ea) 1 pcs KSL7-04 Al2O3 Furnace Door Block ($180.00/ea) 1 pcs KSL7-06 Crucible Clip ($25.00/ea) 1 pair KSL7-07 Operation Manual 1 set

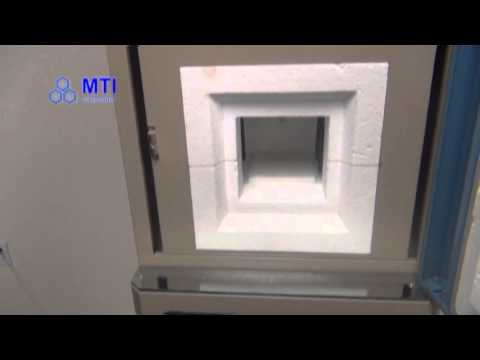

Furnace construction
  • Double-layer steel structure with air cooling fan to keep the case's temperature below 60°C
  • High purity alumina fiber insulation for max. energy saving
  • 1760 °C (3200 °F) Hi-Purity Alumina Coating inside the chamber for longer service life

Temperature Controller
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
  • Eurotherm 3000 programmable controller with software is optional with +/-0.1 oC accuracy
Temperature controller (optional)
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detail information about the MTS02-Y software kit.
  • You may upgrade the temperature controller to the Eurotherm Controller to achieve 0.1ºC accuracy which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic left to view the full spec of the Eurotherm 3504 temperature controller.
Laptop & software (Optional)
  • Brand new laptop with Microsoft Windows 11
  • Labview Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.

Standard Working Temperature

1600° C or 2912° F (continuous)

Maximum Working Temperature

1700° C or 3092° F (< 3 hours)

Heating Rate

0 ~20 °C/min (≤10°C/min recommended)

Temperature Accuracy

+/- 1° C


Temperature Uniformity
  • +/- 5°C over 120 mm (5") @ 1700°C
  • +/- 2°C over 80 mm (3") @ 1700°C

Heating Element

Super 1800 grade MoSi2 Heating Elements (30 x 300 mm) (4 pcs)

Thermocouple

B-Type (Pt-Rh to Pt-Rh) with Alumina tube

Working Voltage

AC 208V-240V single phase, 50/60 Hz (35A air breaker required)

Note: Plug is not included, and it is suggested you use NEMA L6-30P plug for AC 208~240V)

Max. Power

4 KW
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost


Application Notes
  • Warning: MoSi2 heating element is used in the high temperature under the oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature between 400 °C and 700 °C for a long time, otherwise, the element will be cremated under the strong oxidizing function in the low temperature.
  • Please click here to learn how to DIY gas purging system
,

P/N

Description

 Quantity

 Click pic to order extra
KSL-1700X-UL KSL-1700X-UL High-Temperature Muffle Furnace  1 set

KSL7-01

Super 1800 grade MoSi2 Heating Elements (30 x 300mm), 4 pcs installed in furnace

 4 pcs

KSL7-02

B-Type Pt-Rh to Pt-Rh Thermocouples with Alumina Protection Tube

 1 set

KSL7-03

Al2O3 Sample Plate ($95.00/ea)

 1 pcs

KSL7-04

Al2O3 Furnace Door Block ($180.00/ea)

 1 pcs

KSL7-06

Crucible Clip ($25.00/ea)

 1 pair

KSL7-07

Operation Manual

 1 set
