300°C or 500°C Convection Oven (2.6 W × 1.3 D× 1.4 H m, 4732 L) - KSL500X4700
  • 300°C or 500°C Convection Oven (2.6 W × 1.3 D× 1.4 H m, 4732 L) - KSL500X4700
  • 300°C or 500°C Convection Oven (2.6 W × 1.3 D× 1.4 H m, 4732 L) - KSL500X4700
  • 300°C or 500°C Convection Oven (2.6 W × 1.3 D× 1.4 H m, 4732 L) - KSL500X4700
300°C or 500°C Convection Oven (2.6 W × 1.3 D× 1.4 H m, 4732 L) - KSL500X4700

300°C or 500°C Convection Oven (2.6 W × 1.3 D× 1.4 H m, 4732 L) - KSL500X4700

SKU: ksl500x4700

Price: RFQ

Specifications

 KSL500X4700 / KSL300X4700 is a large-capacity thermal cycling convection oven (4732 L) rated for 500 °C / 300 °C operation, it features air convection and programmable temperature control to ensure uniform heating performance. This cost-effective unit is well-suited for material drying, debinding, heat treatment, and storage applications. SPECIFICATIONS: Power 480 or 400 VAC, 3 phases, 50/60 Hz, 50 kW Working Temperature RT - 300  °C (optional 1) RT - 500  °C (optional 2) Heating Rate <7°C/min (0~300°C); <4°C/min (300~400°C); <0.5°C/min ( 400 - 500°C) Temperature Uniformity ± 4°C Temperature Controller 30-segment PID programmable digital temperature controller +/- 1°C accuracy PID auto-tune function Over heating and broken thermocouple interlocks RS485 PC communication is available at an extra cost. Chamber Stainless steel interior chamber Fiber alumina packing for door seals Refractory thermal insulation for the heating chamber Two thermal convection fans at the ceiling Chamber Dimensions : 2,600 mm (L) × 1,300 mm (W) × 1,400 mm (H) Chamber Volume : 4,732 L Maximum Load Capacity : 1 T Thermocouple K type Compliance CE Certificate, NRTL ready NRTL or CSA Field Certificate is available upon request at extra cost.

Power
  • 480 or 400 VAC, 3 phases, 50/60 Hz, 50 kW
Working Temperature
  • RT - 300  °C (optional 1)
  • RT - 500  °C (optional 2)
Heating Rate
  • <7°C/min (0~300°C);
  • <4°C/min (300~400°C);
  • <0.5°C/min ( 400 - 500°C)
Temperature Uniformity
  • ± 4°C
Temperature Controller
  • 30-segment PID programmable digital temperature controller
  • +/- 1°C accuracy
  • PID auto-tune function
  • Over heating and broken thermocouple interlocks
  • RS485 PC communication is available at an extra cost.

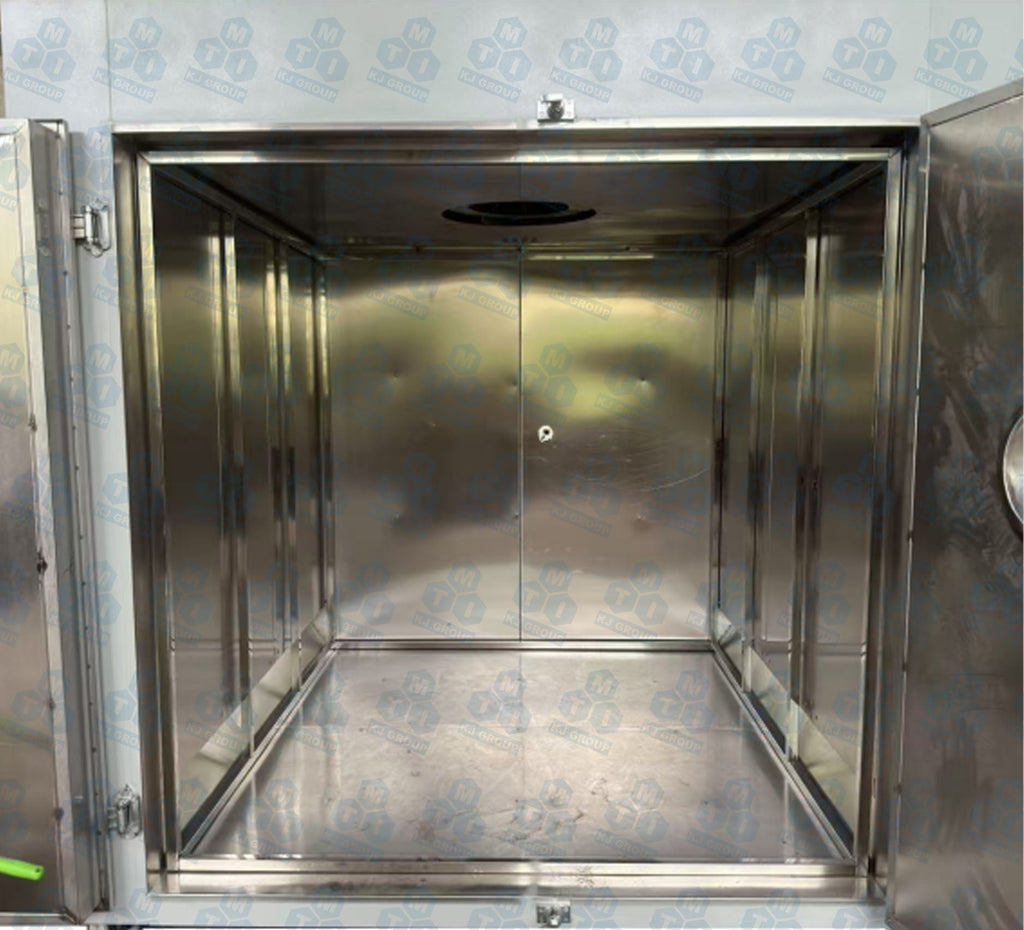

Chamber
  • Stainless steel interior chamber
  • Fiber alumina packing for door seals
  • Refractory thermal insulation for the heating chamber
  • Two thermal convection fans at the ceiling
  • Chamber Dimensions: 2,600 mm (L) × 1,300 mm (W) × 1,400 mm (H)
  • Chamber Volume: 4,732 L
  • Maximum Load Capacity: 1 T
Thermocouple
  • K type
Compliance
  • CE Certificate, NRTL ready
  • NRTL or CSA Field Certificate is available upon request at extra cost.
