1350°C Mini Split Furnace with Programmable Controller for Hi-Temperature Tensile Machine - MSF-1350-60
  • 1350°C Mini Split Furnace with Programmable Controller for Hi-Temperature Tensile Machine - MSF-1350-60
  • 1350°C Mini Split Furnace with Programmable Controller for Hi-Temperature Tensile Machine - MSF-1350-60
  • 1350°C Mini Split Furnace with Programmable Controller for Hi-Temperature Tensile Machine - MSF-1350-60
1350°C Mini Split Furnace with Programmable Controller for Hi-Temperature Tensile Machine - MSF-1350-60

1350°C Mini Split Furnace with Programmable Controller for Hi-Temperature Tensile Machine - MSF-1350-60

SKU: msf-1350-60

Price: RFQ

Specifications

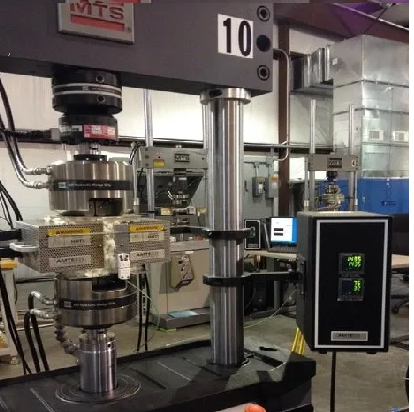

 MSF-1350-60 is a mini split furnace with a D25 x H60 mm heating zone up to 1350°C. It is designed for heating a sample in a tensile or creep testing machine. SPECIFICATIONS: Furnace Structure High-quality 1700ºC alumina fiber inner insulator and double-layer steel outer layer with air cooling fan to keep case temperature below 60ºC Hinged type splitable to insert sample at ease Dimensions Heating chamber: 38 mm Diameter x 60 mm Height Overall size: L 302 mm x W 218 mm x H 129 mm Please click the picture left to see the details Power AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required) 1,5 KW Note： Power cable included but without the plug. Please install a plug on your own or click the picture left to choose a plug according to your country or your lab requirement Standard Working Temperature 1350ºC ( Continuous ) Max. Working Temperature 1400ºC (< 60 minutes) Heating Rate 0 ~20°C / min (suggestion =< 10°C) Temperature Accuracy +/- 1ºC Heating Elements MoSi2 ( 2 pcs U shape) Thermocouple B type Temperature Controller Two digital temperature controllers are built into a separate control box SCR and PID control with auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port Laptop & software (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview-Based Temperature Control System ( EQ-MTS01 ) enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. Net Weight 65 kg Shipping Dimensions 40" x 40" x45" Shipping Weight 185 lbs Compliance CE Certified The furnace is ready to pass TUV(UL61010) or CSA certification at an extra cost.

Furnace Structure
  • High-quality 1700ºC alumina fiber inner insulator and double-layer steel outer layer with air cooling fan to keep case temperature below 60ºC

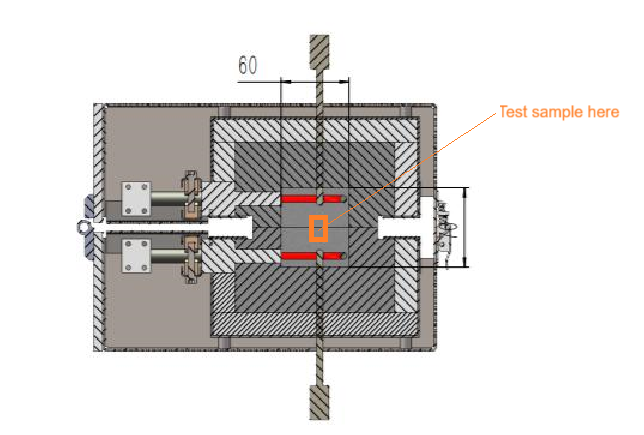

  • Hinged type splitable to insert sample at ease

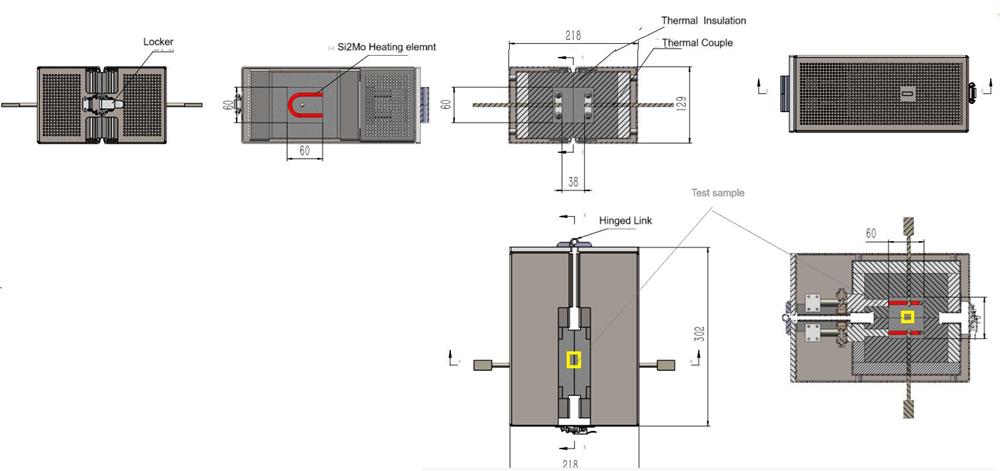

Dimensions
  • Heating chamber: 38 mm Diameter x 60 mm Height
  • Overall size: L 302 mm x W 218 mm x H 129 mm
    Please click the picture left to see the details
Power
  • AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required)
  • 1,5 KW
  • Note： Power cable included but without the plug. Please install a plug on your own or click the picture left to choose a plug according to your country or your lab requirement
Standard Working Temperature 1350ºC ( Continuous )
Max. Working Temperature 1400ºC (< 60 minutes)
Heating Rate 0 ~20°C / min (suggestion =< 10°C)
Temperature Accuracy +/- 1ºC
Heating Elements MoSi2 ( 2 pcs U shape)
Thermocouple B type

Temperature Controller
  • Two digital temperature controllers are built into a separate control box
  • SCR and PID control with auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
Laptop & software (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview-Based Temperature Control System (EQ-MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
Net Weight
65 kg
Shipping Dimensions
 40" x 40" x45"
Shipping Weight
 185 lbs
Compliance
  • CE Certified
  • The furnace is ready to pass TUV(UL61010) or CSA certification at an extra cost.
