4 Liters Precision Slurry Feeder with PROGRESSIVE CAVITY PUMP for R2R Slot Die Coating - MSK-156
  • 4 Liters Precision Slurry Feeder with PROGRESSIVE CAVITY PUMP for R2R Slot Die Coating - MSK-156
  • 4 Liters Precision Slurry Feeder with PROGRESSIVE CAVITY PUMP for R2R Slot Die Coating - MSK-156
  • 4 Liters Precision Slurry Feeder with PROGRESSIVE CAVITY PUMP for R2R Slot Die Coating - MSK-156
  • 4 Liters Precision Slurry Feeder with PROGRESSIVE CAVITY PUMP for R2R Slot Die Coating - MSK-156
4 Liters Precision Slurry Feeder with PROGRESSIVE CAVITY PUMP for R2R Slot Die Coating - MSK-156

4 Liters Precision Slurry Feeder with PROGRESSIVE CAVITY PUMP for R2R Slot Die Coating - MSK-156

SKU: msk-156

Price: RFQ

Specifications

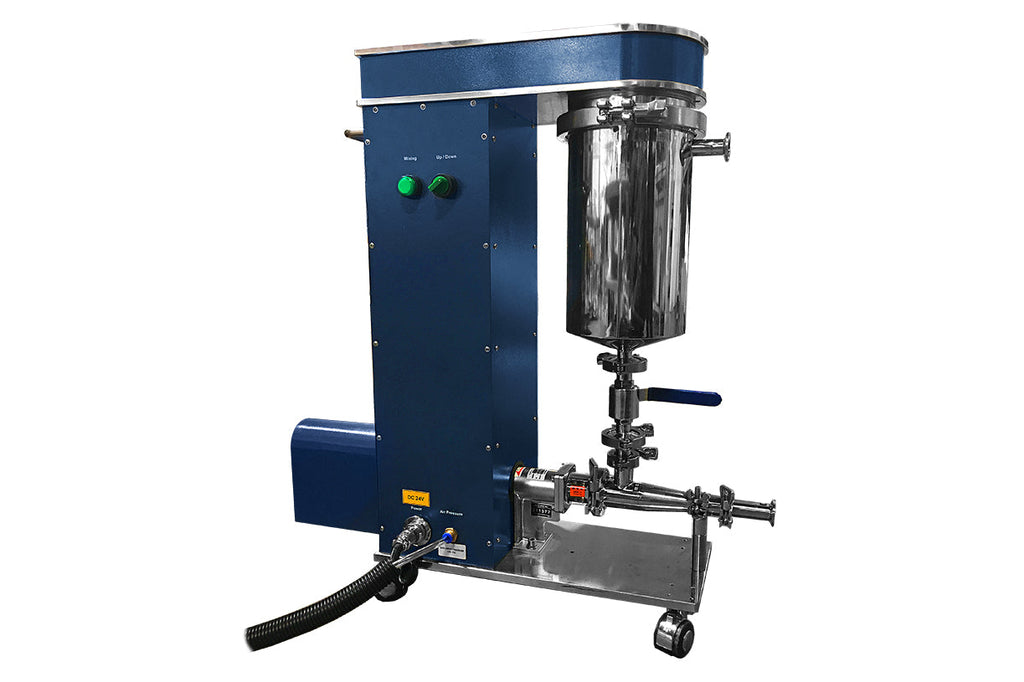

 MSK-156 is an automatic slurry feeder with a screw pump and stainless steel reservoir. It is designed for use with MTI Roll-to-Roll web coating system MSK-AFA-DS300 for the Li-ion battery electrode coating process. Features Screw pump for high viscosity slurry feeding. Pneumatic airtight slurry reservoir. Corrosion-resistant pipeline compatible with any acidic, alkaline slurries Power Requirement AC 220V +/- 10% Single phase 500W Max. Compressed Gas Requirement 0.5~0.8MPa compress gas is required. Feeding rate 5.2 to 186 mL/min, adjustable Stirring Speed: 27RPM Max Slurry Reservoir 4L Volume, 304 stainless steel The stator is made of EPDM. The rotor is made of SUS316 NMP Compatible It is compatible with NMP Application Note This slurry feeder is meant to be used with roll-to-roll web coaters MSK-AFA-DS300. Please contact us to check its compatibility with other products. Please click pic 1 below to see the vacuum mixing for roll to roll coating flow chart

Features
  • Screw pump for high viscosity slurry feeding.
  • Pneumatic airtight slurry reservoir.
  • Corrosion-resistant pipeline compatible with any acidic, alkaline slurries

Power Requirement
  • AC 220V +/- 10% Single phase
  • 500W Max.

Compressed Gas Requirement
  • 0.5~0.8MPa compress gas is required.

Feeding rate
  • 5.2 to 186 mL/min, adjustable
  • Stirring Speed: 27RPM Max

Slurry Reservoir
  • 4L Volume, 304 stainless steel
  • The stator is made of EPDM.
  • The rotor is made of SUS316

NMP Compatible
  • It is compatible with NMP

Application Note

 This slurry feeder is meant to be used with roll-to-roll web coaters MSK-AFA-DS300.
Please contact us to check its compatibility with other products.
Please click pic 1 below to see the vacuum mixing for roll to roll coating flow chart
