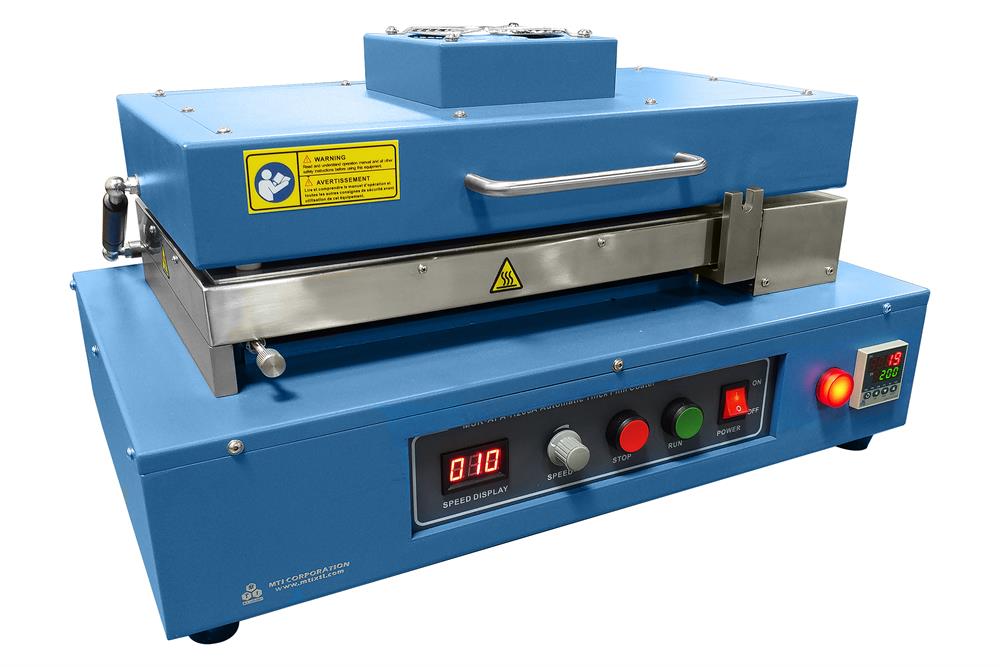

250°C Tape Casting Coater with Heated Vacuum Bed (250Wx400L mm) & Doctor Blade - MSK-AFA-H200A
  • 250°C Tape Casting Coater with Heated Vacuum Bed (250Wx400L mm) & Doctor Blade - MSK-AFA-H200A
  • 250°C Tape Casting Coater with Heated Vacuum Bed (250Wx400L mm) & Doctor Blade - MSK-AFA-H200A
  • 250°C Tape Casting Coater with Heated Vacuum Bed (250Wx400L mm) & Doctor Blade - MSK-AFA-H200A
250°C Tape Casting Coater with Heated Vacuum Bed (250Wx400L mm) & Doctor Blade - MSK-AFA-H200A

250°C Tape Casting Coater with Heated Vacuum Bed (250Wx400L mm) & Doctor Blade - MSK-AFA-H200A

SKU: msk-afa-h200a

Price: RFQ

Specifications

 MSK-AFA- H200A is an NRTL standard Compact Tape Casting Coater with a vacuum chuck hotplate up to 250ºC and an active carbon filter on the top cover to protect the lab environment. It is an excellent tool to make high-temperature polymer coating or conductive ceramic film on various substrates. (upgraded to 250°C since Dec. 3, 2020) SPECIFICATIONS: Power 110 V or 220V AC 50/60Hz (Please select from the options bar) 1500W Heatable Vacuum Platform Vacuum chuck made of aluminum alloy with the micro-size holes Vacuum chuck Area: 400mm (L) x 250mm (W) (16"L x 10"W ) Coating area: 300mm(L) x 200mm(W) Heating elements are installed inside the chuck which can reach 250ºC Max. Precision digital temperature controller with +/- 1ºC accuracy Vacuum Pump (Optional) A vacuum pump is required, but not included. Please order CE Compliance 120L/min Oilless Vacuum Pump Film Applicator 180 mm width applicator with micrometers for adjustment of coating thickness. (Pic. 1) 24VDC motor driving mechanism, which can be used under Ar gas glovebox. Optional hybrid film applicator with a doctor blade and a slot die is also available at an extra cost (Pic. 2) Accuracy of Film thickness +/- 0.01mm Traverse Speed & Distance Travel Speed: 1 - 90mm/sec variable Travel distance: 0 - 300 mm adjustable Top Cover and Filter An active carbon filter and venting fan are installed on the top cover The filter will remove organic vapor to make the lab environment safe & clean Application Notes Machine Dimensions Click the Pic to see details Compliance CE certified NRTL or CSA certification is available upon request at the extra cost

Power
  • 110 V or 220V AC 50/60Hz (Please select from the options bar)
  • 1500W
Heatable Vacuum Platform
  • Vacuum chuck made of aluminum alloy with the micro-size holes
  • Vacuum chuck Area: 400mm (L) x 250mm (W) (16"L x 10"W )
  • Coating area: 300mm(L) x 200mm(W)
  • Heating elements are installed inside the chuck which can reach 250ºC Max.
  • Precision digital temperature controller with +/- 1ºC accuracy
Vacuum Pump (Optional)
Film Applicator
  • 180 mm width applicator with micrometers for adjustment of coating thickness. (Pic. 1)
  • 24VDC motor driving mechanism, which can be used under Ar gas glovebox.
  • Optional hybrid film applicator with a doctor blade and a slot die is also available at an extra cost (Pic. 2)
Accuracy of Film thickness
  • +/- 0.01mm
Traverse Speed & Distance
  • Travel Speed: 1 - 90mm/sec variable
  • Travel distance: 0 - 300 mm adjustable

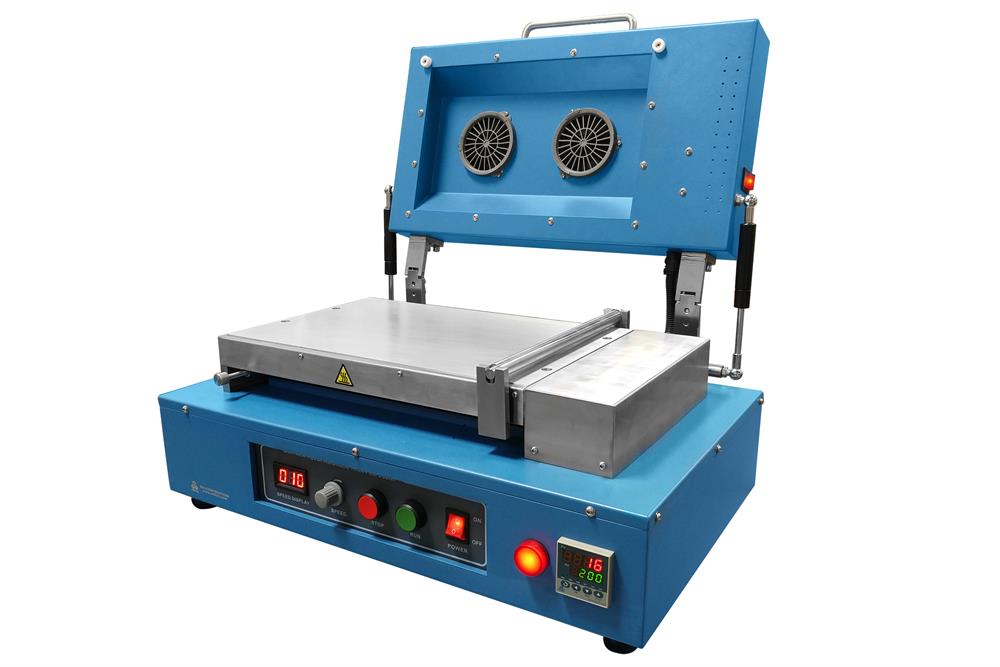

Top Cover and Filter
  • An active carbon filter and venting fan are installed on the top cover
  • The filter will remove organic vapor to make the lab environment safe & clean
Application Notes



Machine Dimensions
Click the Pic to see details
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
