300mm Width Slot-die Coater w/ SS316 Heating Vacuum Chuck (150°C, 500 L x 400mm W) - MSK-AFA-H300SD
  • 300mm Width Slot-die Coater w/ SS316 Heating Vacuum Chuck (150°C, 500 L x 400mm W) - MSK-AFA-H300SD
  • 300mm Width Slot-die Coater w/ SS316 Heating Vacuum Chuck (150°C, 500 L x 400mm W) - MSK-AFA-H300SD
  • 300mm Width Slot-die Coater w/ SS316 Heating Vacuum Chuck (150°C, 500 L x 400mm W) - MSK-AFA-H300SD
  • 300mm Width Slot-die Coater w/ SS316 Heating Vacuum Chuck (150°C, 500 L x 400mm W) - MSK-AFA-H300SD
300mm Width Slot-die Coater w/ SS316 Heating Vacuum Chuck (150°C, 500 L x 400mm W) - MSK-AFA-H300SD

300mm Width Slot-die Coater w/ SS316 Heating Vacuum Chuck (150°C, 500 L x 400mm W) - MSK-AFA-H300SD

SKU: msk-afa-h500sd

Price: RFQ

Specifications

 The MSK-AFA-H300SD is a flat slot-die coater that can coat films up to 400 mm L x 380 mm W from 5 to 100 microns thickness. It has a 500mm L x 400mm W vacuum chuck and bottom heater, and a special slot-die fixture with three precision rollers on the bottom to make slot-die coating uniform at low cost. This makes it an excellent tool for fabricating thin films for perovskite solar cells, fuel cells, and batteries. The item number has been updated from MSK-SD-300 since February 2022 SPECIFICATIONS Working Power 110 V or 208 - 240V AC selectable 50/60Hz 1.5KW Film coater Vacuum chuck made of SS316 alloy with < 1.0 mm hole Vacuum Chuck Dimensions: 500 mm (L) x 400mm (W) (19.7 “L x 15.7" W) The chuck is heated up to 150ºC by a digital temperature controller with +/- 1ºC accuracy Traverse Speed: 5 - 100 mm/sec variable Traverse Length: 10 - 400 mm adjustable by the Adjustable Position Switch The vacuum pump is not included, please click the picture to the left for ordering. Slot Die Fixture A slot-die with 300 mm width is installed on a moveable fixture that has three precision rollers on the bottom (Pic. 1) The pushing rod will push forward the slot-die head to coat the slurry on the substrate smoothly without touching the substrate The gap between the coating blade and the substrate plate is adjustable with +/- 1-micron accuracy via dual digital micrometers (Pic. 2) An optional multi-slid-die fixture is available upon request upon request at the extra cost. (Pic. 3-4) Pic. 1 Pic. 2 Pic. 3 Pic. 4 Syringe Pump ( Optional ) Digital Controlled Syringe Pump Holds syringes up to 60 mL Remembers previous settings on power-up Pumping rate: 25 mL/hr with a 60mL Syringe Infuses Only. Does not withdraw the syringe Please click the picture to the left for ordering Options In order to achieve better coating by the slot die, slurry's Viscosity and dispersion is very important. Please click picture 1 to order the Viscosity meter and dispersing machine (Pic. 2) and find the best parameter for your coating Pic. 1 Compliance CE certified NRTL or CSA certification is available upon request at the extra cost

Working Power
  • 110 V or 208 - 240V AC selectable
  • 50/60Hz
  • 1.5KW
Film coater



  • Vacuum chuck made of SS316 alloy with < 1.0 mm hole

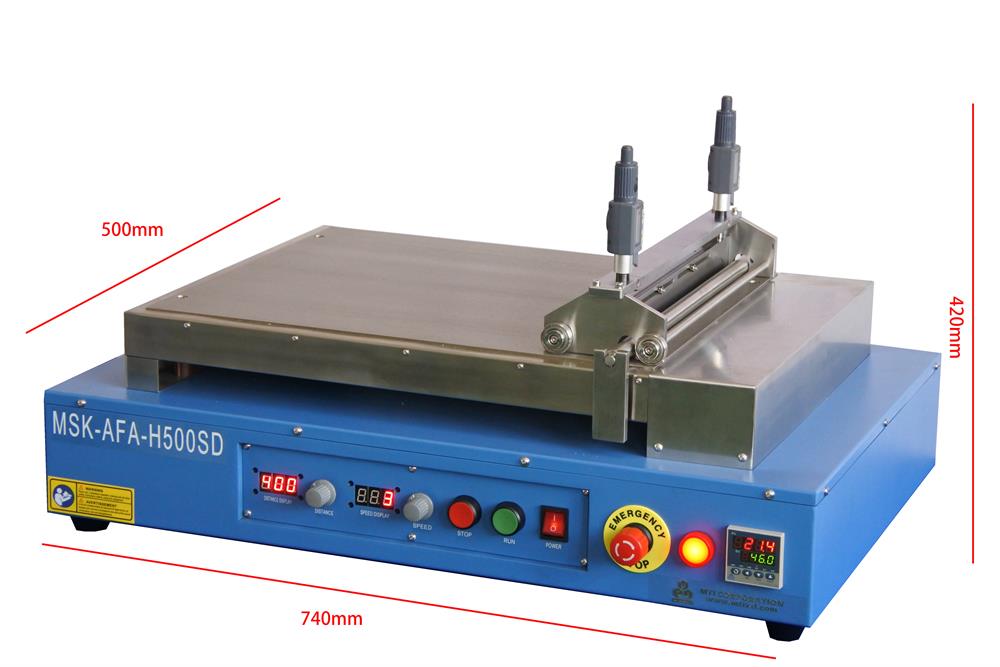

    • Vacuum Chuck Dimensions: 500 mm (L) x 400mm (W) (19.7 “L x 15.7" W)
    • The chuck is heated up to 150ºC by a digital temperature controller with +/- 1ºC accuracy
  • Traverse Speed: 5 - 100 mm/sec variable
  • Traverse Length: 10 - 400 mm adjustable by the Adjustable Position Switch
  • The vacuum pump is not included, please click the picture to the left for ordering.
Slot Die Fixture
  • A slot-die with 300 mm width is installed on a moveable fixture that has three precision rollers on the bottom (Pic. 1)
  • The pushing rod will push forward the slot-die head to coat the slurry on the substrate smoothly without touching the substrate
  • The gap between the coating blade and the substrate plate is adjustable with +/- 1-micron accuracy via dual digital micrometers (Pic. 2)
  • An optional multi-slid-die fixture is available upon request upon request at the extra cost. (Pic. 3-4)

Pic. 4

Syringe Pump (Optional)
  • Digital Controlled Syringe Pump
  • Holds syringes up to 60 mL
  • Remembers previous settings on power-up
  • Pumping rate: 25 mL/hr with a 60mL Syringe
  • Infuses Only. Does not withdraw the syringe
  • Please click the picture to the left for ordering

Options
  • In order to achieve better coating by the slot die, slurry's Viscosity and dispersion is very important.
  • Please click picture 1 to order the Viscosity meter and dispersing machine (Pic. 2) and find the best parameter for your coating
Pic. 1
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
