 MSK-AFA-III-HDS-150 is an economic hybrid film coater with a vacuum chuck and bottom heater, which can make tape coating and slot-die coating via a special hybrid film applicator up to 320mm L x 100 - 150 mm W from 5 - 100 microns. . It is an excellent tool to research films of perovskite solar cells, fuel cell proton exchange membrane, and the battery electrodes. SPECIFICATIONS Working Power 110 V or 208 - 240V AC selectable 50/60Hz 1000W Film coater Vacuum chuck made of Aluminum alloy with < 1.0 mm hole Vacuum Chuck Dimensions: 200 mm(W) x 365 mm(L) (8"W x 14"L) The chuck is heated up to 120C by a digital temperature controller with +/- 1ºC accuracy One vacuum pump is required, but not included please order separately. One glass plate is included to coat slurry on a porous substrate, which can be sucked by vacuum chuck optional) Moving Speed: One pushing bar is included for moving film applicator at speed of 10 - 100 mm/sec variable Moving Length: 10 - 350 mm adjustable by Adjustable Position Switch Hybrid Coating Head Film coating head consists of one fixed 150 mm width doctor blade and one 100 mm width removable slot die head. The gap between the coating blade and the substrate plate is adjustable with +/- 1-micron accuracy via dual digital micrometers. Doctor blade: 150 mm width for minimum thickness of 0.010 mm film Slot die: 100 mm width for minimum thickness of 0.005 mm film Click the picture below right to order a spare slot die head with various width Digital Syringe Pump Digital syringe pump with a easy to use control panel screen is included for slot-die coating Holds small or big syringes up to 200 mL and remembers previous settings on power-up Pumping rate: 1.963μL/min with a 10 μL syringe and 294.524mL/min with a 200mL syringe The movement speed of the plunger: 15cm/min (Max) 0.0001cm/min (Min) Multiple operating modes: Infuse only, Withdraw only, Infuse/Withdraw, Withdraw/Infuse, Continuation Customer can also consider the economic digital syringe pump 300SP-LD Options In order to achieve better coating by the slot die, slurry's Viscosity and dispersion are very important. Please click picture 1 to order the Viscosity meter and dispersing machine (Pic. 1) and find the best parameter for your coating (Pic.1) Multi-channels heatable syringe pump (Pic. 2) Pic. 1 Pic. 2 Compliance CE certified NRTL or CSA certification is available upon request at an extra cost

Working Power
  • 110 V or 208 - 240V AC selectable
  • 50/60Hz
  • 1000W
Film coater
  • Vacuum chuck made of Aluminum alloy with < 1.0 mm hole
    • Vacuum Chuck Dimensions: 200 mm(W) x 365 mm(L) (8"W x 14"L)
    • The chuck is heated up to 120C by a digital temperature controller with +/- 1ºC accuracy
    • One vacuum pump is required, but not included please order separately.
  • One glass plate is included to coat slurry on a porous substrate, which can be sucked by vacuum chuck
    •      Tempered Glass Plate for Manual Tape Casting by Doctor Blade (362mm L x 200mm W x 5 mm T) - EQ-TGlass
      optional)
  • Moving Speed: One pushing bar is included for moving film applicator at speed of 10 - 100 mm/sec variable
  • Moving Length: 10 - 350 mm adjustable by Adjustable Position Switch

Hybrid Coating Head

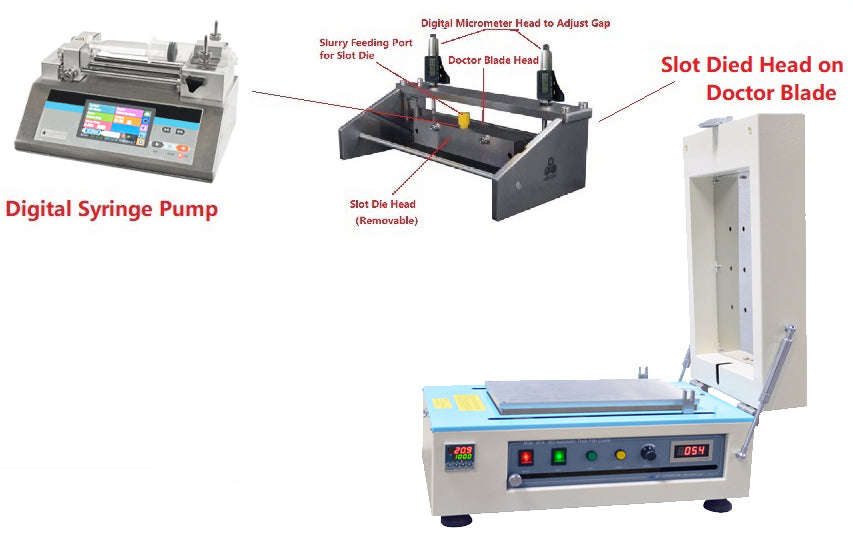

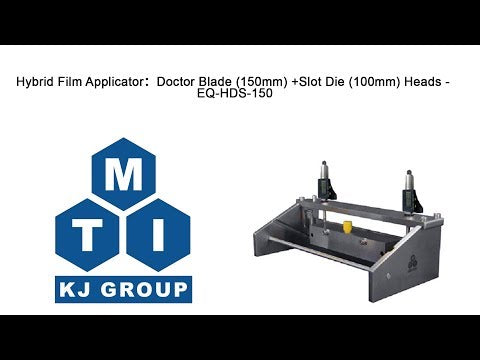

Hybrid Film Applicator: Doctor Blade (150mm) + Slot Die Heads (100mm, SS or PEEK) - EQ-HDS-150D
  • Film coating head consists of one fixed 150 mm width doctor blade and one 100 mm width removable slot die head.
  • The gap between the coating blade and the substrate plate is adjustable with +/- 1-micron accuracy via dual digital micrometers.
    • Doctor blade: 150 mm width for minimum thickness of 0.010 mm film
    • Slot die: 100 mm width for minimum thickness of 0.005 mm film
    • Click the picture below right to order a spare slot die head with various width

 Digital Syringe Pump
  • Digital syringe pump with a easy to use control panel screen is included for slot-die coating
  • Holds small or big syringes up to 200 mL and remembers previous settings on power-up
  • Pumping rate: 1.963μL/min with a 10 μL syringe and 294.524mL/min with a 200mL syringe
  • The movement speed of the plunger: 15cm/min (Max) 0.0001cm/min (Min)
  • Multiple operating modes: Infuse only, Withdraw only, Infuse/Withdraw, Withdraw/Infuse, Continuation
Customer can also consider the economic digital syringe pump 300SP-LD


Options
  • In order to achieve better coating by the slot die, slurry's Viscosity and dispersion are very important.
  • Please click picture 1 to order the Viscosity meter and dispersing machine (Pic. 1) and find the best parameter for your coating (Pic.1)
  • Multi-channels heatable syringe pump (Pic. 2)
 Pic. 1     Pic. 2
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at an extra cost
