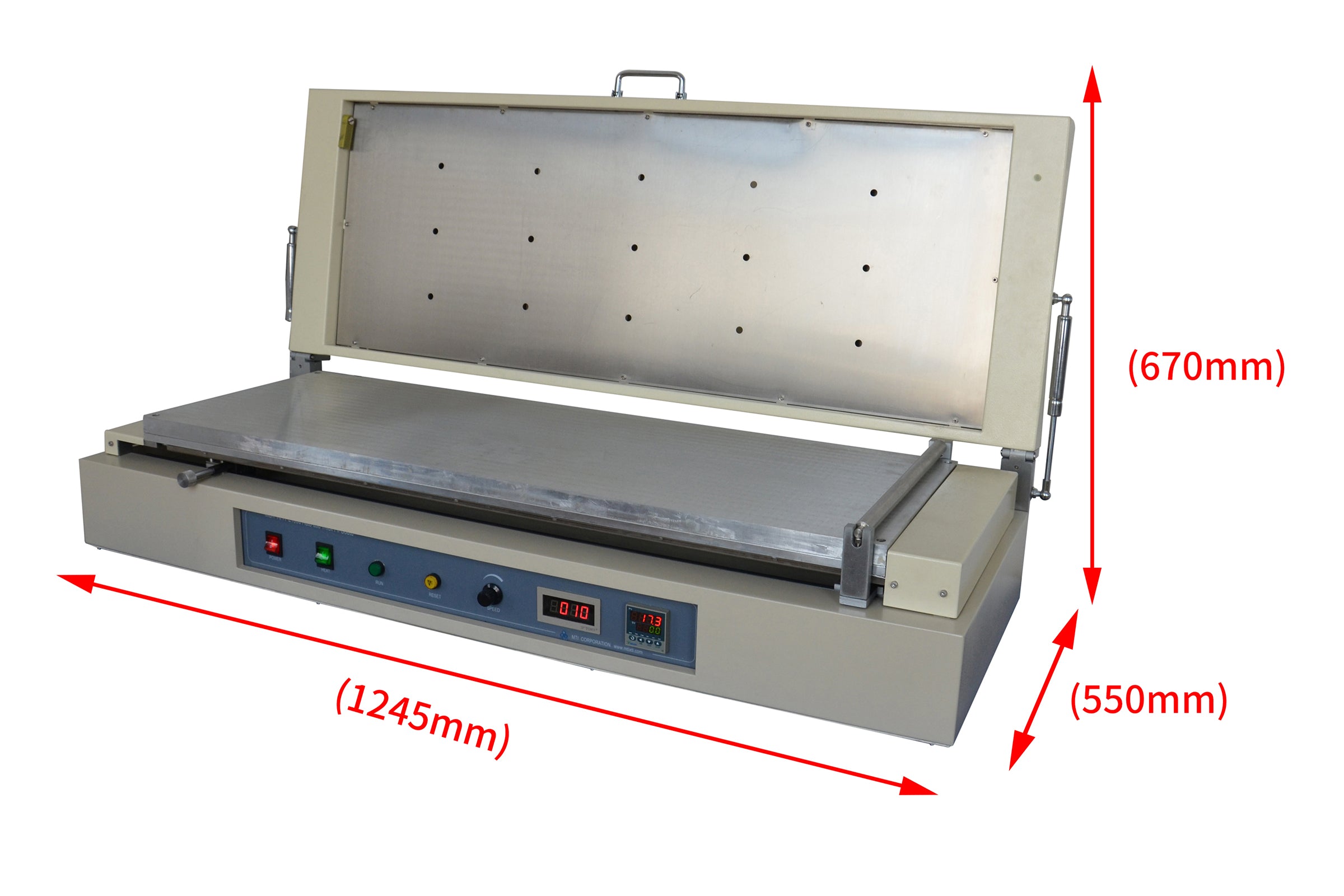

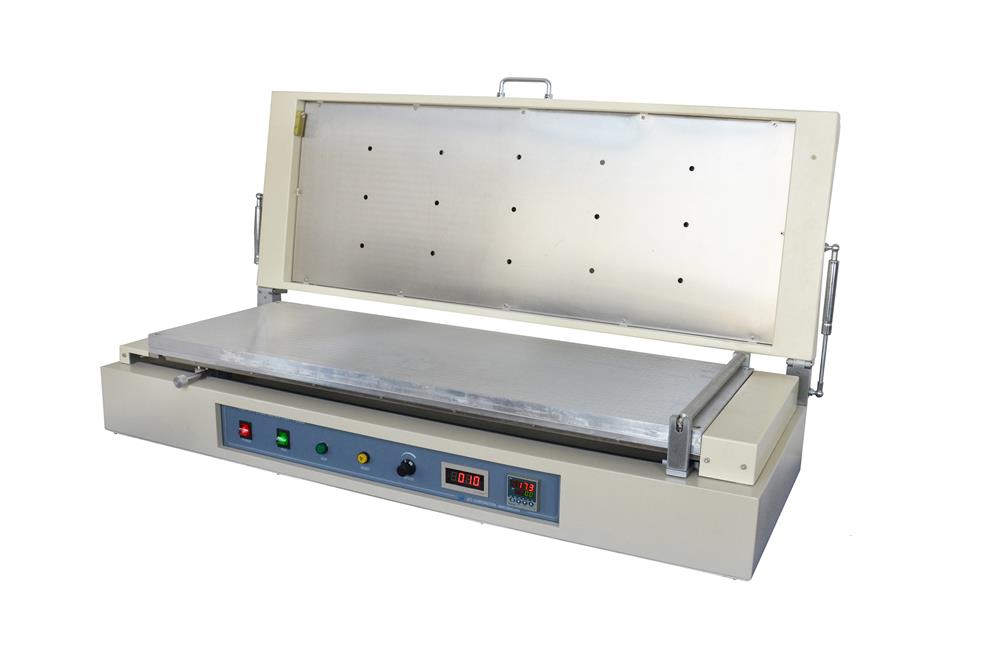

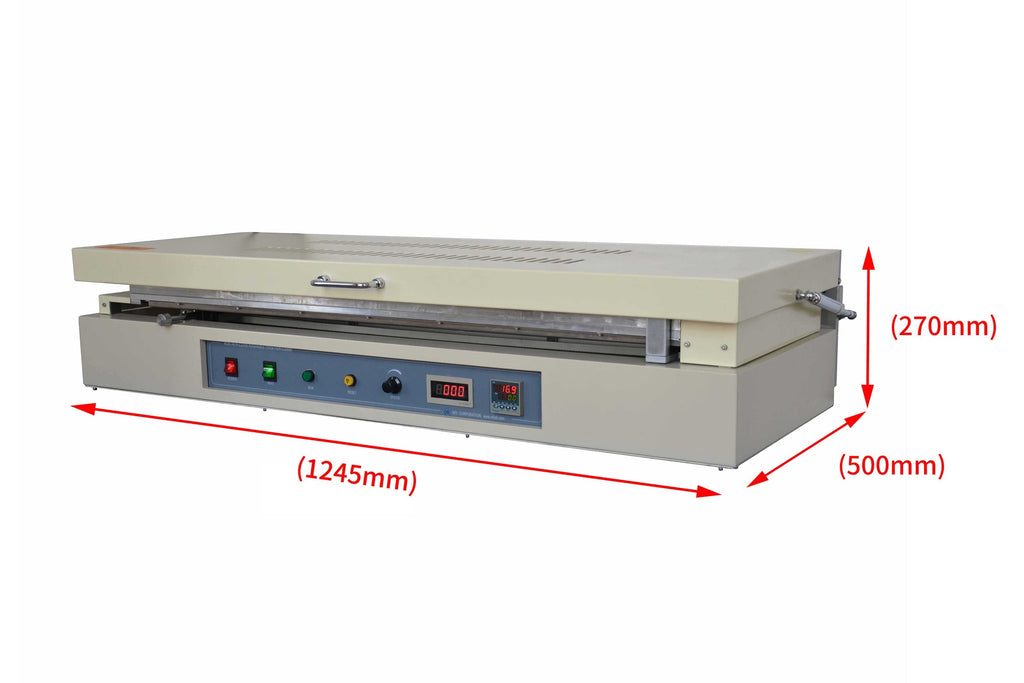

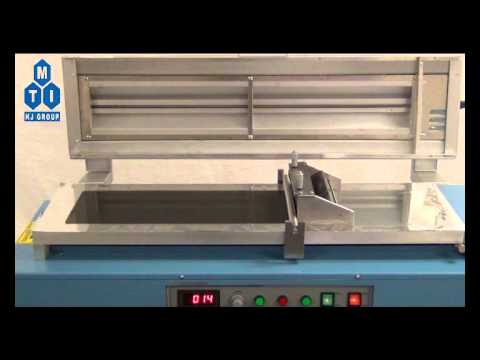

350 mm Width Tape Casting Sheet Coater (14Wx40L) w/ 120°C Vac. Bed & Doctor Blade-MSK-AFA-L1000

• 220V AC +/- 10%, 50/60Hz, single phase
• 3100W

• 0 - 100mm/sec adjustable. The setting speed is for reference only, roughly as shown (Traverse 300mm):
• Setting (10) Time: 29.04 s Refer speed: 10.33 mm/s
• Setting (20) Time: 19.76 s Refer speed: 15.18 mm/s
• Setting (30) Time: 14.60 s Refer speed: 20.55 mm/s
• Setting (50) Time: 9.62 s Refer speed: 31.19 mm/s
• Setting (100) Time: 6.92 s Refer speed: 43.36 mm/s

• 10 - 1000mm

• Aluminum alloy flat vacuum chuck with flatness +/- 10 microns
• Vacuum hole diameter ~ 1mm, hole distance = 14.3 mm
• Vacuum chuck Dimensions: 1000mm (L) x 350mm (W) x 25mm (H)
• Effective vacuum area: 930mm (L) ×300mm (W)
• Max. heating temperature: 120°C
• Precision temperature controller with +/- 1ºC accuracy.
• Tip: For drying the coated Li-ion battery electrode sheets (usually 80°C is required), simply set the target temperature in the temp. controller, close the lid, and wait for the slurry to be dried.

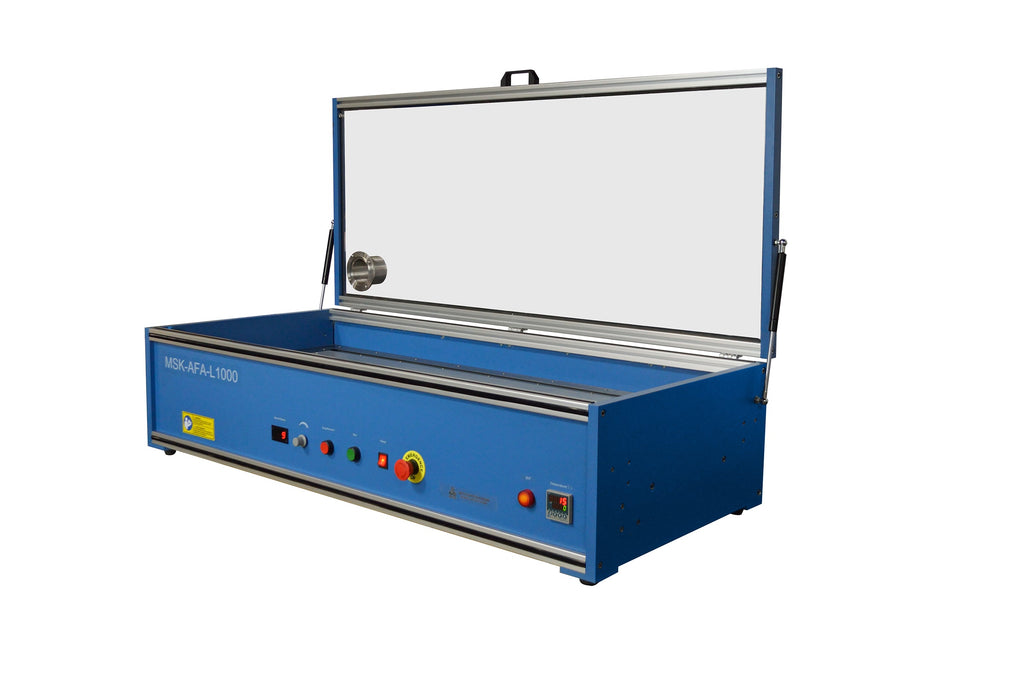

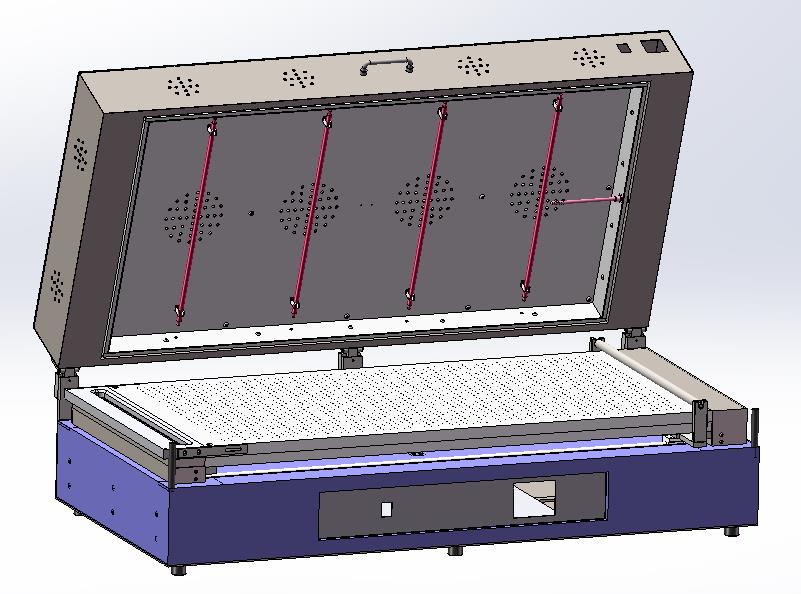

• IR light heating cover is available upon request at the extra cost ( click Pic left to see details)
• Digital temperature controller is built in ( single point control)
• Max. working temperature: 120oC
• Power: 220VAC +/- 10%, 50/60Hz, 2500W

• A vacuum pump is required, but not included
• Please order CE Compliance 120L/min Oilless Vacuum Pump
• (The oilless pump was removed from the standard pack on 02/26/2016)

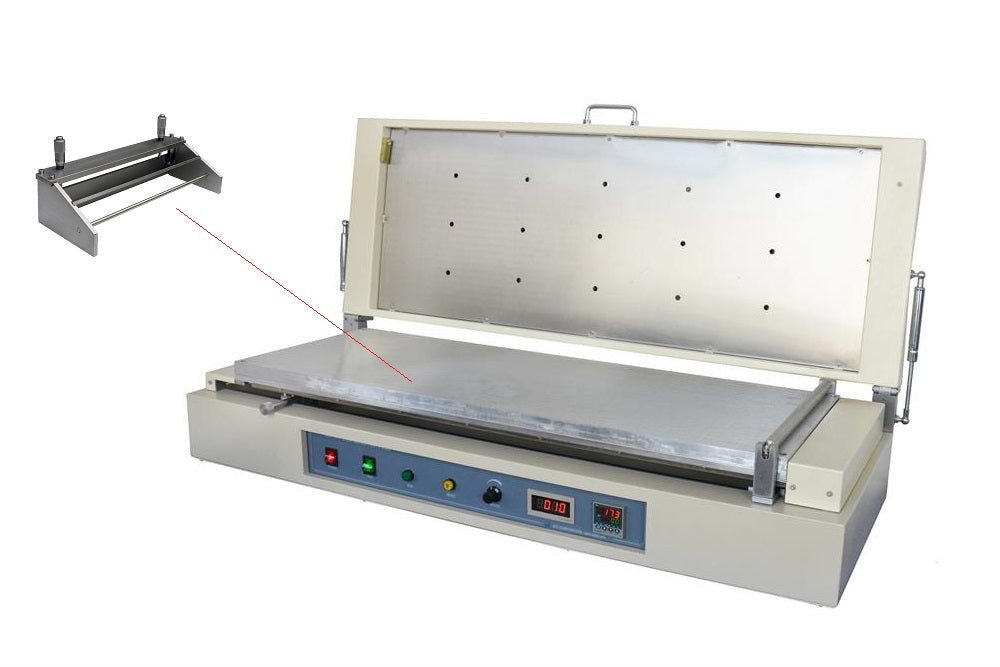

Film Applicator

• Built-in pushing bar for using micrometer adjustable applicator
• 300 mm width Applicator with micrometer adjustable head included making coating up to 1000mm(L)
• A hybrid slot die film applicator (250 mm width) is available upon request
• The accuracy of Film thickness: +/- 0.01mm
• 9 um Cu foil (BCCF-9u350) and 15 um Al foil (BCAF-15U350) with a width of 350 mm are recommended.

• Max. Area: 1000mm (L) x 350mm (W)
• Max Thickness: 500 microns

• Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to
• It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.)
• May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings (Click Pic.4 )
• You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.)
• You may need a Dry oven to dry the films and remove the binder after coating. (Click Pic.6 for detail.)

Pic.1    Pic.2    Pic.3

Pic. 4    Pic.5

• CE certified
• NRTL or CSA certification is available upon request at the extra cost. (base on UL61010/SPE-1000 regulation).
