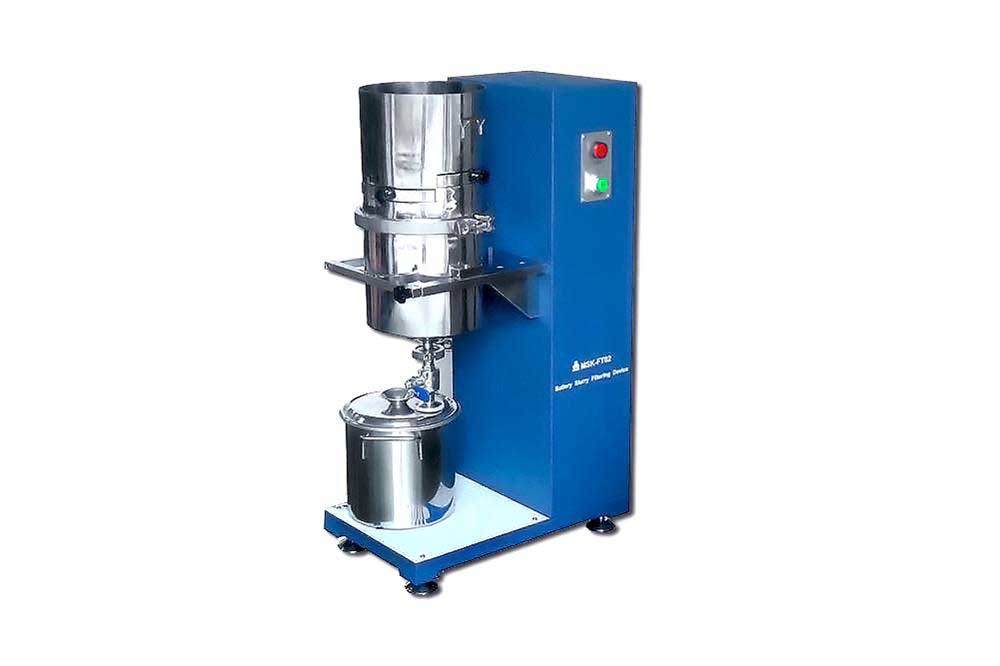

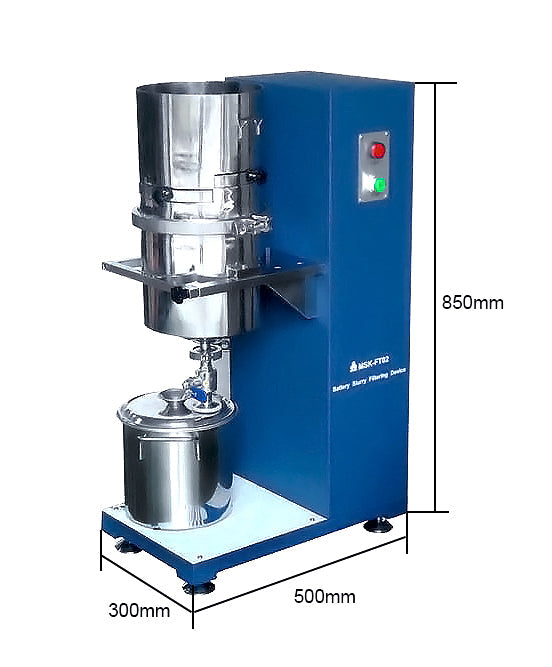

Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry - MSK-FT02
  • Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry - MSK-FT02
  • Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry - MSK-FT02
  • Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry - MSK-FT02
Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry - MSK-FT02

Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry - MSK-FT02

SKU: msk-ft02

Price: RFQ

Specifications

 MSK-FT02 is a CE Certified magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry. SPECIFICATIONS Structure Containers Made of Stainless Steel 304 Voltage supply Input 110VAC - 240VAC universal power Output Power: 24Vdc via a CE, UL-certified adapter for worldwide use Power 60W Process Capacity 5L Magnetic Field Strength 8000 Gs Filter 3 mesh filters: 80, 100, 120 Optional 150, 200, 250, 325 mesh size is available upon an email request Slurry Viscidity <=15000CP Humidity 0-90%RH DE ironing Function 8000-10000 Gs Compliance CE Certified CE, TUV, UL, CSA certified in power supply Machine is safe 24VDC input which can be used without any safety certification STANDARD PACKAGE Item No. Product Name QTY MSK-FT02 Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry 1 FT02-Tank Receiving tank for Battery Electrode Slurry 1 FT02-Container Slurry Container 1 FT02-FILTER 80,100,120 Filter mesh (3 pcs) 1 SET UL adaptor UL certified adaptor 1 Hex wrench 4mm Hex wrench 1 Screw-bolt Screw-bolt for taking out Magnetic rods 1

Structure
Voltage supply
  • Input 110VAC - 240VAC universal power
  • Output Power: 24Vdc via a CE, UL-certified adapter for worldwide use
Power
  • 60W
Process Capacity
  • 5L
Magnetic Field Strength
  • 8000 Gs
Filter
  • 3 mesh filters: 80, 100, 120
  • Optional 150, 200, 250, 325 mesh size is available upon an email request
Slurry Viscidity
  • <=15000CP
Humidity
  • 0-90%RH
DE ironing Function
  • 8000-10000 Gs
Compliance
  • CE Certified
  • CE, TUV, UL, CSA certified in power supply
  • Machine is safe 24VDC input which can be used without any safety certification
,
Item No. Product Name QTY
MSK-FT02 Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry 1
FT02-Tank Receiving tank for Battery Electrode Slurry 1
FT02-Container Slurry Container 1
FT02-FILTER 80,100,120 Filter mesh (3 pcs) 1 SET
UL adaptor UL certified adaptor 1
Hex wrench 4mm Hex wrench  1
Screw-bolt Screw-bolt for taking out Magnetic rods 1
