SKU: msk-me-200

Price: RFQ

Description

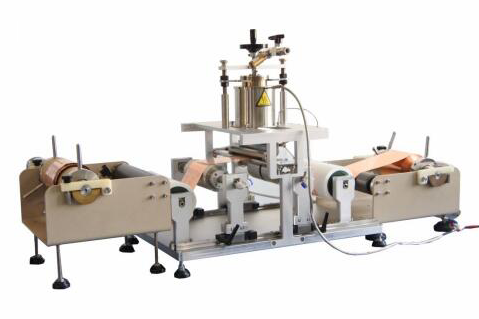

 MSK-ME-200 is an experimental melt coating system equipped with a heated slot-die coating head. The heads can reach a maximum heating temperature of 350°C for producing polymer or polymer composite films, such as plastic films, and flexible electrolyte membranes for solid-state batteries. It can also be used for coating metal lithium films on copper foil inside a glovebox. SPECIFICATIONS: Power Supply 208-240V, 50/60Hz, (single phase) Power Consumption 3.2kW Heated Coating Heads Up to 350 Heat able Slot-die Coating 150mm width ±2um coating thickness uniformity Heating Chamber Material: Stainless Steel SS316 Dimensions: ID54mm × height 230mm Volume: ~500ml Maximum Heating Temperature: 500°C Via external heating coil) Temperature Control Accuracy: ±1°C Maximum Pressure: 2MPa. Heated Slot Die and Heating plate One 150 mm width heated slot-die head is connected to the heating containe r Cooling plate is available upon request with water chiller from 5oC - 35 oC One 200 x 200 mm heating plate with max. 200 ºC is located at the bottom of the slot die The gap between the slot die and the heating plate is adjustable via two-micrometer heads Roll-to-Roll System Maximum Width: 200mm Speed Control Range: 0~800mm/min 24V DC motor, suitable for use in an Ar environment inside a glovebox Equipped with a 110 - 240 VAC to 24 VDC power adapter Control Unit The control unit with 7" touchscreen is separated from the device, which will control Container temperature and pressure Heated plate temperature Roll-to-roll speed Compliance CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost

Power Supply
  • 208-240V, 50/60Hz, (single phase)

Power Consumption
  • 3.2kW
Heated Coating Heads
  • Up to 350 Heat able Slot-die Coating
  • 150mm width
  • ±2um coating thickness uniformity
Heating Chamber
  • Material: Stainless Steel SS316
  • Dimensions: ID54mm × height 230mm
  • Volume: ~500ml
  • Maximum Heating Temperature: 500°C Via external heating coil)
  • Temperature Control Accuracy: ±1°C
  •  Maximum Pressure: 2MPa.
Heated Slot Die and Heating plate

  • One 150 mm width heated slot-die head is connected to the heating container
    • Cooling plate is available upon request with water chiller from 5oC - 35 oC

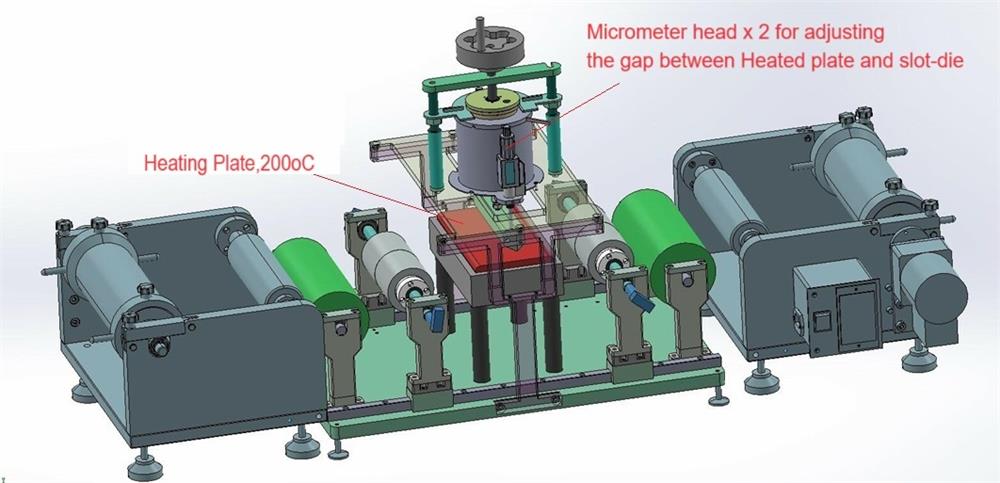

  • One 200 x 200 mm heating plate with max. 200 ºC is located at the bottom of the slot die
  • The gap between the slot die and the heating plate is adjustable via two-micrometer heads
Roll-to-Roll System
  • Maximum Width: 200mm
  • Speed Control Range: 0~800mm/min
  • 24V DC motor, suitable for use in an Ar environment inside a glovebox
  • Equipped with a 110 - 240 VAC to 24 VDC power adapter
Control Unit
  • The control unit with 7" touchscreen is separated from the device, which will control
    • Container temperature and pressure
    • Heated plate temperature
    • Roll-to-roll speed

Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost
