Description

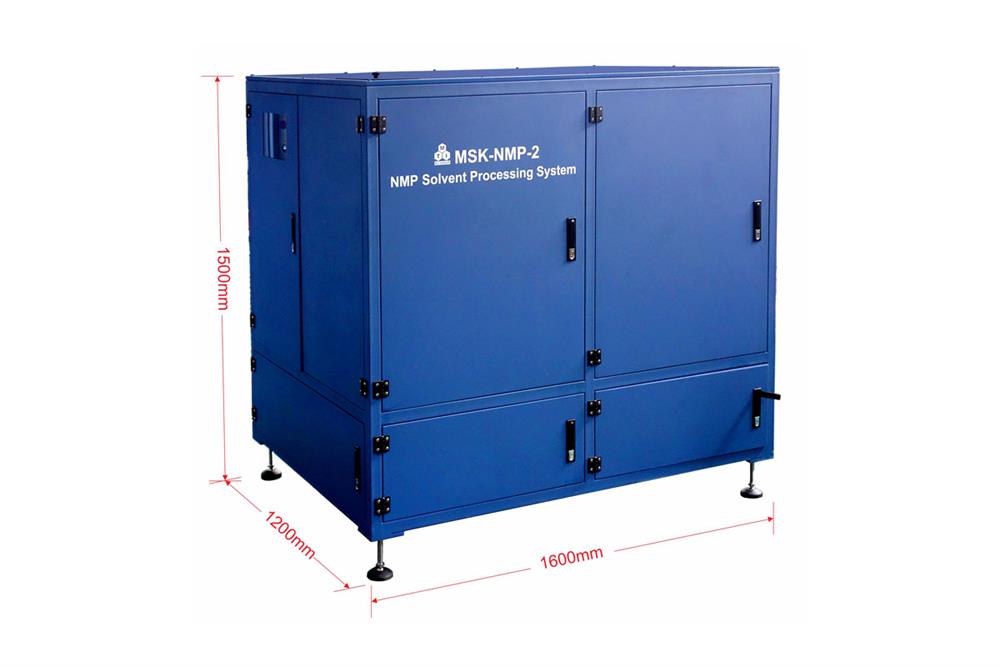

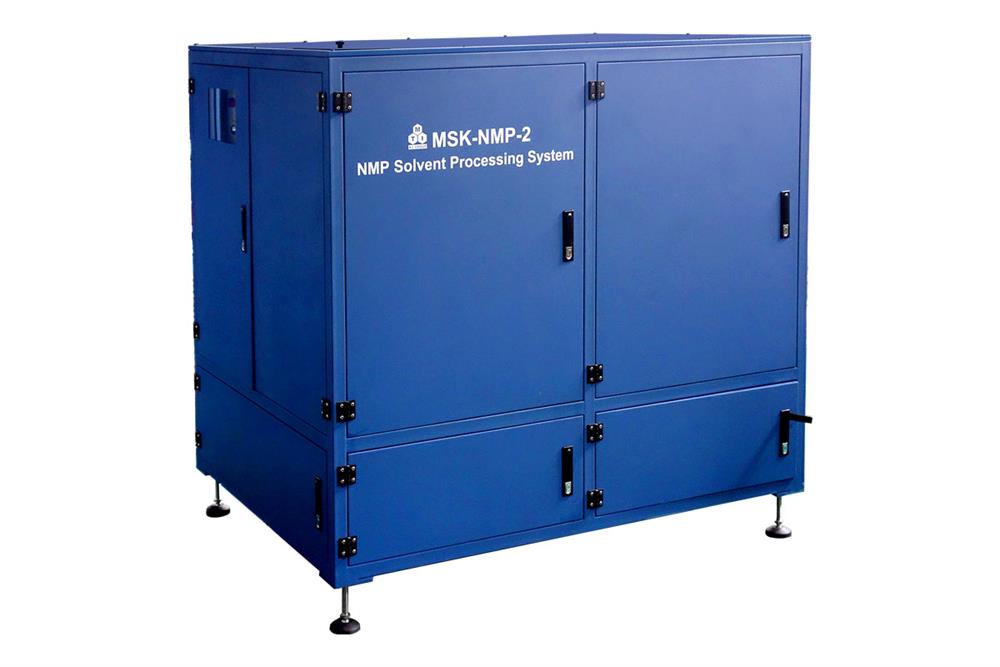

MSK-NMP-2 is a CE Certified Dual-Filtration System for NMP(N-Methyl-2-pyrrolidone) Vapor of Li-ion Battery coating. It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D. Water-filter design provides dedusting, NMP filtering, and vapor purification methods with the roll to roll coating MSK-AFA-E400-UL.
For Roll to Roll Coater Service, please fill in the Roll to Roll Request Form.
| Construction Material | SS 304 | |
|
Features |
|
|
| Working Voltage | AC220V, single phase, 50/60 Hz (AC380V, three phases is available upon request) | |
| Power | 3 KW | |
|
Processing Method
|
Water bath type absorption | |
| Processing Capacity | 2200 m³/h | |
| Gas Inlet Temperature | ≤ 150℃ | |
| Water Bath Volume | Max. 230 L | |
| Water Fall Area | ≤ 5900 mm2 | |
| Water Pump Rate | 60 L/min | |
| Centrifuge Fan | Volume: 2600 m3//h, Pressure: 1400 Pa, Power: 1.5 kW | |
| Connection Ports | Inlet and outlet connection port size: Ф 150 mm, externally connect with 5" aluminum tubing. | |
| Compliance | CE Certified | |
