Features
|
- Mixing under vacuum for deaeration
- Automatic and Manual modes of operation
- Combination of rotation and revolution to mix samples evenly
- Temperature monitor for the chamber

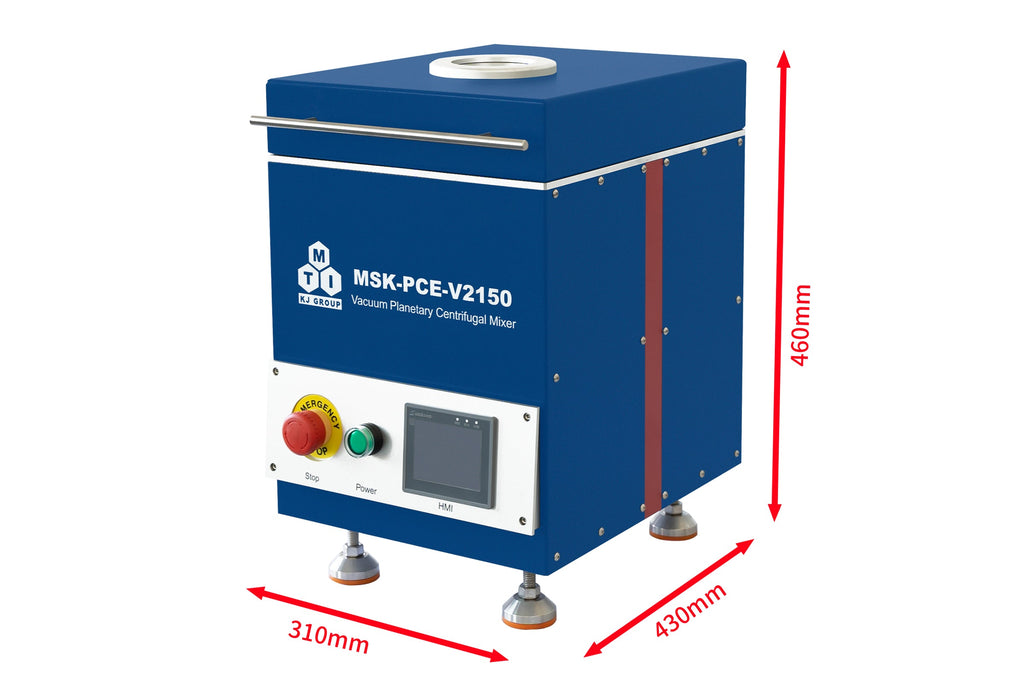

- Compact size to fit in the glove box
- Minimized contamination (no metal mixing blade)
- Mix, disperse, and degas samples simultaneously
- Process up to two samples simultaneously
- Brushless motor to allow to use in Ar environmental
|
| Voltage Input |
- Single Phase AC 208 - 240V, 50 Hz
- Maximum: 1000 W
- 110V is available with a 1500W transformer
|
Mixing
|
- Planetary Centrifugal Vacuum Mixing
- The centrifugal force of rotation and revolution induces convection, homogenizing the materials.
- With the vacuum pressure, submicron air bubbles can be efficiently eliminated from the materials.
|
| Vacuum Capability |
- - 0.085 MPa Max.
- The vacuum pump is not included in the standard package. Please click the picture below to order a vacuum pump.
|
| Working Time |
|
| Speed |
- Fixed speed ratio (container rotation speed = sample platen revolution speed x 0.6 )
- Sample Platen (revolution motion): 10-2000 rpm, accuracy 1 rpm
- Low Speed: 10-1499 rpm, continuous
- High Speed: 1500-2000 rpm, 7.5min Max.
|
| Containers and Counter-Weights |
- Two 150ml standard containers are included. 30ml containers are available upon request.
-
| Type |
Container |
Max Sample Volume |
Max Sample Weight |
| Standard |
150 ml |
75 ml |
150 g |
| Optional |
30 ml |
15 ml |
- Warning: overload may damage the device. Please follow both the volume and weight limit as above when loading the sample.
|

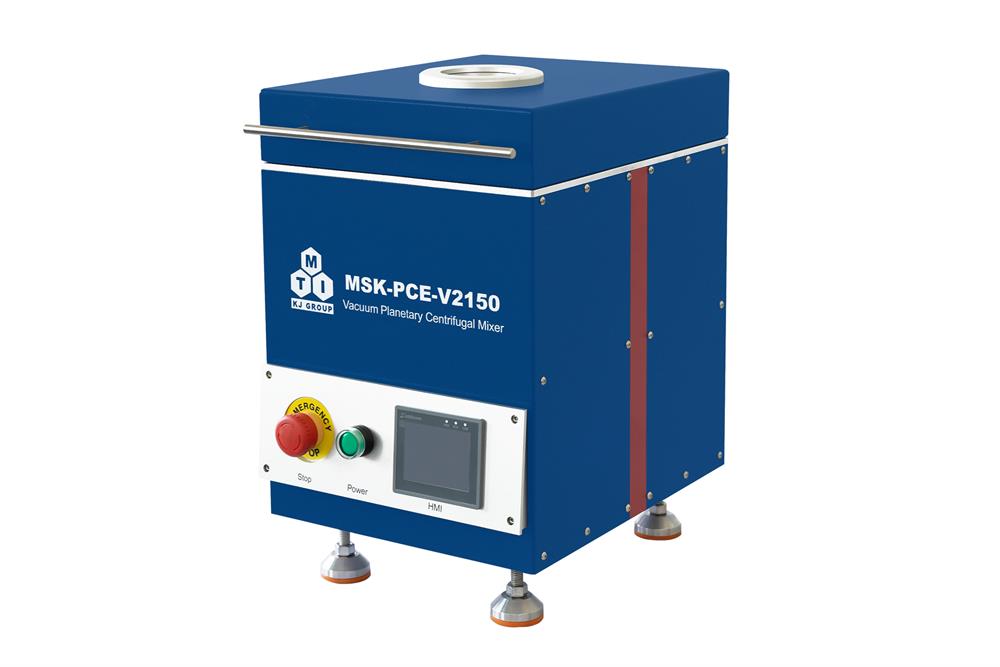

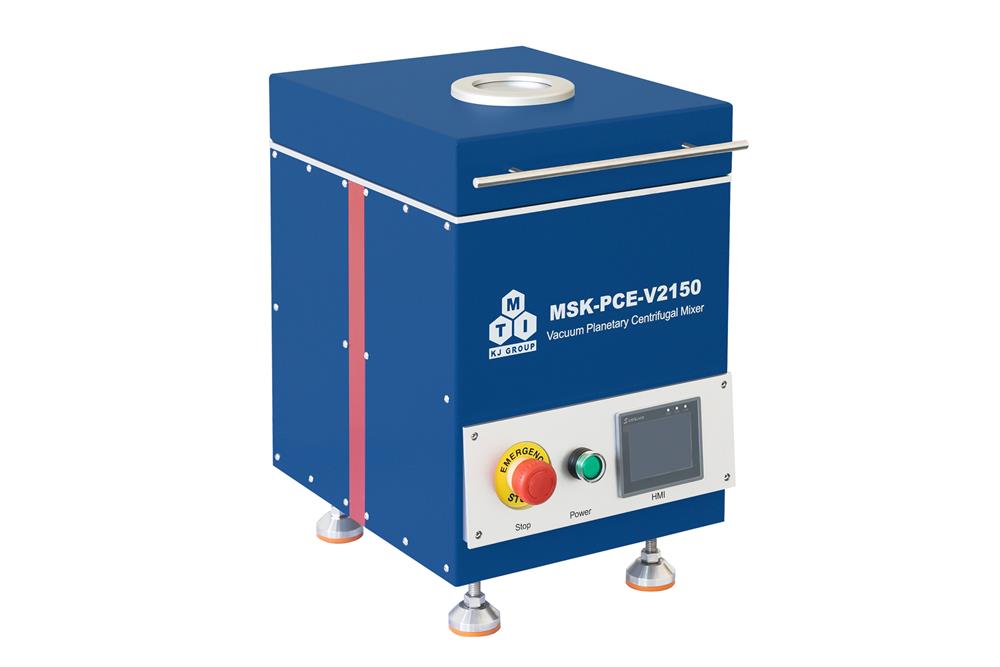

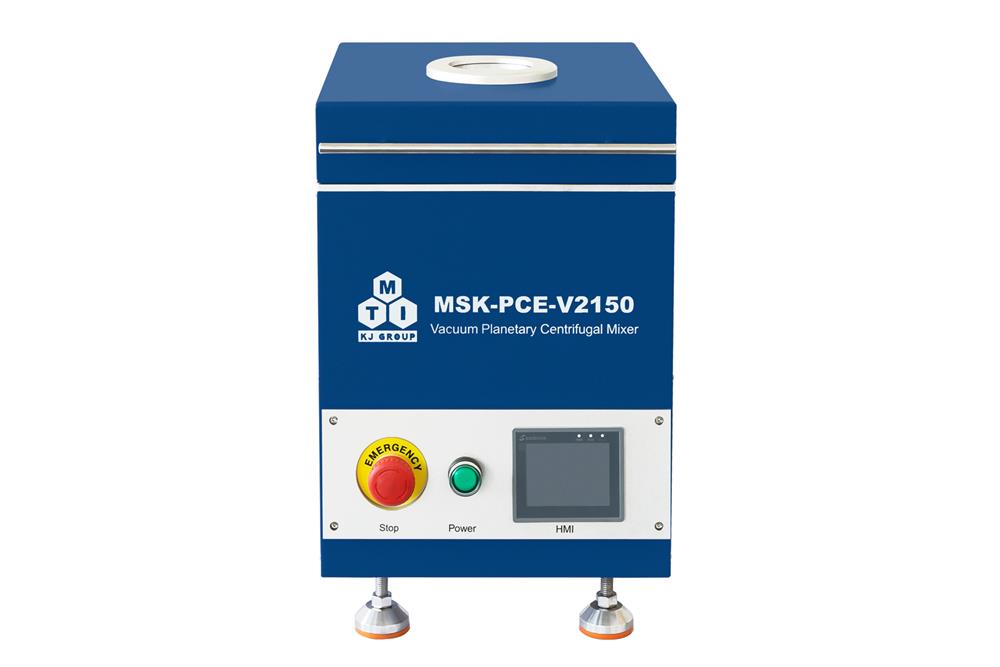

Control Panel
|
- Easy control touch screen panel
- Store up to 8 programs in memory at Automatic Mode, as shown in Fig.1
- 3 programmable segments with adjustable speed, time, and vacuum values, as shown in Fig.2.
 Fig.1  Fig.2
|
| Safety and Protection |
- Safety warnings and interlocks are integrated. The unit automatically stops when
- The unit is overloaded with the sample.
- The sample is loaded in an unbalanced way.
- The top cover is opened.
|
| Application Notes |
- Always use the mixer on a level & stable surface for best performance and maximum safety.
- Do not use the mixer in a hazardous atmosphere, or with flammable, explosive, corrosive, poisonous material.
- Check the chemical resistance of the container with different materials before loading the sample.
- Do not overload the mixer! Stop the mixing operation immediately if abnormal sound/vibration is observed.
- Use a digital balance to make sure the sample loading is balanced before mixing.
- Double-check if the containers are mounted correctly and securely before mixing.
- Do not open the cover lid until the rotation has completely stopped. Do not retrieve the containers and/or put a hand close to the mixing fixture while the rotation has not completely stopped.
- Only use the included containers for the mixing operation. Please make sure there is no foreign object in the mixer before mixing
- Please click underline to learn Centrifugal Force calculation.
|
Fig.1
Fig.2
