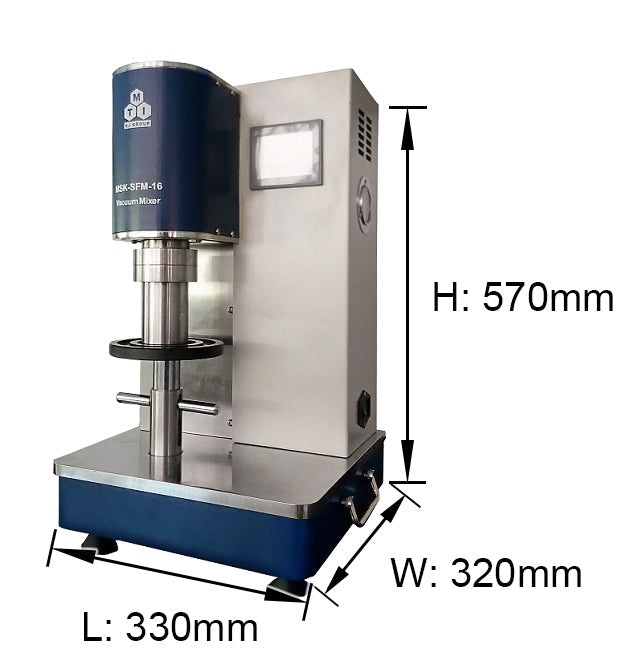

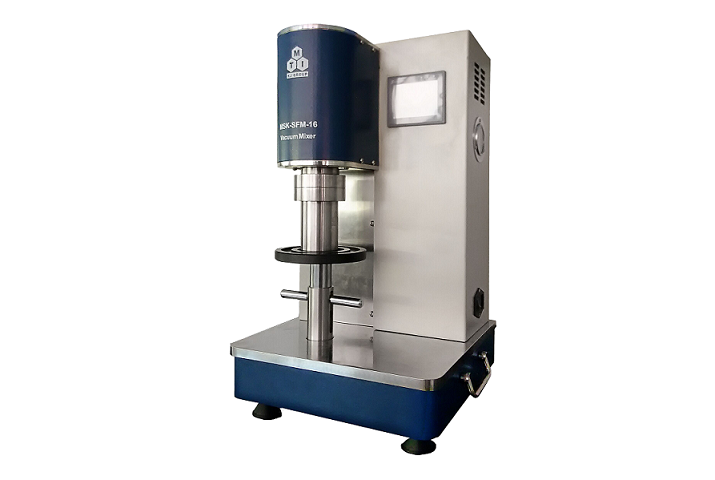

Desk-Top Dual-Shaft Planetary Vacuum Mixer w/ Optional Containers (50-500ml) up to 600 RPM -MSK-SFM-16

• 24 VDC input voltage
• One UL listed 100-240 VAC IN, 24 VDC OUT power adapter is included
• 120W, 24VDC motor

• 0 - 600 rpm

• max. 10000 cp @ 600 rpm

• One 150 mL stainless steel 304 vacuum-sealed container is included (minimum loading required is 50mL)
• Dual helical ribbon mixing blades are built on the lid of the container.
• Slurry volume is suggested to be in the range of 20%-70% total tank volume. If your slurry amount is too small, please contact us before purchase.
• 500 mL SS container and 50mL SS container are available at extra cost Click the picture below to order

150ml 500ml 50 ml

• Built-in single-stage vacuum pump
• Vacuum Level: -0.08 ~ -0.09 MPa

• 3.5" color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off
• Mixing Time: 0 - 600 minutes
• Mixing Speed: 0 - 600 RPM and 3 segments programmable
• Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry

Heating Container with Temp Control  (Optional)

• The heating container is available at an additional cost. Please contact us for a quote.
• The heating container can be heated up to 200°C  with precision temperature control for heated vacuum mixing.
• The heating option ONLY comes with a 500ml heating container, please contact us if other sizes are needed.
• A water cooling chiller is required for protecting gear and O-ring
• We suggest using the EQ-KJ5000 Series recirculating water chiller as a cooling system
• Protective shielding is included with the Heating Jet option.

• CE certified
• CSA, UL, TUV, and MET certification is available upon request at extra cost

• For the best result, pls order a filter to remove larger particles in the slurry ( click the left picture to order )
• Please click the picture to the right to see the quality of the slurry after mixing.

Item No.

Description

Quantity

MSK-SFM-16

Compact Dual-Shaft Planetary Vacuum Mixer

1

Built-in single-stage vacuum pump (Pre-installed)

1

SFM16-150ML

150 mL stainless steel vacuum-sealed container is included.

1

POWER-24VDC

DC 24V Plug-In Adapter Single-OUT

1

Consumables & Accessories (Click to view recommended spare parts list)
* Optional parts are not included in the standard package. You have to order separately. Prices are subject to change without notification.

Option
