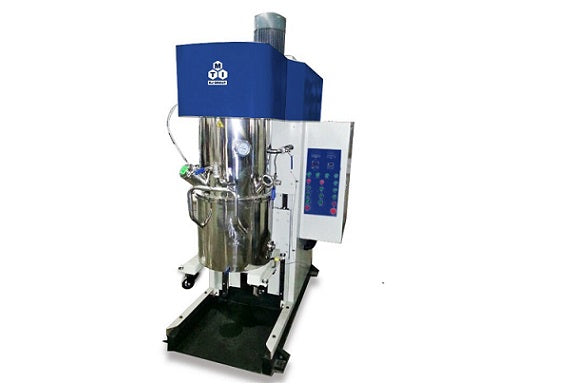

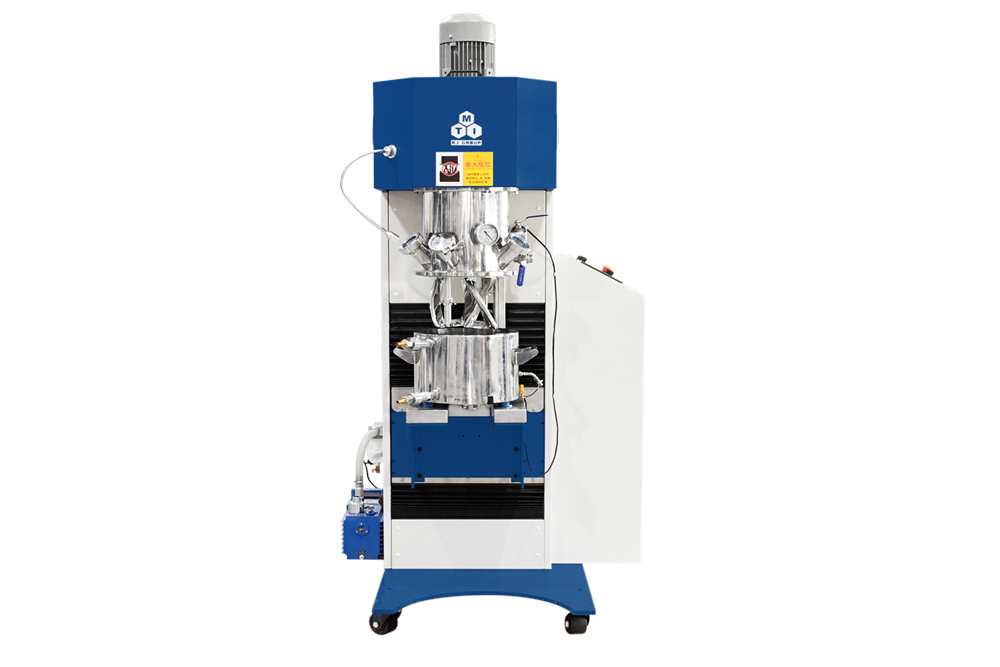

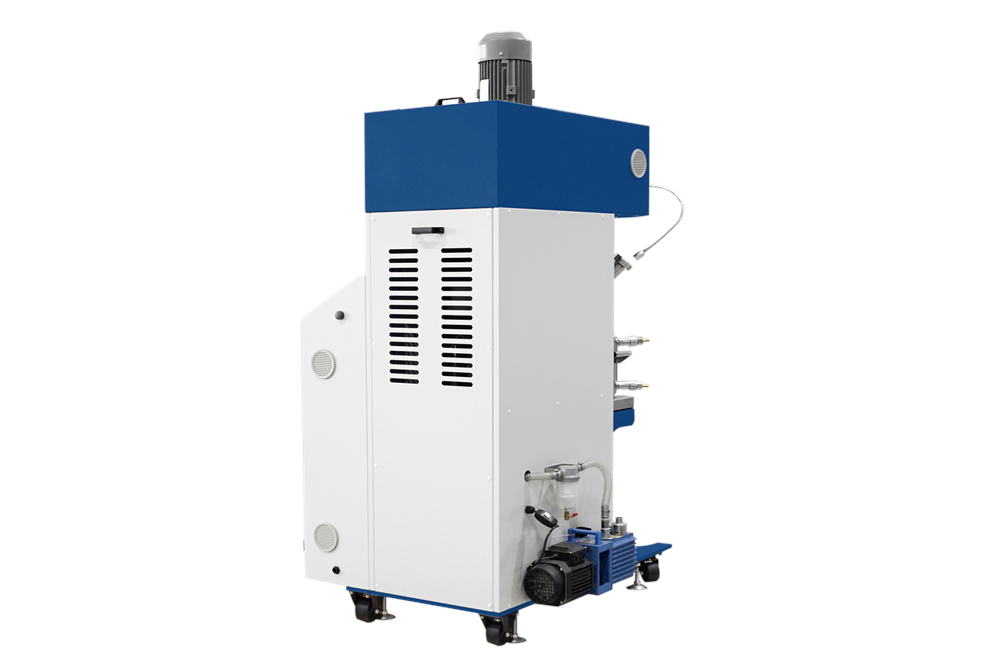

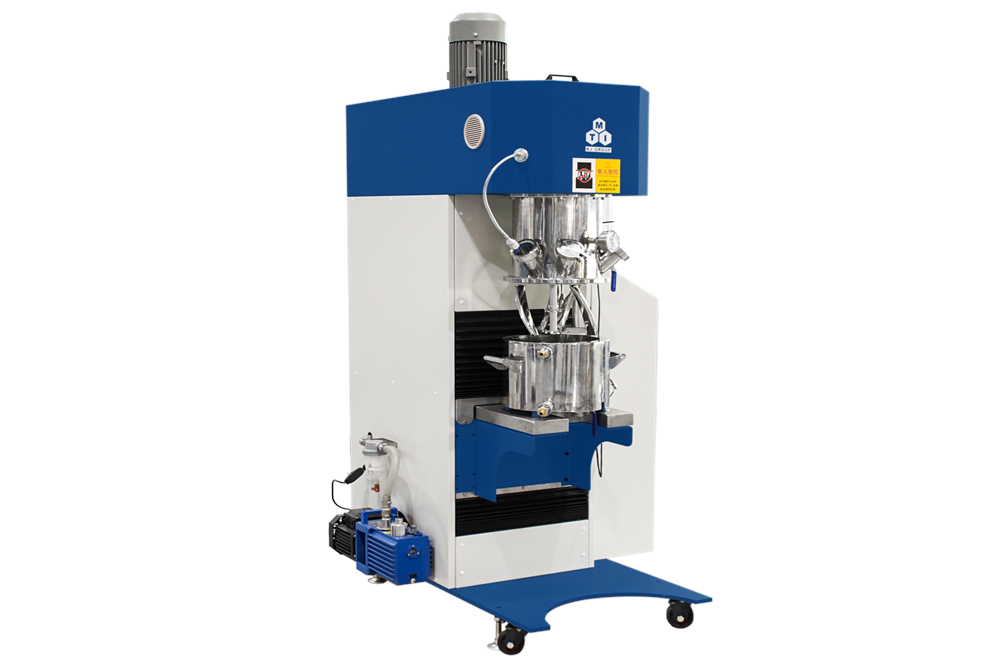

MSK-SFM-30L is a CE Certified and MET-ready large Vacuum Planetary Mixer with effective 30-liter containers and complete accessories for immediate use. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double planetary stirring shafts, and shaft for scraping the walls to make slurry mixing without dead corners and with extreme uniformity under vacuum. A temperature-controlled water circulator is included to make the container work at the temperature range from 50ºC to 35ºC directly and a water cold stainless steel tank can promise high efficiency in mixing. It is excellent for preparing LiCoO2, LiFePO4, NCM and ceramic slurry with excellent results in dispersion and uniformity.
Specifications:
Power Supply |
|
| Speed |
- Stirring blade rotation speed: 2 - 110 rpm (suggested the minimal stirring speed is 5 rpm),
- Dispersing blade rotation speed: 100 - 4500 rpm (suggested minimal dispersing speed of 300 rpm)
|
| Viscosity |
|
|
Vacuum
|
- The vacuum level: ≦ -0.098MPa
- The heavy-duty double-stage vacuum pump is included. Click the pump pic for detailed information.
|
| Lifting system |
- Hydraulic lifting cylinder
- 370W/4P electric driving motor
- lifting height: 300mm max.
|
| Bucket |
- SS304
- Thickness: 6mm (inner wall), 4mm (outer wall)
- Dimensions: Dia.400mm x H.360mm
- Capacity: 30 Liter effective （45L total volume）
- Water cooling jacket (side and bottom), water pressure < 40psi
- Fork slot at bottom of the bucket for easy transportation by a forklift
- Temperature monitors and over-temperature alarm
|
| Distance for blade and bucket |
- Distance between stirring blade and bucket bottom: 2-4 mm
- Distance between stirring blade and bucket wall: 2-5mm
- Distance between stirring blades: 3-8mm
- Made of SS 304
|
| Scraping blade |
- The blade is made of PTFE.
- The blade rotates with the main shaft.
|
|
Water Recirculating Chiller
|
|
|
Connected Accessories & Fittings
|
- One DN50 feed hole
- Three-piece type ball valve outlet
- Two DN50 sight glasses
- One G1/2" vacuum connector with vacuum pump
- One G1/2" air outlet
- One vacuum meter
- 12mm O.D. water inlet and outlet fittings
|
| Compliance |
- CE Certified
- NRTL certification is available upon request at extra cost
|
