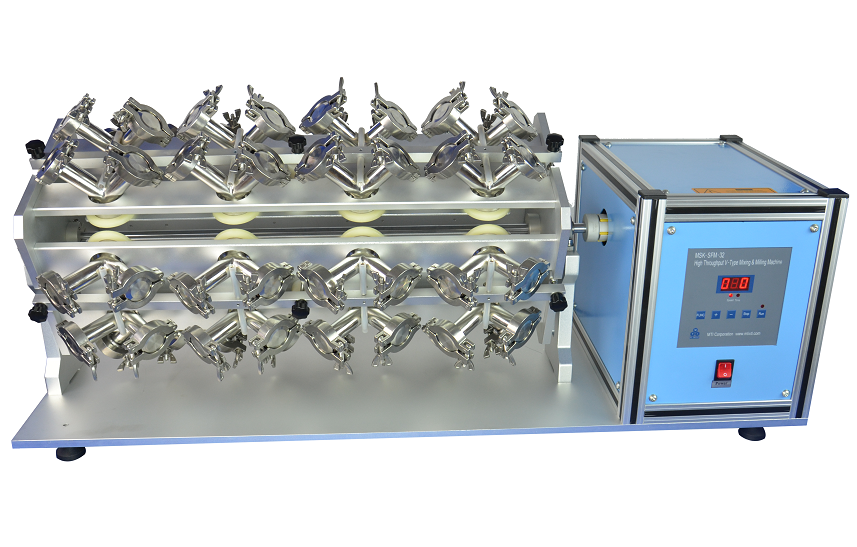

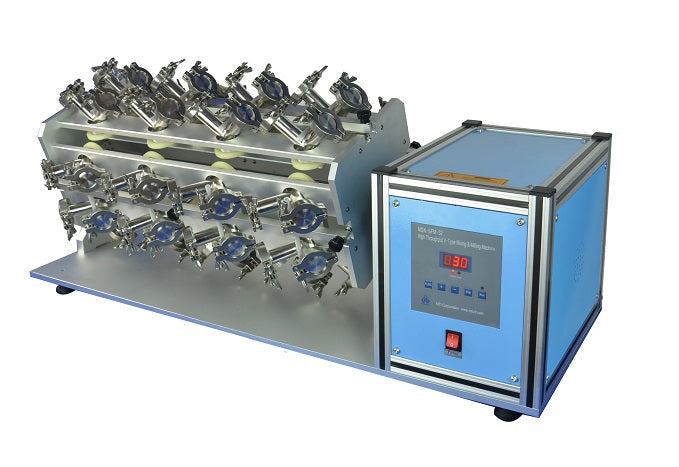

High Throughput V-Type Mixing Machine with 32 SS Tanks ( 50 ml each, Ar Gas Compatible) - MSK-SFM-32
  • High Throughput V-Type Mixing Machine with 32 SS Tanks ( 50 ml each, Ar Gas Compatible) - MSK-SFM-32
  • High Throughput V-Type Mixing Machine with 32 SS Tanks ( 50 ml each, Ar Gas Compatible) - MSK-SFM-32
  • High Throughput V-Type Mixing Machine with 32 SS Tanks ( 50 ml each, Ar Gas Compatible) - MSK-SFM-32
  • High Throughput V-Type Mixing Machine with 32 SS Tanks ( 50 ml each, Ar Gas Compatible) - MSK-SFM-32
  • High Throughput V-Type Mixing Machine with 32 SS Tanks ( 50 ml each, Ar Gas Compatible) - MSK-SFM-32
High Throughput V-Type Mixing Machine with 32 SS Tanks ( 50 ml each, Ar Gas Compatible) - MSK-SFM-32

High Throughput V-Type Mixing Machine with 32 SS Tanks ( 50 ml each, Ar Gas Compatible) - MSK-SFM-32

SKU: msk-sfm-32

Price: RFQ

Specifications

 MSK-SFM-32 is a high throughput mixing and milling machine that has 32 stainless steel tank with 50 ml capacity. The special V-shaped mixing tank is designed for grinding and mixing dry powders in short periods of time for 32 kinds of composition. A digital control panel enables the rotary speed and time duration of the mixing session to be programmed easily. The mixer can be used inside a glove box under Ar gas because of 24VD Motor Driven. It is an excellent tool for material MGI research. SPECIFICATIONS Features 32 pcs of V-shaped mixing tank made of SS 304. Stainless steel tank can be opened on all ends for easy feeding, discharging and cleaning. Digital display and simple control interface provides easy programming of mixing operations 110- 240V AC to 24V DC power adapter is included for universal using。 The mixer can be used inside glovebox under Ar or N2 gas Input Voltage AC 110 - 240V, 50/60Hz input Current 5A Max. Power 90 W The power adaptor to 24VDC is UL, TUV, CSA, and CE approval for worldwide use Timer Setting Range 1~900 min Rotary Speed 20~70 rpm Dimensions and Capacity 50 ml tanks, usually for 20g max. metallic powder Customized tank size is available upon request Optional grinding balls Please click the picture below to choose a grinding ball made of stainless steel, alumina YSZ and Agate For grindingplease choose a larger ball For Milling please choose a small and larger ball combination Compliance CE, TUV, UL, CSA certified in power supply The machine is safe 24VDC input which can be used without any safety certification Optional Cryogenic mixer with automatic liquid N2 flow control is available upon request at the extra cost

Features
  • 32 pcs of V-shaped mixing tank made of SS 304.
  • Stainless steel tank can be opened on all ends for easy feeding, discharging and cleaning.
  • Digital display and simple control interface provides easy programming of mixing operations
  • 110- 240V AC to 24V DC power adapter is included for universal using。
  • The mixer can be used inside glovebox under Ar or N2 gas



Input Voltage
  • AC 110 - 240V, 50/60Hz input
  • Current 5A Max.
  • Power 90 W
  • The power adaptor to 24VDC is UL, TUV, CSA, and CE approval for worldwide use
Timer Setting Range 1~900 min
Rotary Speed  20~70 rpm

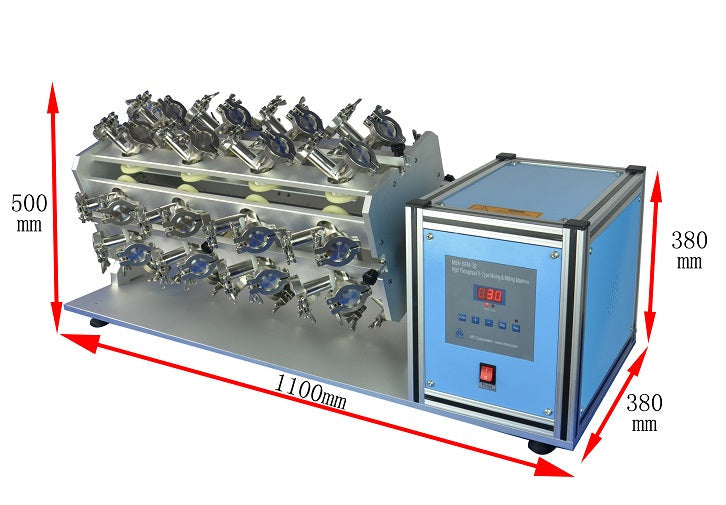

Dimensions and Capacity
  • 50 ml tanks, usually for 20g max. metallic powder
  • Customized tank size is available upon request


Optional grinding balls
 Please click the picture below to choose a grinding ball made of stainless steel, alumina YSZ and Agate
  • For grindingplease choose a larger ball
  • For Milling please choose a small and larger ball combination
Compliance
  • CE, TUV, UL, CSA certified in power supply
  • The machine is safe 24VDC input which can be used without any safety certification
Optional
  • Cryogenic mixer with automatic liquid N2 flow control is available upon request at the extra cost
