High Energy 3D Ball Mill with One Jars (80ml SS, 2 Yrs Warranty) - MSK-SFM-3
  • High Energy 3D Ball Mill with One Jars (80ml SS, 2 Yrs Warranty) - MSK-SFM-3
  • High Energy 3D Ball Mill with One Jars (80ml SS, 2 Yrs Warranty) - MSK-SFM-3
  • High Energy 3D Ball Mill with One Jars (80ml SS, 2 Yrs Warranty) - MSK-SFM-3
  • High Energy 3D Ball Mill with One Jars (80ml SS, 2 Yrs Warranty) - MSK-SFM-3
  • High Energy 3D Ball Mill with One Jars (80ml SS, 2 Yrs Warranty) - MSK-SFM-3
  • High Energy 3D Ball Mill with One Jars (80ml SS, 2 Yrs Warranty) - MSK-SFM-3
High Energy 3D Ball Mill with One Jars (80ml SS, 2 Yrs Warranty) - MSK-SFM-3

High Energy 3D Ball Mill with One Jars (80ml SS, 2 Yrs Warranty) - MSK-SFM-3

SKU: msk-sfm-3

Price: RFQ

Specifications

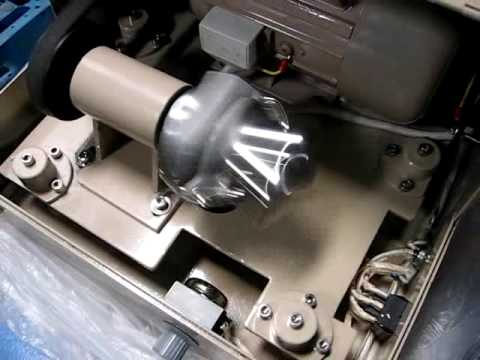

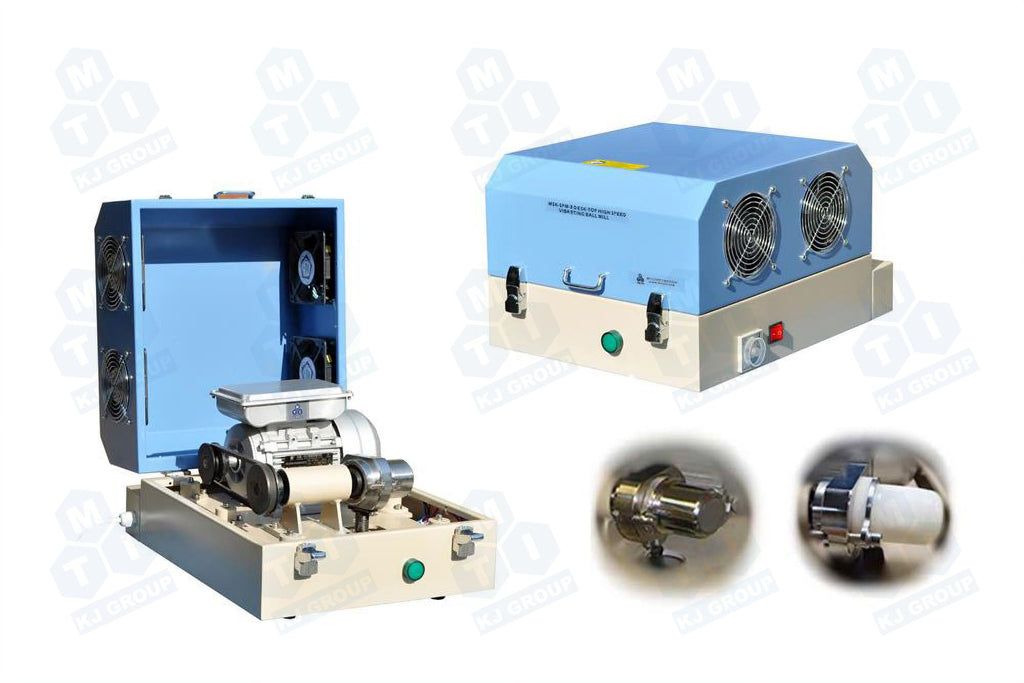

 MSK-SFM-3 is a compact high-speed ball mill with a 3D movement for making a small amount of samples. It has higher impact energy created by rotation, vibration, and oscillation with frequencies up to 1200 rpm with a two-year warranty . The MSK-SFM-3 can be used either dry or wet to mill materials of solids, suspension liquids, and pastes. It is an ideal choice to make small quantity samples in materials research. SPECIFICATIONS: Features 1200 max. RPM fixed speed allows efficient pulverization and homogenization Choice of milling jar materials: Nylon, Alumina, SS, WC and Agate Please kindly review MSK-SFM-3-F for programmable milling speed and time, Choice of Milling Jars 80 ml Stainless Steel Jar with a set of SS balls 80 ml Nylon Jar with a set of Zirconia milling balls High Throughput 4 Milling Cavities (9ml each) SS Jar Al2O3 Jar with SS Jacket (75 ml) - AJ-50 Tungsten carbide jar is available at extra cost Attention: Don't use an SS jar with ceramic balls. Power Input 208- 240VAC 50/60Hz, 300 W A 750W transformer can be used for 110V. The transformer is not included, please order at extra cost. Oscillation Frequency <1,200 RPM, fixed Timing Range 0 to 30 minutes for built-in mechanical timer Warning: running time for the mill should be less than 30 minutes, otherwise, the mill may overheat. Feeding Feeding Granularity: <1mm Discharging Granularity D50 0.1 micron minimum for oxide ceramic materials ( see pic. left ) Note: To achieve finer or desired particles via ball mill is a research project, which is dependent on the material to be milled, grinding time and speed, combination of grinding jar and milling ball, etc. It is the user's responsibility to find the best milling procedure based on the material. Buyers are welcome to the MTI laboratory in California to test before purchase. Noise Level 87dBA (standing at 1ft with the machine lid open and SS milling balls in the jar) Compliance CE Certified only For NRTL or CSA certification, please choose MSK-SFM-3-II or MSK-SFM-3-F Optional Air Cooling Forced cold air If the user needs to force conditional air cooling for some ductile materials, please click to order a Portable Spot Air Cooling Conditioner , which will keep the milling jar temperature low. ( click picture left ). It is a cost-effective way to achieve the required particle sizes and production rates for heat-sensitive or tough-to-mill materials. Air Cooling Conditioner Test with Nylon Jar Zirconia Balls Milling 30 mins Milling 60mins The temperature of the jar without Air Cooling 45°C 65°C The temperature of the jar with Air Cooling 35°C 45°C Application Notes Attention: To achieve the best grinding effects, it is suggested to use milling balls with a diameter of less than 10mm for a 50ml alumina jar Tips for choosing proper jars and milling media for milling and grinding application: SS mixing jar is suitable for grinding various metal materials For milling the oxide material, please choose Nylon or alumina/zirconia jar and media Please consider our SYU-3 Ultrasonic Filtration System for filtering the product. DO NOT USE stainless steel balls in Alumina jars or vice versa to avoid contamination. Please use N2 gas if it operates inside of the glove-box, do not use Ar gas Bulk samples must be crushed before grinding. Please consider MTI Jaw crusher ( click pic below right ) CONSUMABLES Item No. Descriptions QTY Picture MJ-3-80SS 80 ml SS jar 1 piece SSball SS balls (2pcs 20mm; 2pcs 15mm; 2pcs 12mm; 2pcs 10mm; 4pcs 8mm; 8pcs 6mm) 1 set SFM-ACC#02 O.D 55mm, Dia 2.5 Sealing Gasket 1 set SFM-ACC#03 Motor driving bel t 1 unit SFM-ACC#04 Open-end wrench 1 unit SFM-ACC#05 Hex-wrench (5mm & 6mm) 1 set SFM-ACC#06 Power cord (without plug) 1 unit MTI-SFM3-SPRG Base Cushion Springs 6 pieces AJ-50 Al2O3 Jar with SS Jacket (50 ml) ALOball-3 Alumina Milling Ball MJ-3-80VSS Vacuum Stainless Steel Jar (80ml) MJ-3-80AC Acrylic Jar (80ml) Replacement Part MTI-SFM3-Gearbox Gearbox and Container Mount 1 unit

Features
  • 1200 max. RPM fixed speed allows efficient pulverization and homogenization
  • Choice of milling jar materials: Nylon, Alumina, SS, WC and Agate
  • Please kindly review MSK-SFM-3-F for programmable milling speed and time,


Choice of Milling Jars

    Power Input
    • 208- 240VAC 50/60Hz, 300 W
    • A 750W transformer can be used for 110V.
    • The transformer is not included, please order at extra cost.
    Oscillation Frequency
    • <1,200 RPM, fixed
    Timing Range
    • 0 to 30 minutes for built-in mechanical timer
    • Warning: running time for the mill should be less than 30 minutes, otherwise, the mill may overheat.
    Feeding
    • Feeding Granularity: <1mm

    Discharging Granularity

    		 D50 0.1 micron minimum for oxide ceramic materials ( see pic. left )
    Note: To achieve finer or desired particles via ball mill is a research project, which is dependent on the material to be milled, grinding time and speed, combination of grinding jar and milling ball, etc. It is the user's responsibility to find the best milling procedure based on the material. Buyers are welcome to the MTI laboratory in California to test before purchase.
    Noise Level 87dBA (standing at 1ft with the machine lid open and SS milling balls in the jar)
    Compliance
    Optional Air Cooling


     Forced cold air
    • If the user needs to force conditional air cooling for some ductile materials, please click to order a Portable Spot Air Cooling Conditioner, which will keep the milling jar temperature low. ( click picture left ). It is a cost-effective way to achieve the required particle sizes and production rates for heat-sensitive or tough-to-mill materials.
    Air Cooling Conditioner Test with Nylon Jar Zirconia Balls Milling 30 mins Milling 60mins
    The temperature of the jar without Air Cooling  45°C 65°C
    The temperature of the jar with Air Cooling 35°C 45°C



    Application Notes
    • Attention: To achieve the best grinding effects, it is suggested to use milling balls with a diameter of less than 10mm for a 50ml alumina jar
    • Tips for choosing proper jars and milling media for milling and grinding application:
      • SS mixing jar is suitable for grinding various metal materials
      • For milling the oxide material, please choose Nylon or alumina/zirconia jar and media
    • Please consider our SYU-3 Ultrasonic Filtration System for filtering the product.
    • DO NOT USE stainless steel balls in Alumina jars or vice versa to avoid contamination.
    • Please use N2 gas if it operates inside of the glove-box, do not use Ar gas
    • Bulk samples must be crushed before grinding. Please consider MTI Jaw crusher ( click pic below right )

    ,
    Air Cooling Conditioner Test with Nylon Jar Zirconia Balls Milling 30 mins Milling 60mins
    The temperature of the jar without Air Cooling  45°C 65°C
    The temperature of the jar with Air Cooling 35°C 45°C
    ,
    CONSUMABLES
    Item No. Descriptions QTY Picture
    MJ-3-80SS 80 ml SS jar 1 piece
    SSball SS balls (2pcs 20mm; 2pcs 15mm; 2pcs 12mm; 2pcs 10mm; 4pcs 8mm; 8pcs 6mm) 1 set
    SFM-ACC#02 O.D 55mm, Dia 2.5 Sealing Gasket 1 set
    SFM-ACC#03 Motor driving belt 1 unit
    SFM-ACC#04 Open-end wrench 1 unit
    SFM-ACC#05 Hex-wrench (5mm & 6mm) 1 set
    SFM-ACC#06 Power cord (without plug) 1 unit
    MTI-SFM3-SPRG Base Cushion Springs 6 pieces
    AJ-50 Al2O3 Jar with SS Jacket (50 ml)
    ALOball-3 Alumina Milling Ball
    MJ-3-80VSS Vacuum Stainless Steel Jar (80ml)
    MJ-3-80AC Acrylic Jar (80ml)
    Replacement Part
    MTI-SFM3-Gearbox Gearbox and Container Mount 1 unit
