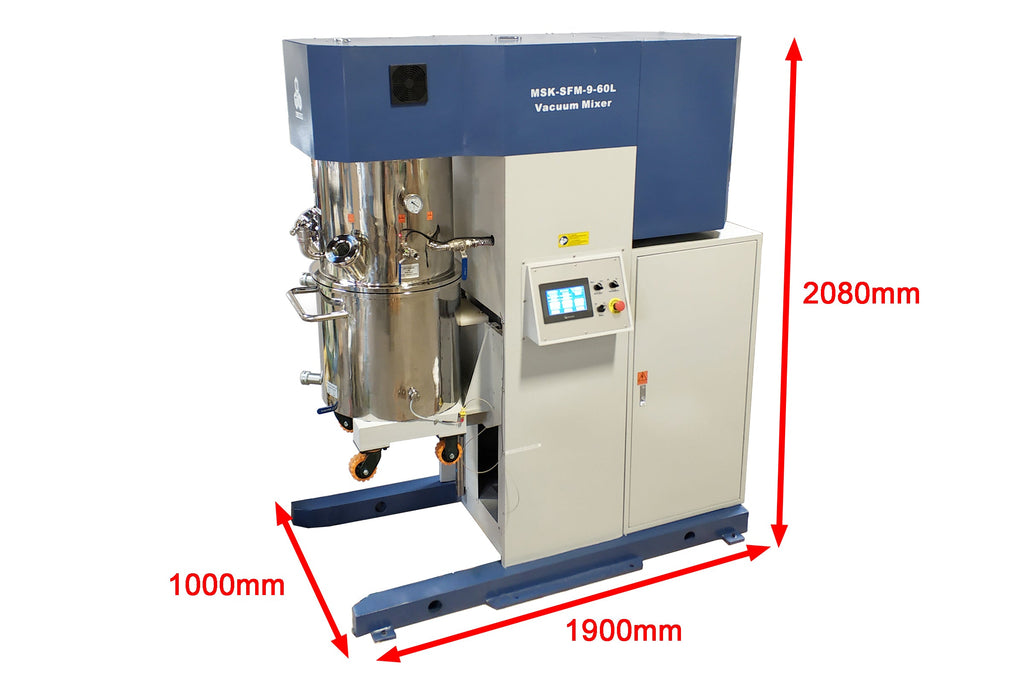

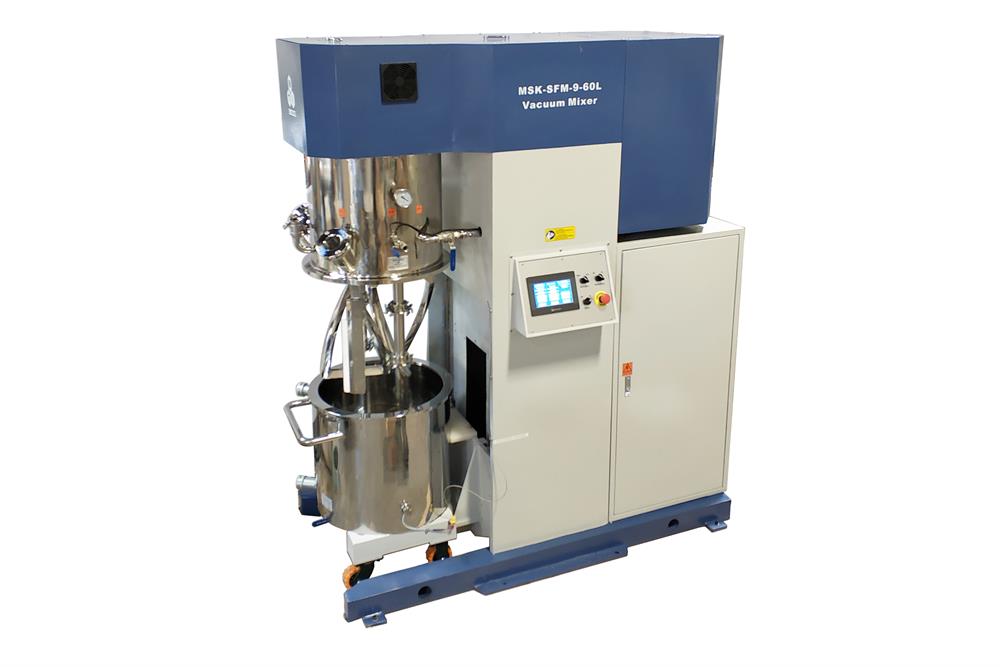

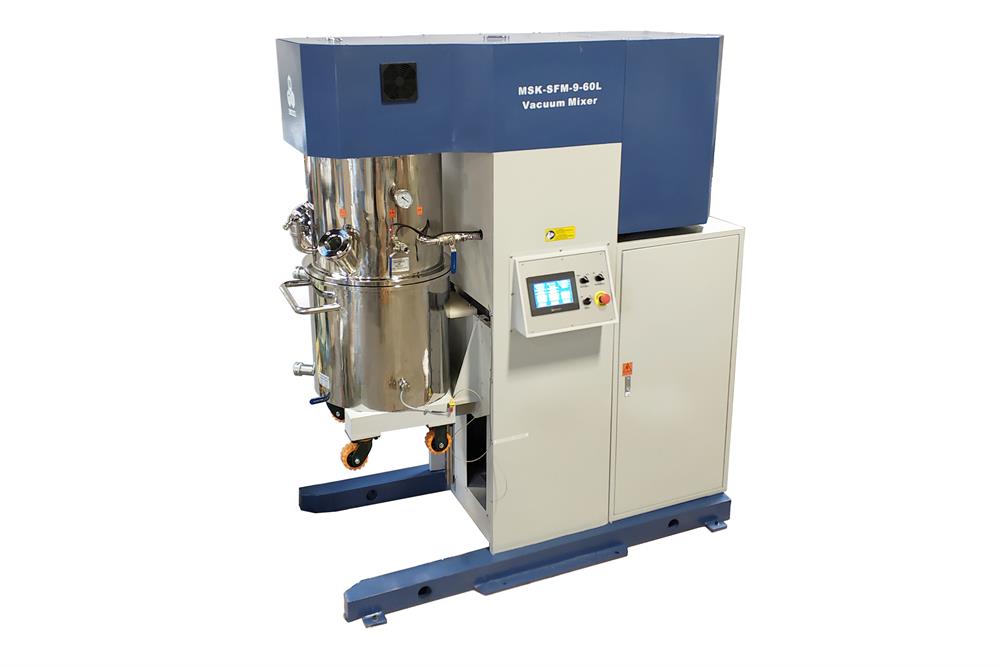

60L or 200L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-60L

SKU: msk-sfm-60l

Price: RFQ

Specifications

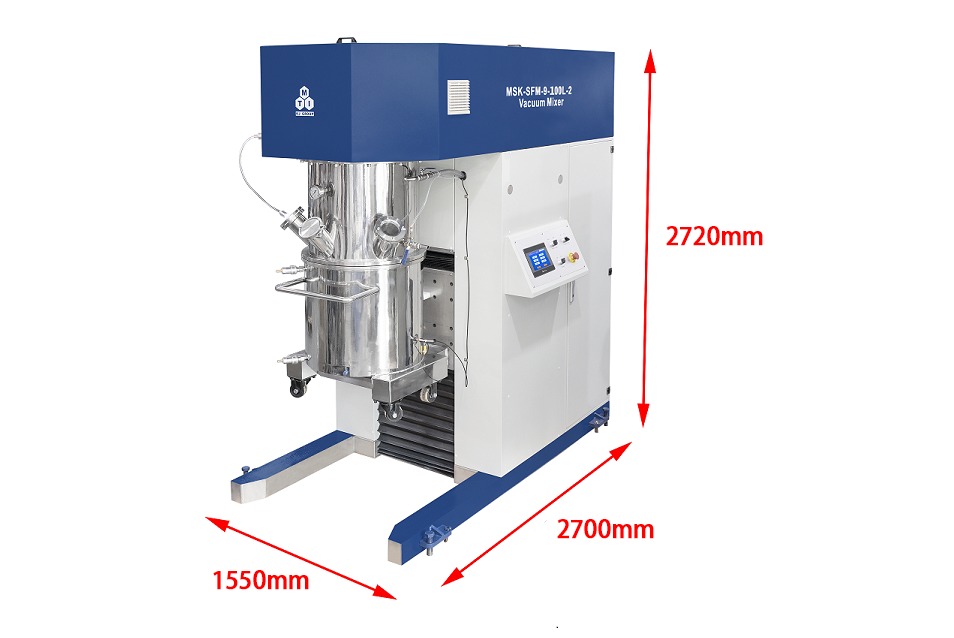

MSK-SFM-60L is a large Vacuum Planetary Mixer with an effective 60-liter container, MSK-SFM-200L with a 200-liter container. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shafts & scraping the walls to make slurry gas-bubble free and with extreme uniformity under vacuum. A temperature-controlled liquid chiller is included to liquid cool the stainless steel mixing tank for high efficiency in mixing. It is excellent for preparing LiCoO3, LiFePO4, phosphors, and ceramic slurry with excellent results in dispersion and uniformity. SPECIFICATIONS Model MSK-SFM-60L MSK-SFM-200L Power Input 220VAC+/- 10% 50/60Hz, Three-phases 460 or 380VAC is available via a transformer Total power: 16 kW The power plug is not included. AC380V+/- 10%, 50Hz, Three-phases 460 is available upon request Total power: 45kW The power plug is not included. Speeds Stirring speed: 0 - 80 rpm, motor: 6.3 kW Dispersing speed: 0 - 3400 rpm, motor: 7.5 kW Stirring speed: 0 - 42 rpm Dispersing speed: 0 - 2400 rpm Viscosity 1k - 100k mPa.s 1k - 100k mPa.s Mixing Barrel Optional: 100 L mixing container is available upon request. Material: SS304 Dimensions: Dia.500mm x H.450mm Nominal Capacity: 88 Liter Effective Capacity: 60 Liter Water cooling jacket Temperature monitor and over-temperature alarm Material: SS304 Dimensions: Ø 750mm I.D. x 650mm Inside Depth Nominal Capacity: 287 Liter Effective Capacity: 200 Liter Water cooling jacket Temperature monitor and over-temperature alarm Mixing Blades Two mixing shafts Two dispersing shafts One Spatula Clearance between blades and bottom: 2-4 mm Clearance between blades and barrel wall: 2-5mm Clearance between two blades: 3-8mm Made of SS304 Two mixing shafts Two dispersing shafts One Spatula Clearance between blades and bottom: 2-4 mm Clearance between blades and barrel wall: 3-9mm Clearance between two blades: 5-10mm Made of SS304 Lift Motor Lifting Motor is a built-in ( 750W) Lifting Motor is a built-in ( 3kW) Vacuum The heavy-duty double-stage vacuum pump: included The vacuum level: -0.098MPa Power: 750 W Water Recirculating Chiller One Digital Temperature Controlled Recirculating Water Chiller with 6 Liters Tank, 16L / min Flow - KJ5000 is included Recirculating oil heater is available as an option for heated mixing or CO2 capture of cement slurry up to 300oC Connected Accessories & Fittings DN100 feed hole Three-piece type ball valve outlet Two DN100 sight glasses One G1/2" vacuum connector with the vacuum pump One G1/2" air outlet One vacuum meter 12mm O.D. water inlet and outlet fittings Compliance CE Certifi20 NRTL certification is available upon request at an extra cost Operation Instructions

Model	MSK-SFM-60L	MSK-SFM-200L
Power Input	220VAC+/- 10% 50/60Hz, Three-phases 460 or 380VAC is available via a transformer Total power: 16 kW The power plug is not included.	AC380V+/- 10%, 50Hz, Three-phases 460 is available upon request Total power: 45kW The power plug is not included.
Speeds	Stirring speed: 0 - 80 rpm, motor: 6.3 kW Dispersing speed: 0 - 3400 rpm, motor: 7.5 kW	Stirring speed: 0 - 42 rpm Dispersing speed: 0 - 2400 rpm
Viscosity	1k - 100k mPa.s	1k - 100k mPa.s

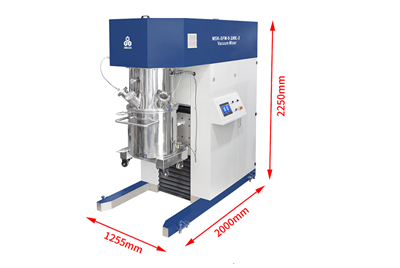

Mixing Barrel Optional: 100 L mixing container is available upon request.	Material: SS304 Dimensions: Dia.500mm x H.450mm Nominal Capacity: 88 Liter Effective Capacity: 60 Liter Water cooling jacket Temperature monitor and over-temperature alarm	Material: SS304 Dimensions: Ø 750mm I.D. x 650mm Inside Depth Nominal Capacity: 287 Liter Effective Capacity: 200 Liter Water cooling jacket Temperature monitor and over-temperature alarm
Mixing Blades	Two mixing shafts Two dispersing shafts One Spatula Clearance between blades and bottom: 2-4 mm Clearance between blades and barrel wall: 2-5mm Clearance between two blades: 3-8mm Made of SS304	Two mixing shafts Two dispersing shafts One Spatula Clearance between blades and bottom: 2-4 mm Clearance between blades and barrel wall: 3-9mm Clearance between two blades: 5-10mm Made of SS304
Lift Motor	Lifting Motor is a built-in ( 750W)	Lifting Motor is a built-in ( 3kW)

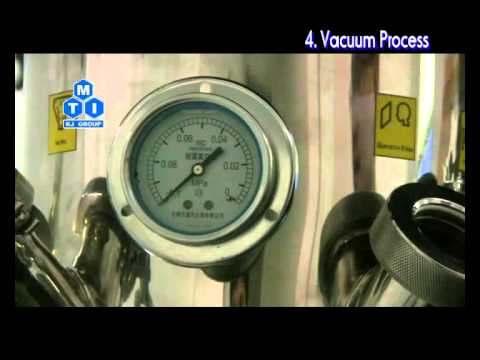

Vacuum	The heavy-duty double-stage vacuum pump: included The vacuum level: -0.098MPa Power: 750 W
Water Recirculating Chiller	One Digital Temperature Controlled Recirculating Water Chiller with 6 Liters Tank, 16L / min Flow - KJ5000 is included Recirculating oil heater is available as an option for heated mixing or CO2 capture of cement slurry up to 300oC
Connected Accessories & Fittings	DN100 feed hole Three-piece type ball valve outlet Two DN100 sight glasses One G1/2" vacuum connector with the vacuum pump One G1/2" air outlet One vacuum meter 12mm O.D. water inlet and outlet fittings
Compliance	CE Certifi20 NRTL certification is available upon request at an extra cost
