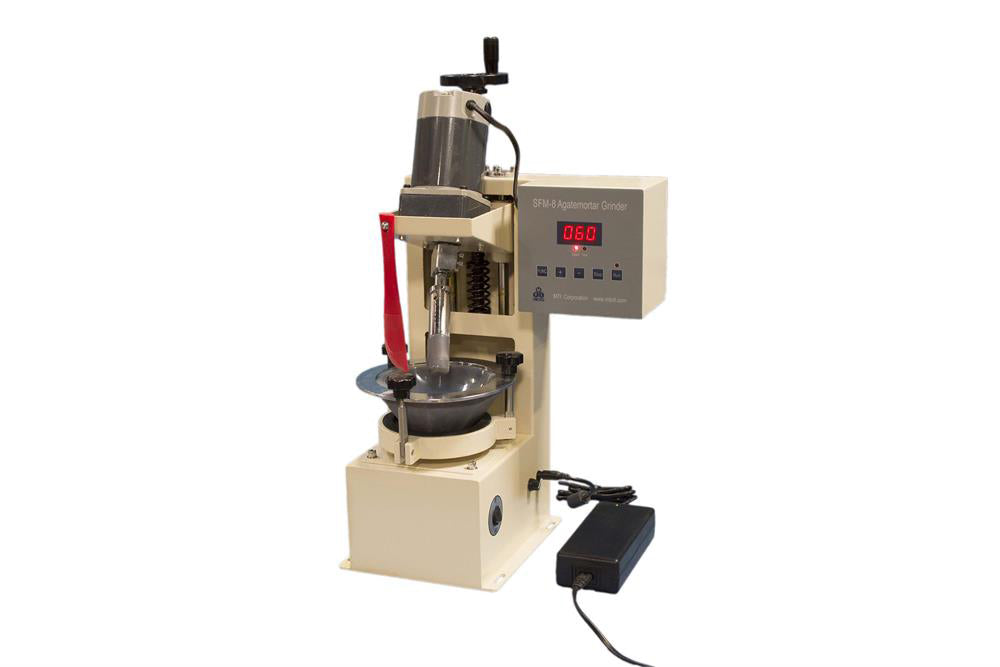

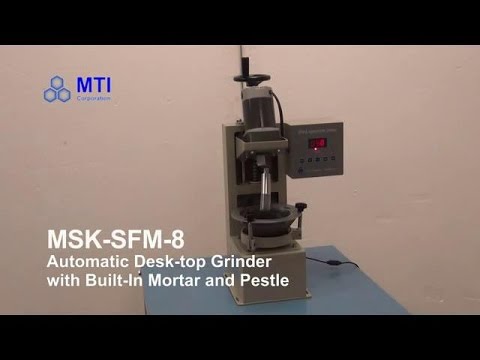

Automatic Desktop Grinder w/ 5" Agate Mortar ( Ar Gas Compatible) - MSK-SFM-8
  • Automatic Desktop Grinder w/ 5" Agate Mortar ( Ar Gas Compatible) - MSK-SFM-8
  • Automatic Desktop Grinder w/ 5" Agate Mortar ( Ar Gas Compatible) - MSK-SFM-8
Automatic Desktop Grinder w/ 5" Agate Mortar ( Ar Gas Compatible) - MSK-SFM-8

Automatic Desktop Grinder w/ 5" Agate Mortar ( Ar Gas Compatible) - MSK-SFM-8

SKU: msk-sfm-8

Price: RFQ

Specifications

 MSK-SFM-8 is designed for grinding & mixing a small batch of chemicals and compounds automatically for the R&D laboratory. Its mortar and height-adjustable pestle are designed for efficient, easy, and uniform grinding. The mortar can be taken off easily for cleaning. It is an excellent tool for preparing various ceramic materials in a research lab to save labor. Grinding time can be set using the automated controller. Minimum granularity can be as small as microns even nanometers. The grinder can be used under Ar gas in a glovebox. SPECIFICATIONS Working Voltage 110- 240V AC via 24V DC power adapter is included for universal using The power adaptor is UL, TUV, CSA, and CE-approved for worldwide use. It can be used in Ar gas glove-box Max. Power Consumption 120W Grinding Bowl and Plastic Spatula 5“ Agate Mortar & Agate Head Pestle included, see Pic.2&3 Mortar Dimensions: Ø120mm x 34mm Dia. A plastic spatula is included for spreading the powder in the grinding bowl (Pic. 4) Pic.1 Pic.2 Pic.3 Pic. 4 Grinding Speed & Pressure Mortar: 0 - 10rpm Pestle: 0 - 80rpm adjustable Grinding pressure is adjustable by spring Compliance CE, TUV, UL, and CSA certified in power supply The machine is safe 24VDC input, which can be used without any safety certification NRT or CSA certification is available upon request at an extra cost Application note Please crush the bulk sample before grinding using our electric Jaw crusher Please consider our SYU-3 ultrasonic filtration system to filter the product. Warning Do not grind samples that have more than 7.5 Mohs hardness scale, the Pestle head or Mortar may have an over pressurizing situation. Do not grind samples O.D larger than 2mm. Do not use any hydrofluoric acid and explosives samples. Wear protective clothing and equipment appropriate for the hazard samples. Do not heat the grinder, or put it in a dry oven for drying. In order to avoid overpressurization of the Pestle Head, the grinding process should be step by step, increasing pressure by applying only half turn each time, and the Pestle head has a compressive depth

Working Voltage

  • 110- 240V AC via 24V DC power adapter is included for universal using
  • The power adaptor is UL, TUV, CSA, and CE-approved for worldwide use.
  • It can be used in Ar gas glove-box
Max. Power Consumption 120W
Grinding Bowl and Plastic Spatula
  • 5“ Agate Mortar & Agate Head Pestle included, see Pic.2&3
  • Mortar Dimensions: Ø120mm x 34mm Dia.
  • A plastic spatula is included for spreading the powder in the grinding bowl (Pic. 4)

  • Pic.1 Pic.2Pic.3  Pic. 4


Grinding Speed & Pressure
  • Mortar: 0 - 10rpm
  • Pestle: 0 - 80rpm adjustable
  • Grinding pressure is adjustable by spring
Compliance
  • CE, TUV, UL, and CSA certified in power supply
  • The machine is safe 24VDC input, which can be used without any safety certification
  • NRT or CSA certification is available upon request at an extra cost
Application note



Warning
  • Do not grind samples that have more than 7.5 Mohs hardness scale, the Pestle head or Mortar may have an over pressurizing situation.
  • Do not grind samples O.D larger than 2mm.
  • Do not use any hydrofluoric acid and explosives samples.
  • Wear protective clothing and equipment appropriate for the hazard samples.
  • Do not heat the grinder, or put it in a dry oven for drying.
  • In order to avoid overpressurization of the Pestle Head, the grinding process should be step by step, increasing pressure by applying only half turn each time, and the Pestle head has a compressive depth
