2 Liter Four-Shaft (Two Dispersing, Two Stirring) Planetary Vacuum Mixer with Vacuum Pump & Water Chiller-MSK-SFM-9-2L
  • 2 Liter Four-Shaft (Two Dispersing, Two Stirring) Planetary Vacuum Mixer with Vacuum Pump & Water Chiller-MSK-SFM-9-2L
  • 2 Liter Four-Shaft (Two Dispersing, Two Stirring) Planetary Vacuum Mixer with Vacuum Pump & Water Chiller-MSK-SFM-9-2L
  • 2 Liter Four-Shaft (Two Dispersing, Two Stirring) Planetary Vacuum Mixer with Vacuum Pump & Water Chiller-MSK-SFM-9-2L
  • 2 Liter Four-Shaft (Two Dispersing, Two Stirring) Planetary Vacuum Mixer with Vacuum Pump & Water Chiller-MSK-SFM-9-2L
  • 2 Liter Four-Shaft (Two Dispersing, Two Stirring) Planetary Vacuum Mixer with Vacuum Pump & Water Chiller-MSK-SFM-9-2L
  • 2 Liter Four-Shaft (Two Dispersing, Two Stirring) Planetary Vacuum Mixer with Vacuum Pump & Water Chiller-MSK-SFM-9-2L
2 Liter Four-Shaft (Two Dispersing, Two Stirring) Planetary Vacuum Mixer with Vacuum Pump & Water Chiller-MSK-SFM-9-2L

2 Liter Four-Shaft (Two Dispersing, Two Stirring) Planetary Vacuum Mixer with Vacuum Pump & Water Chiller-MSK-SFM-9-2L

SKU: msk-sfm-9-2l

Price: RFQ

Specifications

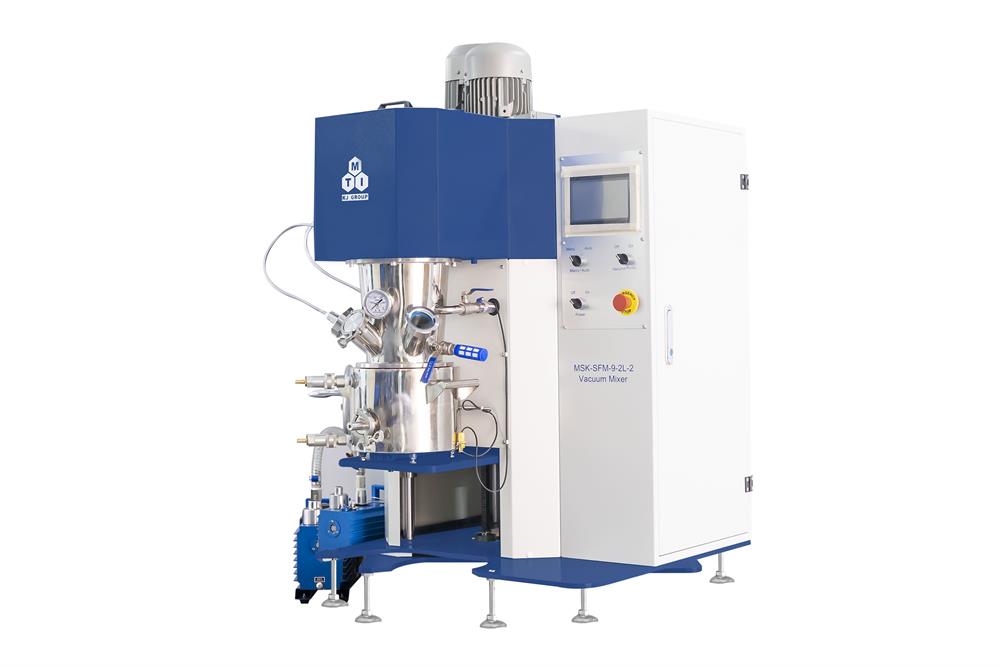

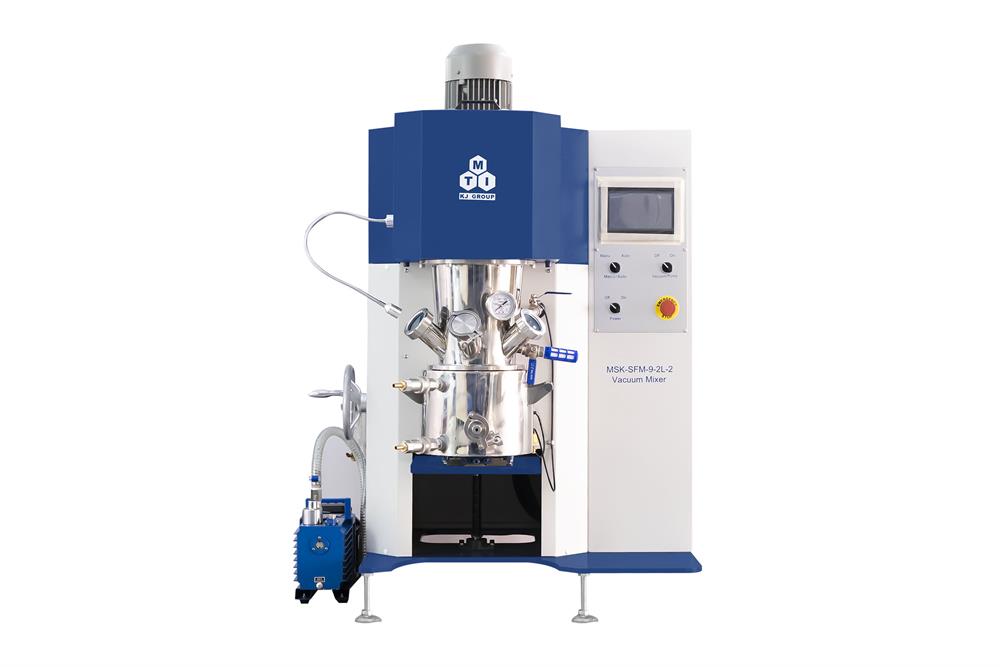

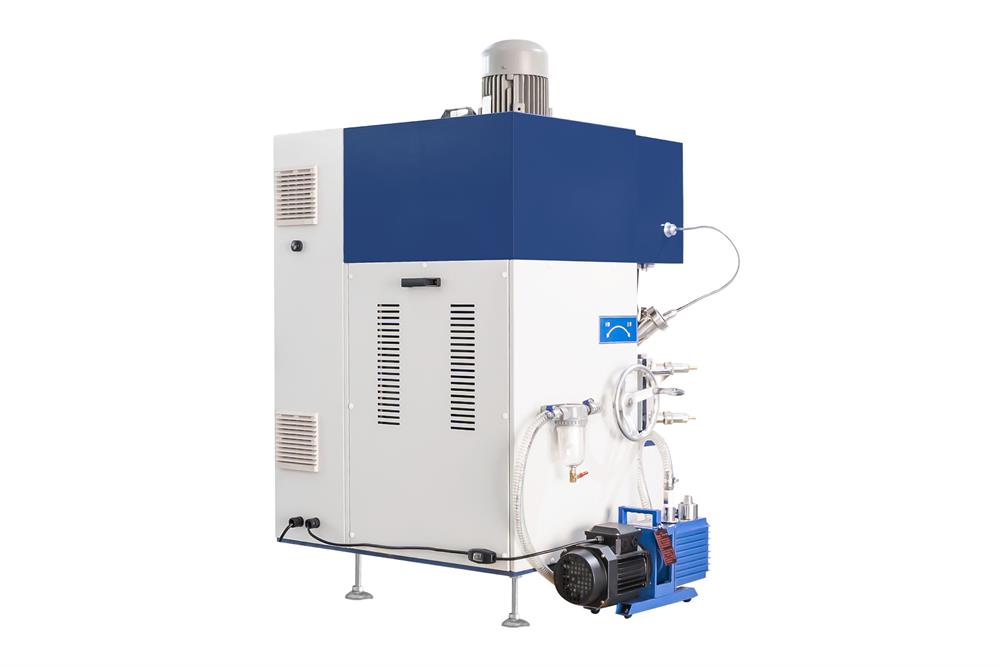

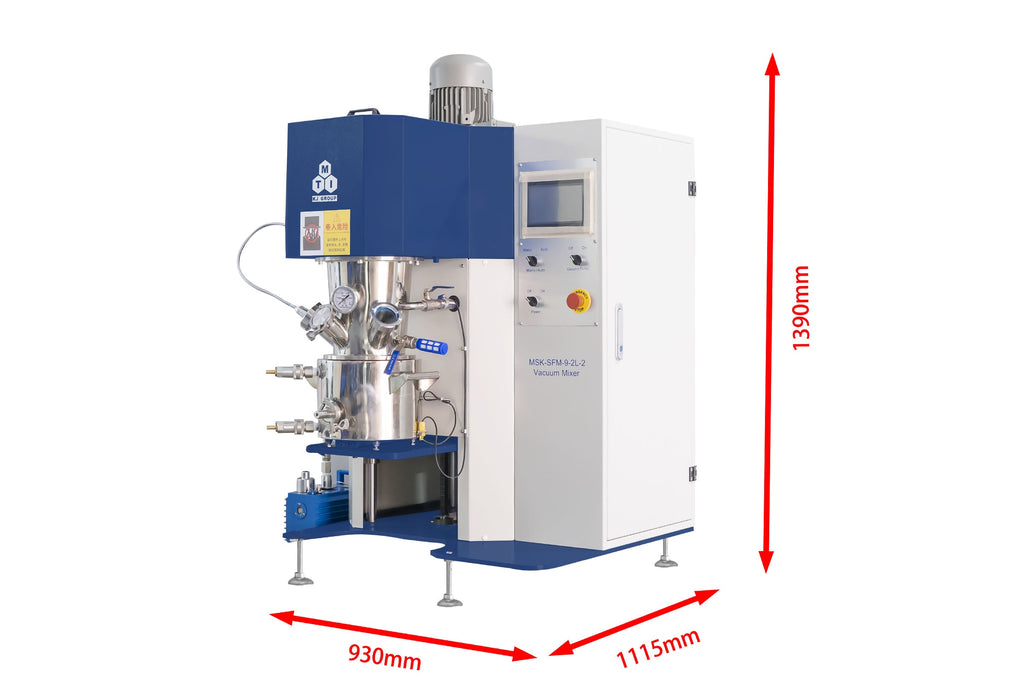

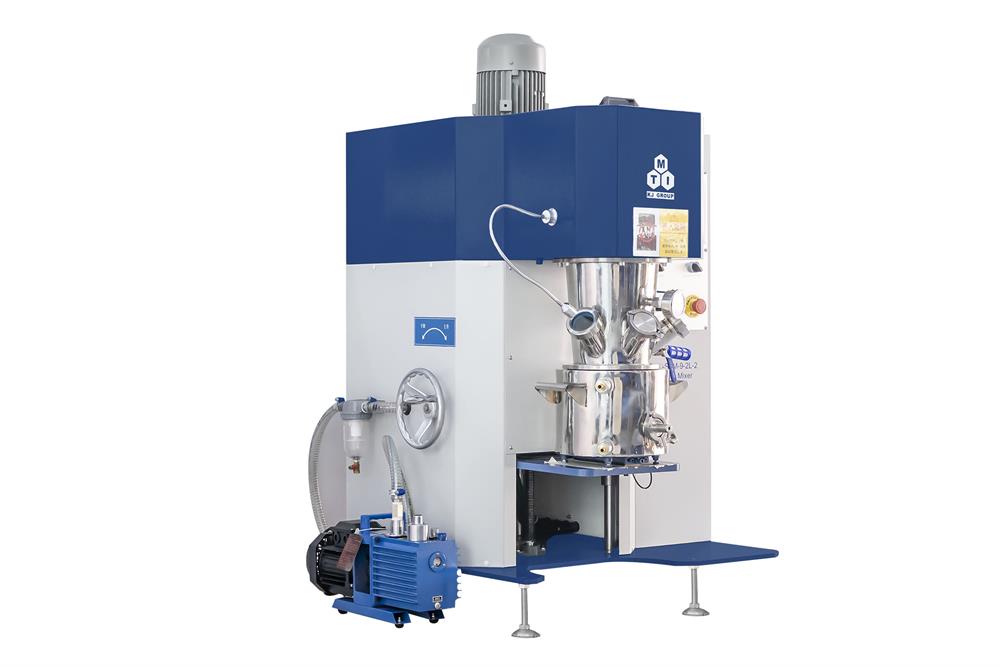

 MSK-SFM-9-2L is a Four-shaft (two dispersing, two stirring) planetary vacuum mixer with a 2-liter container and PLC Touch Panel Control. Such a vacuum mixer incorporates the unique dual-shaft stirring design to ensure a gas-bubble-free blending of complex materials under vacuum with extreme uniformity. Furthermore, an observation window on the mixing tank provides a better way to monitor the entire mixing process. MSK-SFM-9-2L is an excellent tool for preparing LiCoO3, LiFePO4, Phosphorus, and ceramic slurries and provides much better results in dispersion and uniformity. SPECIFICATIONS Working Voltage 208 - 240V AC, 50/60Hz, Single phase, 3kW Mixing Method/Blades Rotation + Revolution Dual Stirring Blades+ Dual Dispersing Blades + One Spatula Speed Stirring Seed: 2-112 rpm (suggested lower limit speed as 5 rpm) Dispersing Speed: 0-3800 rpm (suggested lower limit speed as 100 rpm) Viscosity Max. 100000 mPa·s (cps) Vacuum Rate -0.098 Mpa (without slurry loading) Mixing Tank Total Volume: 3.0 Liter Effective Capacity for Mixing: 2.0 Liter Inner Diameter: 180mm Inside Depth: 130mm Material: SUS304 Mixing Blades Two Stirring Blades Two Dispersing Blades One Spatula Material: SS304 Vacuum Pump One double-step rotary vane vacuum pump is included Cooling Unit One water chiller with 9L tank - EQ-KJ3000 is included Compliance CE Certified NRTL or CSA certification is available upon request at an extra cost

Working Voltage
  • 208 - 240V AC, 50/60Hz, Single phase, 3kW
Mixing Method/Blades
  • Rotation + Revolution
  • Dual Stirring Blades+ Dual Dispersing Blades + One Spatula
Speed
  • Stirring Seed: 2-112 rpm (suggested lower limit speed as 5 rpm)
  • Dispersing Speed: 0-3800 rpm (suggested lower limit speed as 100 rpm)
Viscosity
  •  Max. 100000 mPa·s (cps)
Vacuum Rate
  • -0.098 Mpa (without slurry loading)
Mixing Tank
  • Total Volume: 3.0 Liter
  • Effective Capacity for Mixing: 2.0 Liter
  • Inner Diameter: 180mm
  • Inside Depth: 130mm
  • Material: SUS304
Mixing Blades
  • Two Stirring Blades
  • Two Dispersing Blades
  • One Spatula
  • Material: SS304
Vacuum Pump
Cooling Unit
Compliance
