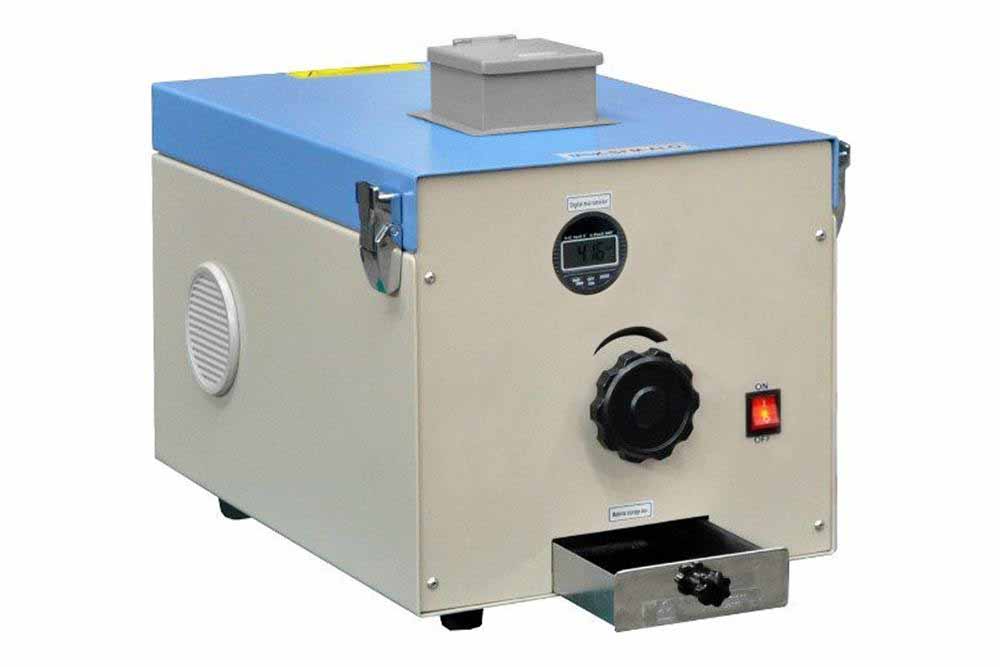

Compact Ceramic Jaw Crusher / Mill with Digital Size Control - MSK-SFM-ALO

MSK-SFM-ALO is a compact electric jaw crusher with an adjustable digital crushing size controller. Two jaw plates are made of high purity alumina to avoid metallic contamination while crushing materials. It is useful to break up sintered blocks prior to ball milling and saves the researcher labor and time.

Working Voltage	208 - 240VAC 50/ 60 Hz, 500W (110 AC version will be included 1000W transformer)
Crushing Speed	400 times per minute
Jaw Plates	Two high purity alumina plates Upgrade option: high purity manganese steel plate Easy to clean. (The sample inlet and outlet are made of stainless steel which can be cleaned with a brush.) 90mm x 25mm loading port
Crushing Size	Input: Material Hardness must be < Mohs 8 Sample size: 5 - 20 mm diameter or thickness ~ 200 g of input materials can be added at once Output:  Output size : 0.1 mm - 3 mm (adjustable via a digital micrometer). Crushing quantity: ~ 200 g is accepted by underneath drawer each time. Using a slide plate instead of the drawer, continuous output of samples can be achieved with continuous feeding of input materials. ( Sliding plate is optional at $200 extra ) Output grain size depends on the material properties (Hardness, elasticity, etc.)
Compliance	CE certified
Application Note	Please may order Compact Ultrasonic Sieving System to filter particle after crushing For fine grinding, please crush bulk sample before grinding. Please consider MTI Ball Mill ( wet milling) and jet mill ( dry milling) ( click pic below right )
