High Throughput Roll Rotating Mixing Machine w/ 16 Tubes - MSK-SFM-HT16
  • High Throughput Roll Rotating Mixing Machine w/ 16 Tubes - MSK-SFM-HT16
  • High Throughput Roll Rotating Mixing Machine w/ 16 Tubes - MSK-SFM-HT16
  • High Throughput Roll Rotating Mixing Machine w/ 16 Tubes - MSK-SFM-HT16
  • High Throughput Roll Rotating Mixing Machine w/ 16 Tubes - MSK-SFM-HT16
High Throughput Roll Rotating Mixing Machine w/ 16 Tubes - MSK-SFM-HT16

High Throughput Roll Rotating Mixing Machine w/ 16 Tubes - MSK-SFM-HT16

SKU: msk-sfm-ht16

Price: RFQ

Specifications

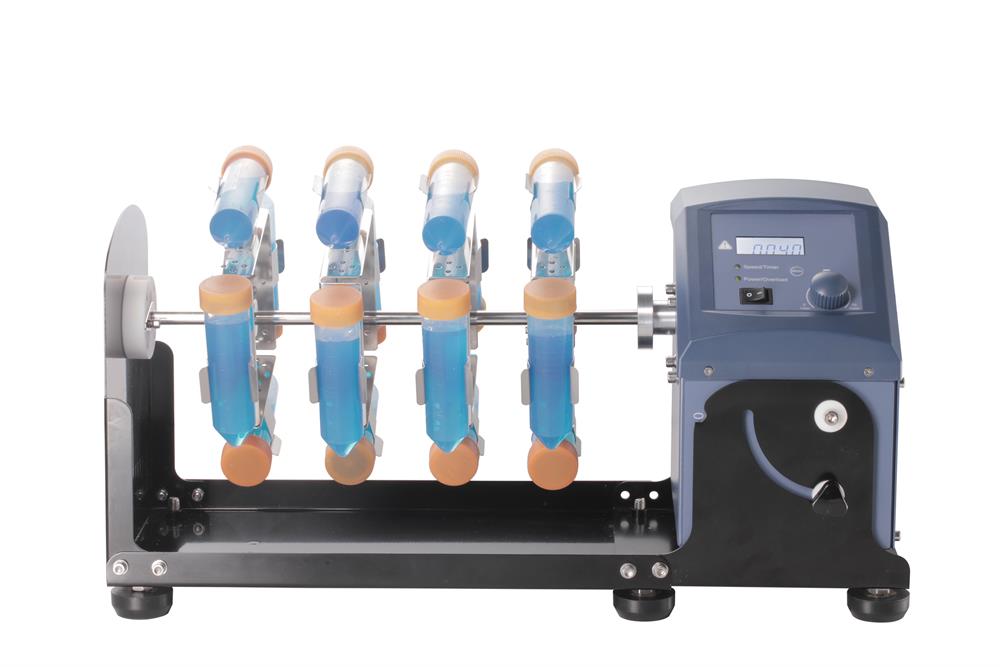

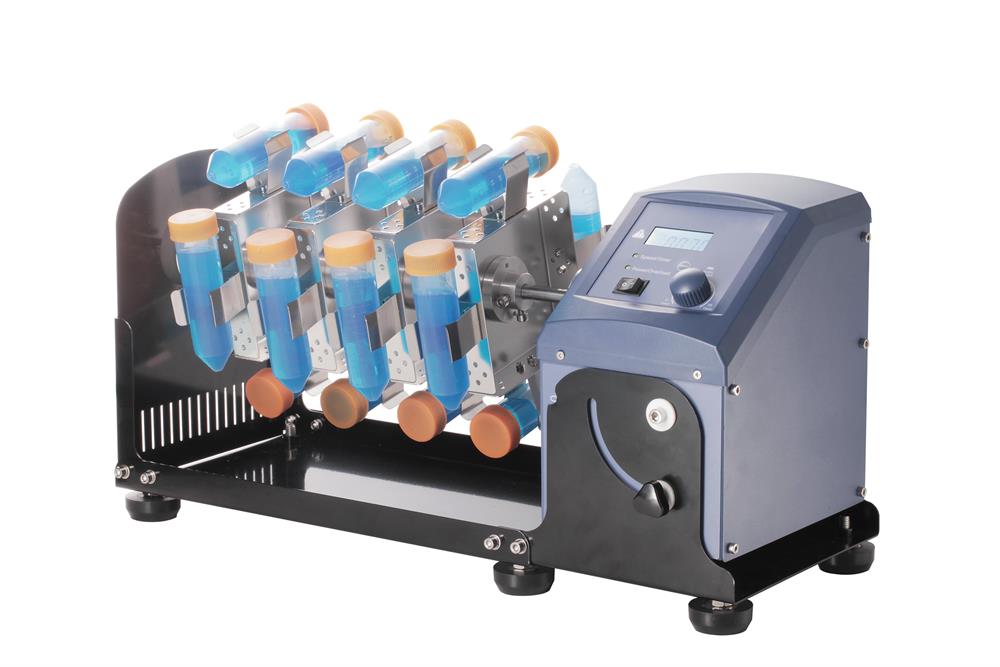

 MSK-SFM-HT16 is a high throughput mixing and milling machine that has 16 tube positions with 50 ml capacity. The special roll rotating mixing tank is designed for grinding and mixing dry powders in short periods of time for 16 kinds of composition. The control knob enables the rotary speed and time duration of the mixing session to be programmed easily. The mixer can be used inside the glove box under Ar gas because of 24VD Motor Driven. It is an excellent tool for material MGI research. SPECIFICATIONS Features 16 Roll Rotating mixing tube positions. LCD display and simple control interface provides easy programming of mixing operations AC 110 - 220 V to DC 24V power adapter is included for universal use The mixer can be used inside the glovebox under Ar or N2 gas Input Voltage AC 110- 220 V, 50/60Hz input Power: 40 W The power adaptor to 24VDC is UL, TUV, CSA, and CE approval for worldwide use Timer Setting Range 1~1199 min Rotary Speed 10~70 rpm Tube Rack Two types of tube rack is included for immediate use: for 50ml x 16 centrifuge tubes. (Pic.1) for 1.5ml x 32 centrifuge tubes. (Pic.2) An optional tube rack for 15ml x 16 centrifuge tubes is available at extra cost. pic.1                  pic.2 Milling tubes QTY 20 x 50ml tubes are included (usually for 20 grams max. Metallic powder) QTY 50 x 1.5ml tubes are included Customized tube size is available upon request Grinding balls 1KG total of YSZ milling balls of various sizes (10mm, 8mm, 5mm, and 3mm) are included for immediate use. For extra milling balls, please click the picture left to order the grinding balls made of stainless steel, alumina YSZ, and Agate at extra cost . For grinding: please choose larger balls For Milling: please choose small and large balls combination Compliance CE, TUV, UL, CSA certified in power supply The machine is safe 24VDC input which can be used without any safety certification

Features
  • 16 Roll Rotating mixing tube positions.
  • LCD display and simple control interface provides easy programming of mixing operations
  • AC 110 - 220 V to DC 24V power adapter is included for universal use
  • The mixer can be used inside the glovebox under Ar or N2 gas
Input Voltage
  • AC 110- 220 V, 50/60Hz input
  • Power: 40 W
  • The power adaptor to 24VDC is UL, TUV, CSA, and CE approval for worldwide use
Timer Setting Range 1~1199 min
Rotary Speed  10~70 rpm
Tube Rack Two types of tube rack is included for immediate use:
  • for 50ml x 16 centrifuge tubes. (Pic.1)
  • for 1.5ml x 32 centrifuge tubes. (Pic.2)
An optional tube rack for 15ml x 16 centrifuge tubes is available at extra cost.

        pic.1                  pic.2
Milling tubes
  • QTY 20 x 50ml tubes are included (usually for 20 grams max. Metallic powder)
  • QTY 50 x 1.5ml tubes are included
  • Customized tube size is available upon request
Grinding balls
 1KG total of YSZ milling balls of various sizes (10mm, 8mm, 5mm, and 3mm) are included for immediate use.
For extra milling balls, please click the picture left to order the grinding balls made of stainless steel, alumina YSZ, and Agate at extra cost.
  • For grinding: please choose larger balls
  • For Milling: please choose small and large balls combination
Compliance
  • CE, TUV, UL, CSA certified in power supply
  • The machine is safe 24VDC input which can be used without any safety certification
