| Input Power |
-
100~240 VAC, single-phase, 50/60 Hz
- Max power consumption: 280 W
- NRTL certified Power Adaptor for 100~240 VAC to 24 VDC (rated 70W)
|
High Voltage Power Supply
|
|

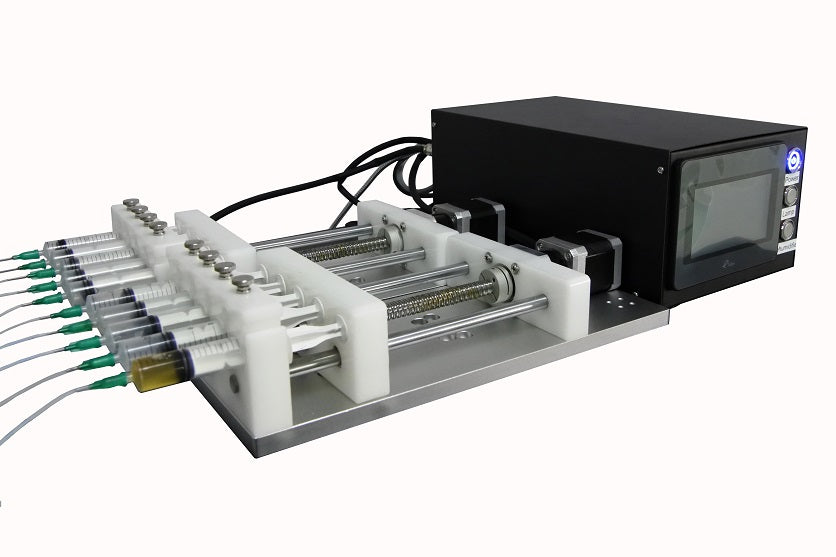

Dual-Channel Syringe Pump

|
- Two syringe pumps are installed with the independent operation
- Each pump can install 5 nozzles for spraying at the same injection rate at the same time.
- Pumping rate: 0.01 mL/h ~ 99.99 mL/h adjustable for each pump
- 10 nozzle can injection at the same time for a different solution.
|
Swing Fixture
|
- Swing head is built inside the hood with adjustable speed by the control panel
-
Oscillation distance: 0 - 280 mm adjustable
- Oscillation speed: 0 - 300 mm/minute adjustable
- Total 10 nozzles can be installed on the fixture and injection during oscillation
- Each nozzle will connect to the syringe pump via the included PTFE tubes
|
Injection Nozzles
|
Standard Package:
- One (1) Multi-nozzle Fixture
- Ten (10) Stainless Steel 23G Blunt Needles with 0.33mm I.D.
-
Ten (10) 23G Blunt Needles (0.33 mm ID, Orange)
- Ten (10) Luer Lock Connectors
- 18S PTFE connecting tubes (1.97 mm OD, 1.07 mm ID)
- Ten (10) 18G Syringe Nozzles (Green)
- One (1) piece of Co-axial Nozzle with Dual Inlets is included. It allows you to inject two kinds of fiber-forming solutions in one nozzle. The extra Co-axial Nozzle is available at extra cost. Please click Pic.1 to order.
- Please contact MTI to order extra accessories, as shown in Pic.3
-
 Pic. 1  Pic. 2  Pic.3
-
Tri-axial Nozzle is available upon request (not included).
|
Collectors
|
- Two types of collectors are included as standard accessories:
- Mandrel collectors for electrospinning (Pic. 1)
- Size: 76mm Dia. x 200mm L.
- Speed: 1 - 1000 rpm (can be upgraded to high-speed collector: max 4500 rpm)
- Plate collector for nanofiber-collecting (Pic. 2) (place in front of mandrel collector without moving)
- 230 mm x 230 mm x 4 mm thick stainless steel plate with grounding
- Optional: Movable Plate connector with speed control is available at the extra cost (click Pic. 3-4 to order )
 Pic. 1  Pic. 2  Pic. 3  Pic. 4
|
Heating Control (optional)

|
- Heating function with height-adjustable fixture and temperature controller is available at extra cost.
-
Ceramic Heating Element - EQ-HT-C500
- Voltage: 120V AC (for 240V, please contact MTI)
- Power: 500 W
- Max temperature on Collector: 80 °C
- Dimensions: 245 L × 60 W mm
- Temperature Controller - EQ-BTC-201
- Resolution: 0.1 °C
- Working Mode: On/Off control
|

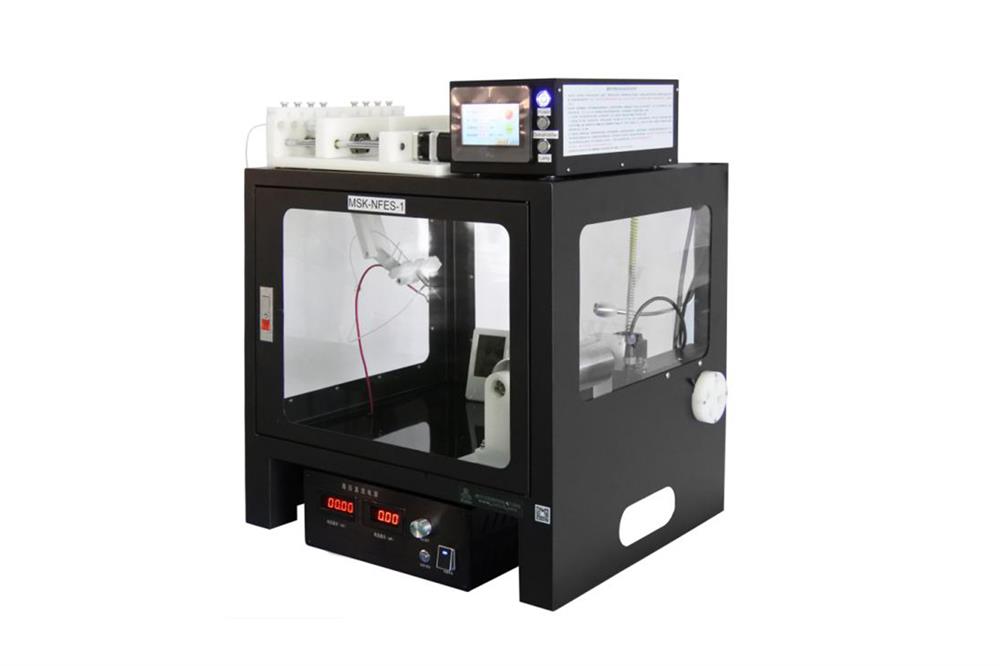

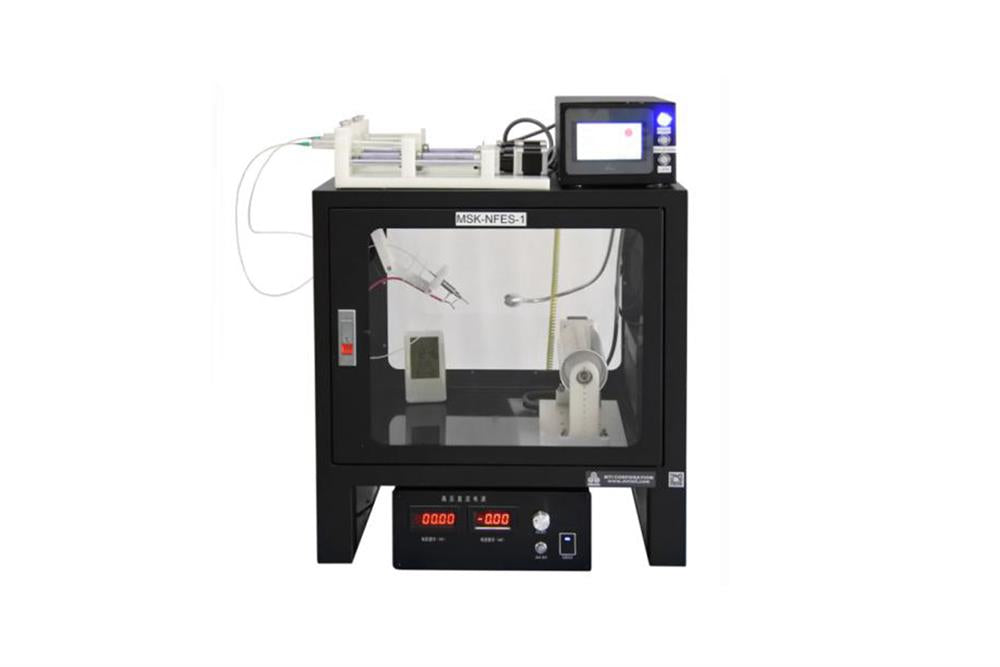

Fume Hood
|
- A small unit of a fume hood with nozzles, collector, fan system, and lights inside
- Transparent glass windows on the front and both sides for easy monitoring of the electrospinning process
- Footprint: 560 mm (L) x 480 mm (W) x 590 mm (H)
|
| Controller |
- A touch screen controller which controls pumping speed, collector rotary speed, nozzle moving speed, and exhaust fan
|
Humidity Monitor
|
- A humidity monitor is integrated into the fume hood for monitoring the humidity level (RH%) ranging from 2% - 95% (Click left picture for more details)
|
| Warranty |
- One-year limited warranty with lifetime support (demo before purchase available)
|
| Compliance |
- CE certified
- NRTL or CSA certification is available upon request
|
Dimensions
|
-
560 mm (L) x 480 mm (W) x 730 mm (H)
- Weight: 40 KG
|
