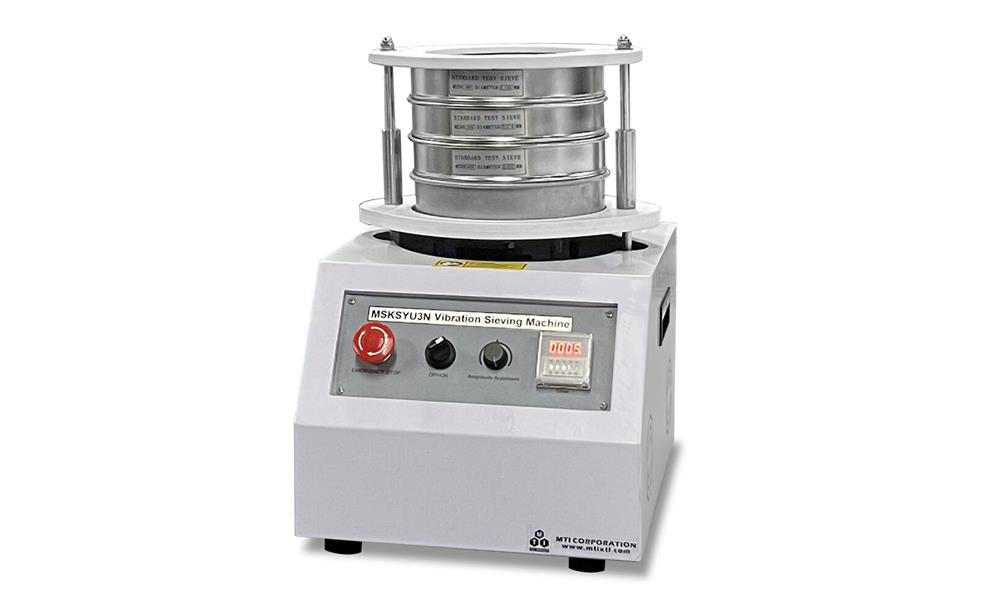

Vibration Sieving System with Three Sieves (100, 200, 450 Mesh) - MSKSYU3N
  • Vibration Sieving System with Three Sieves (100, 200, 450 Mesh) - MSKSYU3N
  • Vibration Sieving System with Three Sieves (100, 200, 450 Mesh) - MSKSYU3N
  • Vibration Sieving System with Three Sieves (100, 200, 450 Mesh) - MSKSYU3N
  • Vibration Sieving System with Three Sieves (100, 200, 450 Mesh) - MSKSYU3N
Vibration Sieving System with Three Sieves (100, 200, 450 Mesh) - MSKSYU3N

Vibration Sieving System with Three Sieves (100, 200, 450 Mesh) - MSKSYU3N

SKU: msksyu3n

Price: RFQ

Specifications

 MSKSYU3N is a desktop vibration sieving system with a built-in microprocessor that adjusts vibration time according to the material's load. SPECIFICATIONS Power Requirements Input: 208V-240V 50/60Hz Power: 400W 110VAC is available via a 500W transformer Motor Speed 400 - 1400 r/min Dimension (W×D×H) Sieve System: 330 × 420 × 485 (mm) (W x D x H) Sieve: I.D. 200 × 40 H (mm) Three Sieves are included with 100, 200, and 450 mesh (equivalent to 149, 74, 32 microns) Max. Load 1kg Work Mode Continuous STANDARD PACKAGE Item No. Descriptions Qty MSKSYU3N Vibration Sieving System 1 unit SYU-Sieve (Dia 200mm*40mm H) Sieve, three pieces in mesh 100, 200, and 450. 1 set

Power Requirements Input: 208V-240V 50/60Hz
Power: 400W
110VAC is available via a 500W transformer
Motor Speed 400 - 1400 r/min

Dimension (W×D×H)

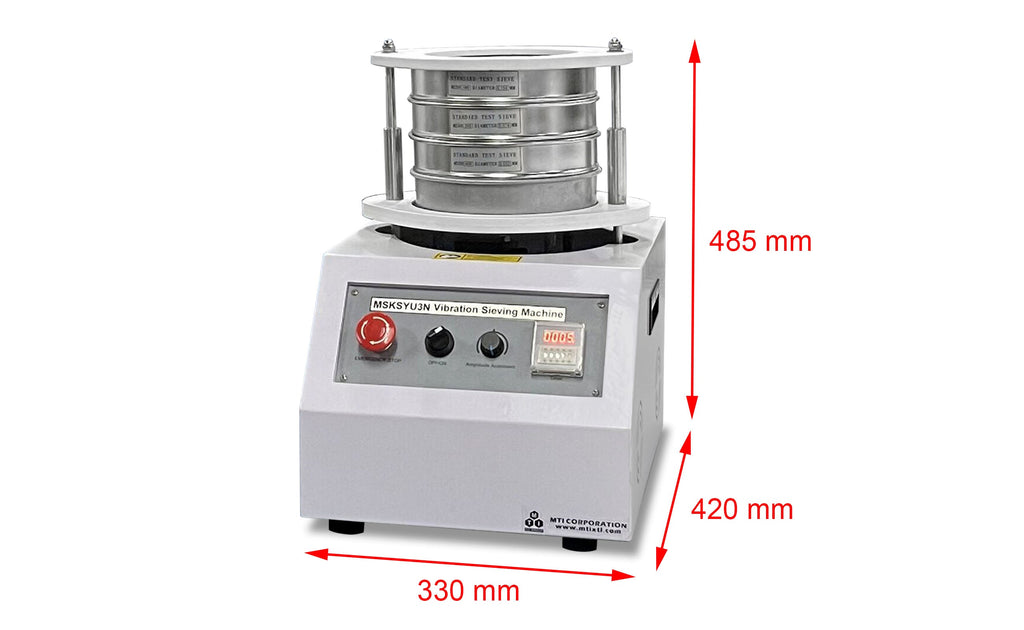

 Sieve System: 330 × 420 × 485 (mm) (W x D x H)
Sieve: I.D. 200 × 40 H (mm)
Three Sieves are included with 100, 200, and 450 mesh (equivalent to 149, 74, 32 microns)
Max. Load
1kg
Work Mode
Continuous
,
STANDARD PACKAGE
Item No. Descriptions Qty
MSKSYU3N Vibration Sieving System 1 unit

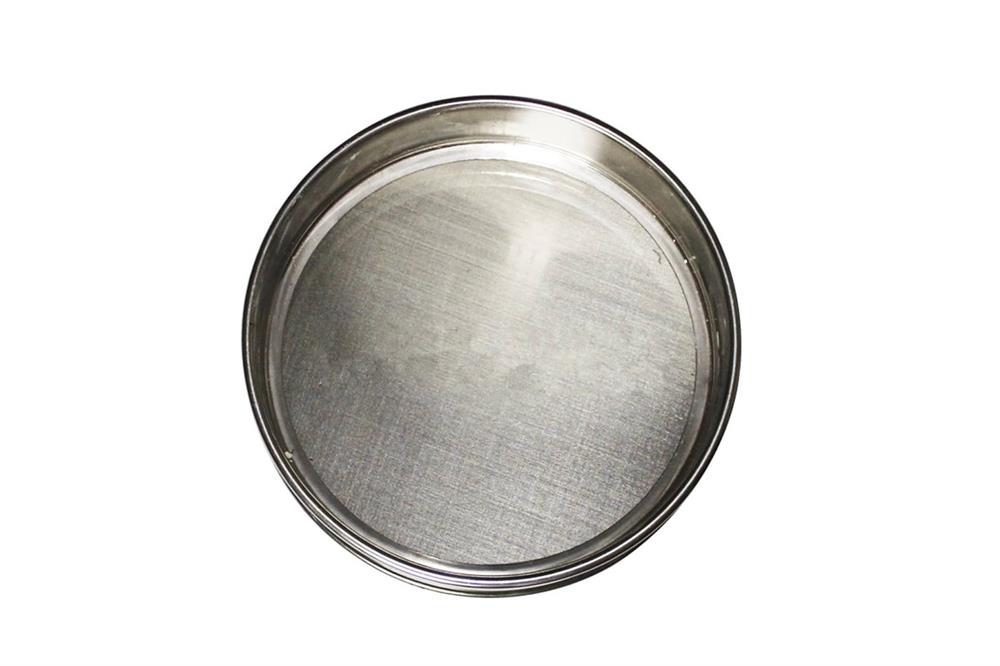

SYU-Sieve (Dia 200mm*40mm H) Sieve, three pieces in mesh 100, 200, and 450.  1 set
