1200°C Max. Compact Tube Furnace (50mm OD) with Precision TGA Function - OTF-1200S-TGA
  • 1200°C Max. Compact Tube Furnace (50mm OD) with Precision TGA Function - OTF-1200S-TGA
  • 1200°C Max. Compact Tube Furnace (50mm OD) with Precision TGA Function - OTF-1200S-TGA
  • 1200°C Max. Compact Tube Furnace (50mm OD) with Precision TGA Function - OTF-1200S-TGA
  • 1200°C Max. Compact Tube Furnace (50mm OD) with Precision TGA Function - OTF-1200S-TGA
1200°C Max. Compact Tube Furnace (50mm OD) with Precision TGA Function - OTF-1200S-TGA

1200°C Max. Compact Tube Furnace (50mm OD) with Precision TGA Function - OTF-1200S-TGA

SKU: otf-1200s-tga

Price: RFQ

Specifications

 OTF-1200S-TGA is a compact tube furnace with a precision TGA (thermal gravimetric analysis) function.  It is a cost-effective and space-saving tool to analyze the phase transition of various materials up to 1200 °C  under a controlled atmosphere to find the phase transition. Also, it can be used for small sample annealing or sintering. SPECIFICATIONS Furnace Structure Split compact tube furnace with quartz tube ( click picture left for specs ) High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency. 200 mm heating zone length  70 mm constant temperature zone within +/- 10oC) Precision temperature controller ±0.1 ºC accuracy One standard KF25 port, one φ6.35mm gas inlet, one quartz observation window, and one relief valve Thermocouple K Type Power 220V AC, 50Hz 1500W Max Working Temperature Continuous: 1200 with flowing gases Max. 1000oC under vacuum Heating Rate ≤20/min Tem perature Controllers Eurotherm temperature controller 10 Segments of programmable temperature control via a dedicated computer and software Data can be logged and exported +/- 0.1 ºC temperature accuracy Electronic Balance A precision electronic balance ( made in Germany ) is located in the bottom of the heating chamber Accuracy:  0.001 g resolution Sample amount: 1 g minimum;   10 g maximum Crucibles Four alumina crucibles (8 mL) are included Alumina Crucible: High Purity 25 dia. x 25H mm ( 8 ml) Cylindrical with Lid - EQ-CA-D25H25 Vacuum pump (optional) The TGA  can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pump Pic. 2) Please click the picture below to order the pump and gas delivery system (Pic 3separately: Automation Option A high-throughput system with robotics is available for autonomous operation for two to four TGA furnaces Warranty One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.) Compliance CE Certified NRTL or CSA certification is available upon request at extra cost. Dimension 700*600*1800mm Reference Video Demo                   Installation and Operation

 Furnace Structure
  • Split compact tube furnace with quartz tube ( click picture left for specs )
  • High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
  • 200 mm heating zone length  70 mm constant temperature zone within +/- 10oC)
  • Precision temperature controller ±0.1 ºC accuracy
  • One standard KF25 port, one φ6.35mm gas inlet, one quartz observation window, and one relief valve
            Thermocouple
            • K Type
            Power
            • 220V AC, 50Hz
            • 1500W Max
            Working Temperature
            • Continuous: 1200 with flowing gases
            • Max. 1000oC under vacuum
            Heating Rate
            •  ≤20/min
            Temperature Controllers
            • Eurotherm temperature controller
            • 10 Segments of programmable temperature control via a dedicated computer and software
            • Data can be logged and exported
            • +/- 0.1 ºC temperature accuracy
            Electronic Balance

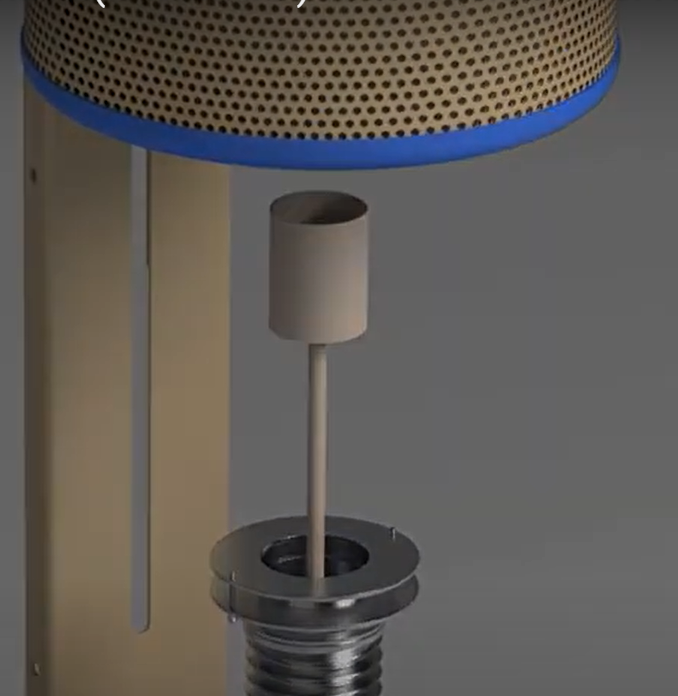

            • A precision electronic balance ( made in Germany ) is located in the bottom of the heating chamber
            • Accuracy:  0.001 g resolution
            • Sample amount: 1 g minimum;   10 g maximum
            Crucibles
            Vacuum pump (optional)
            • The TGA  can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pump Pic. 2)
            • Please click the picture below to order the pump and gas delivery system (Pic 3separately:
            •
             Automation Option

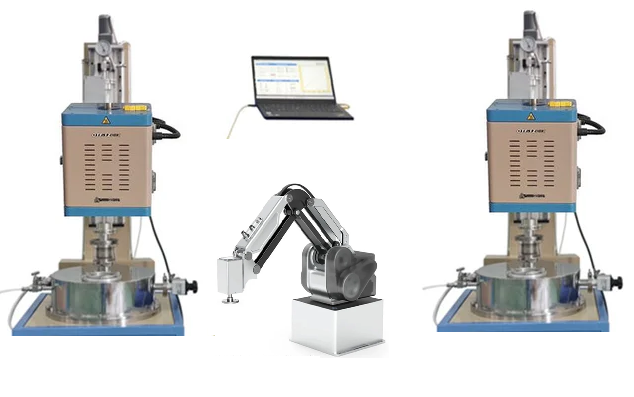

            • A high-throughput system with robotics is available for autonomous operation for two to four TGA furnaces

             Warranty
            • One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

             Compliance
            • CE Certified
            • NRTL or CSA certification is available upon request at extra cost.

            Dimension
             700*600*1800mm

            Reference Video

            		                Demo                   Installation and Operation
