1200°C 3-Zone Ash Collection Tube Furnace - OTF-1200X-III-AFT
  • 1200°C 3-Zone Ash Collection Tube Furnace - OTF-1200X-III-AFT
  • 1200°C 3-Zone Ash Collection Tube Furnace - OTF-1200X-III-AFT
  • 1200°C 3-Zone Ash Collection Tube Furnace - OTF-1200X-III-AFT
  • 1200°C 3-Zone Ash Collection Tube Furnace - OTF-1200X-III-AFT
1200°C 3-Zone Ash Collection Tube Furnace - OTF-1200X-III-AFT

1200°C 3-Zone Ash Collection Tube Furnace - OTF-1200X-III-AFT

SKU: otf-1200x-iii-aft

Price: RFQ

Specifications

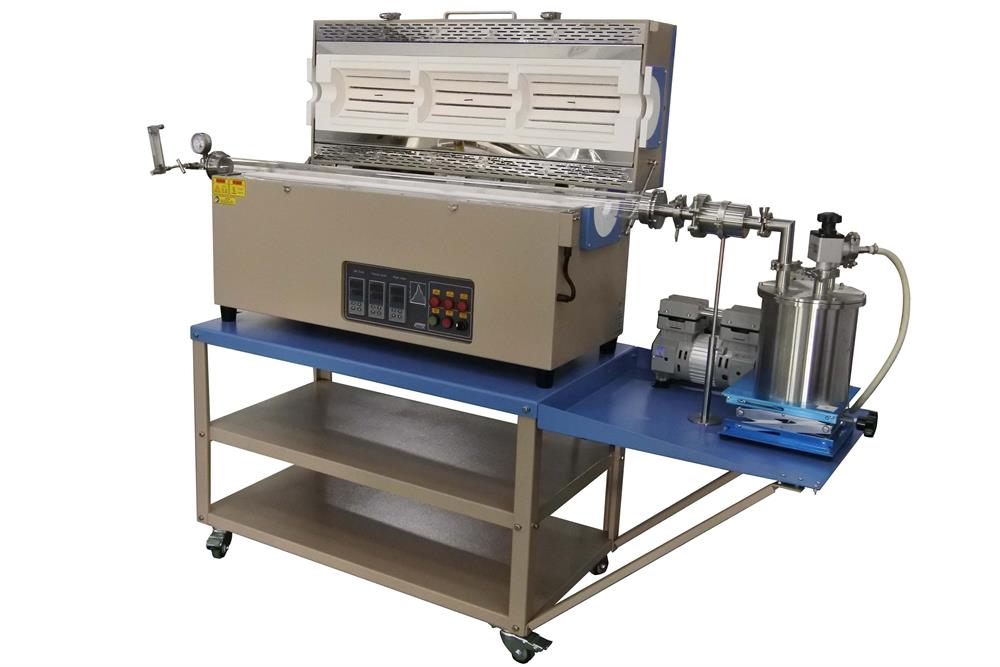

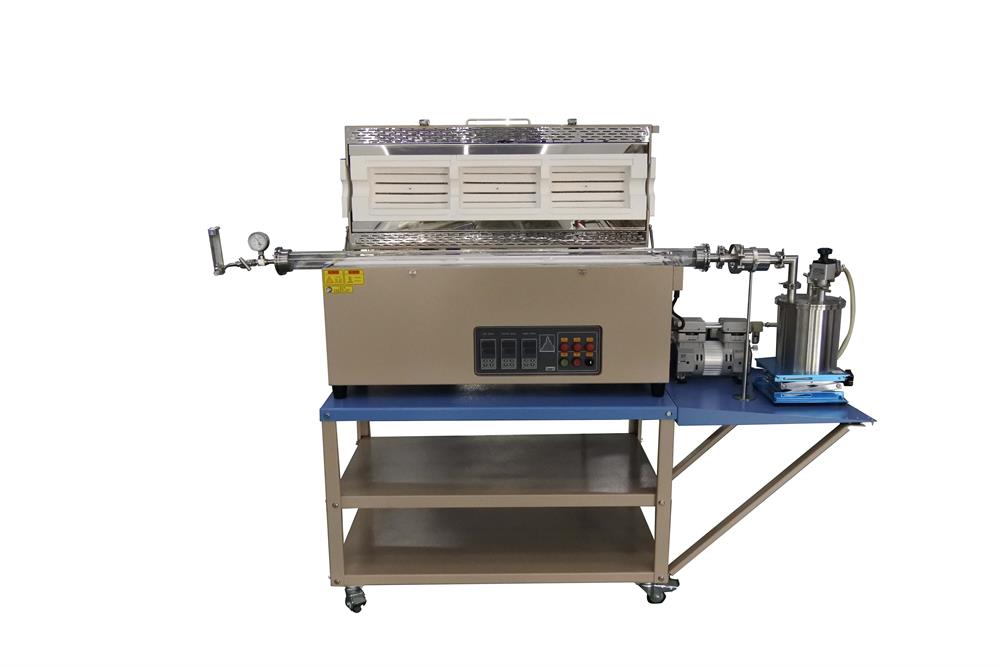

 OTF-1200X-III-AFT is a 3-zone Ash collection Tube Furnace equipped with a filtering and vacuuming system and a double-layer steel case with a high-purity alumina chamber. It is suitable for collecting ashes from burning research samples and tail gas treatment. SPECIFICATIONS: Rated voltage 220VAC±10%, Single Phase, 50Hz Power consumption 7.5 KW Heating zone Length Three zones: 900 mm in total, 300mm each Quartz Tube Φ60×1400mm Heating temperature • Max. Heating Temperature: 1200°C(≤30min) • Continuous Heating Temperature: 1100°C • Max. Heating Rate: 20°C/min Temperature Controllers • Three stand-alone MTE certified Temperature controllers with 30 programmable segments • Built-in PID Auto-Tune function with overheating & broken thermocouple protection. • Over temperature protection and alarm allow for operation without the attendant. • +/- 1 ºC temperature accuracy. • Three K-type thermocouples (one for each zone). • DB9 PC Communications Port. Sealing Flange Collection/Filtering System Left Flange • One φ6.35 port to connect the float flowmeter (25-250ml/min) • One needle valve • One pressure gauge(-0.1-0.15MPa) Right Flange: • One KF25 port to connect the foam copper filter • One filter-bucket(Φ200*225mm) with height adjustable plate. (Holding water or oil to filter the uncollected samples) • Two KF25 ports on the filter bucket(One for foam copper filter, One for vacuum system) Laptop, software & WiFi Control(Optional) • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use. • Labview Based Temperature Control System ( MTS01 ) enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. • A wireless remote control provides up to 300 meters of operating range. • Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information. Note: The software is only compatible with MTI’s Yudian Temperature Controller Vacuum (optional) • Vacuum level can reach 10E-2 torr by the quality mechanical vacuum pump and 10E-5 torr by the turbo pump • Optional: You may order digital molecular pump for faster and better vacuum

Rated voltage 220VAC±10%, Single Phase, 50Hz
Power consumption 7.5 KW
Heating zone Length Three zones: 900 mm in total, 300mm each
Quartz Tube  Φ60×1400mm
Heating temperature • Max. Heating Temperature: 1200°C(≤30min)
• Continuous Heating Temperature: 1100°C
• Max. Heating Rate: 20°C/min
Temperature Controllers
• Three stand-alone MTE certified Temperature controllers with 30 programmable segments
• Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
• Over temperature protection and alarm allow for operation without the attendant.
• +/- 1 ºC temperature accuracy.
• Three K-type thermocouples (one for each zone).
• DB9 PC Communications Port.
Sealing Flange
Collection/Filtering System

Left Flange
• One φ6.35 port to connect the float flowmeter (25-250ml/min)
• One needle valve
• One pressure gauge(-0.1-0.15MPa)

Right Flange:
• One KF25 port to connect the foam copper filter
• One filter-bucket(Φ200*225mm) with height adjustable plate. (Holding water or oil to filter the uncollected samples)
• Two KF25 ports on the filter bucket(One for foam copper filter, One for vacuum system)
Laptop, software & WiFi Control(Optional)
• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use.
• Labview Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters of operating range.
• Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.

Note: The software is only compatible with MTI’s Yudian Temperature Controller

Vacuum (optional)
 		 • Vacuum level can reach 10E-2 torr by the quality mechanical vacuum pump and 10E-5 torr by the turbo pump
• Optional: You may order digital molecular pump for faster and better vacuum
