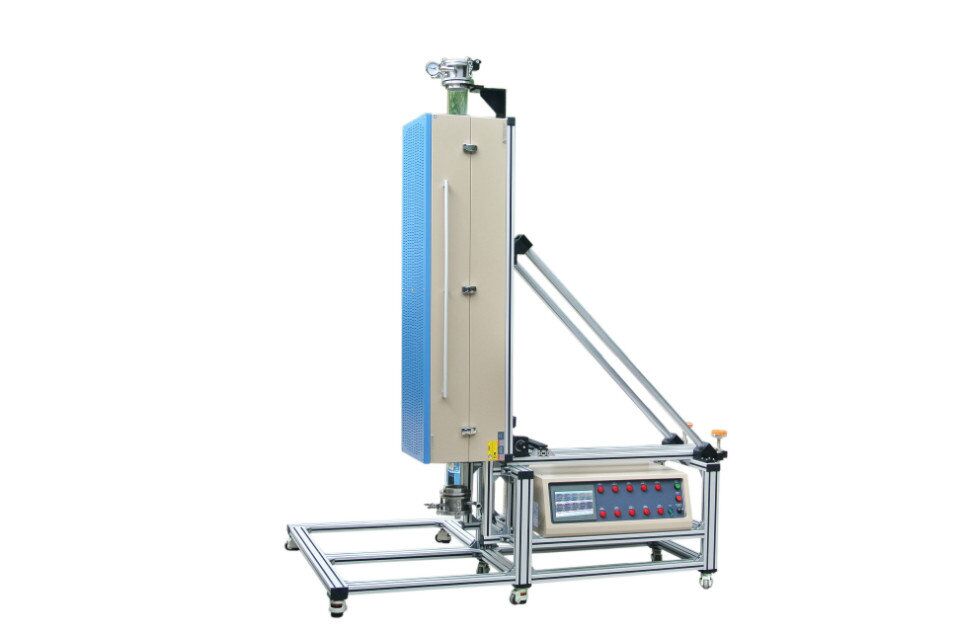

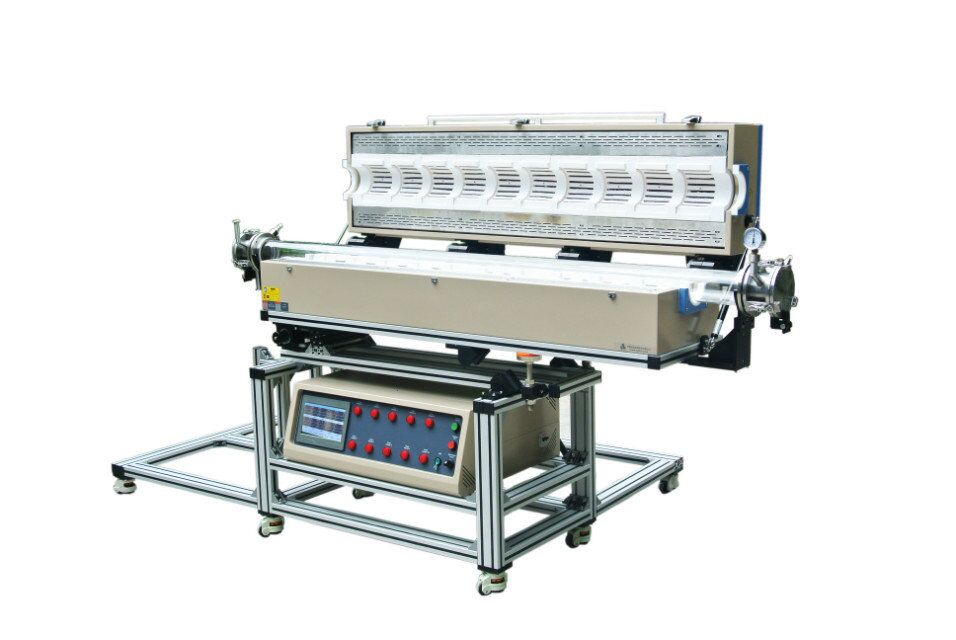

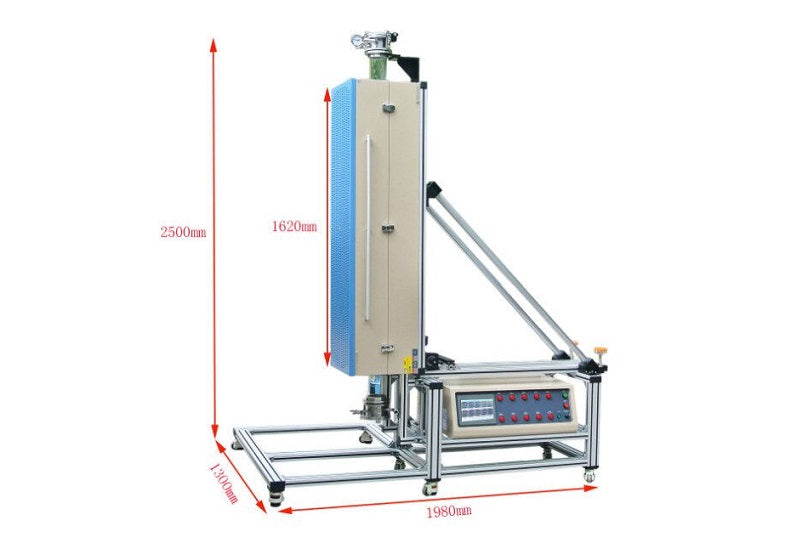

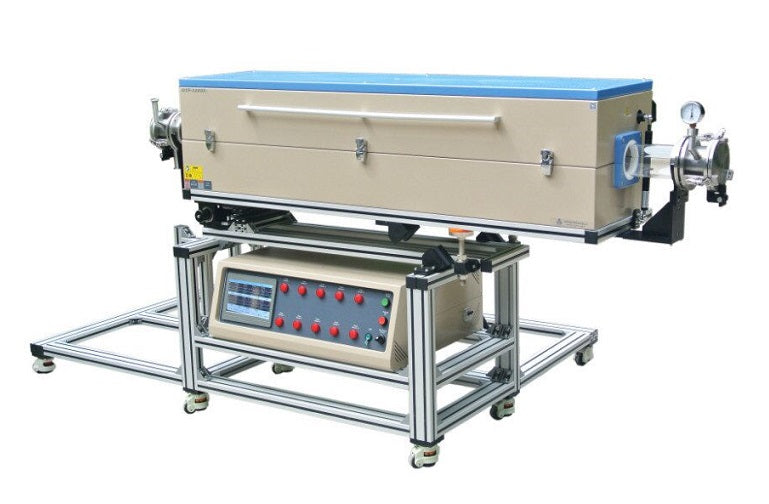

10-zone 1200°C, Ø25-100 mm Tube Furnace w/ Horizontal & Vertical Positions - OTF-1200X-X-VT
  • 10-zone 1200°C, Ø25-100 mm Tube Furnace w/ Horizontal & Vertical Positions - OTF-1200X-X-VT
  • 10-zone 1200°C, Ø25-100 mm Tube Furnace w/ Horizontal & Vertical Positions - OTF-1200X-X-VT
  • 10-zone 1200°C, Ø25-100 mm Tube Furnace w/ Horizontal & Vertical Positions - OTF-1200X-X-VT
  • 10-zone 1200°C, Ø25-100 mm Tube Furnace w/ Horizontal & Vertical Positions - OTF-1200X-X-VT
  • 10-zone 1200°C, Ø25-100 mm Tube Furnace w/ Horizontal & Vertical Positions - OTF-1200X-X-VT
  • 10-zone 1200°C, Ø25-100 mm Tube Furnace w/ Horizontal & Vertical Positions - OTF-1200X-X-VT
10-zone 1200°C, Ø25-100 mm Tube Furnace w/ Horizontal & Vertical Positions - OTF-1200X-X-VT

10-zone 1200°C, Ø25-100 mm Tube Furnace w/ Horizontal & Vertical Positions - OTF-1200X-X-VT

SKU: otf-1200x-x-vt

Price: RFQ

Specifications

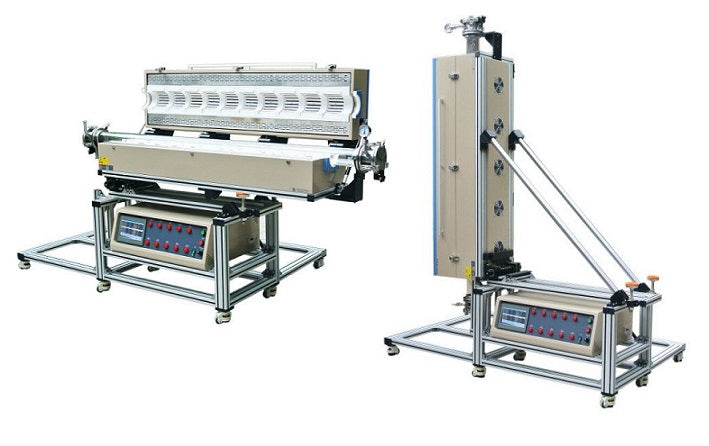

 OTF-1200X-X-VT is a 10-zone split tube furnace with both horizontal and vertical configuration. With 10 independent-controlled heating zones, it allows to set up different temperature gradients to simulate industrial production process in a lab. Features 10 heating zones Total heating length 1470 mm Both horizontal and vertical configurations Ø25-100 mm processing tube 10 K type thermocouples SPECIFICATIONS: Power 208-240VAC, 3 phase, 50/60 Hz, 12 kW Flanges One pair stainless steel flange ISO100-K port 1/4" compression tube fittings for gas inlet and outlet KF25 port for vacuum generation Pirani capacitance enhance diaphragm pressure gauge , 3.8e-5 - 1013 torr Processing Tube Ø100×Ø92×2000 mm Pressure < 3 psig Vacuum Level 5e-2 torr by a mechanical vacuum pump Heating Zone 10 independent heating zones Each heating zone length 120 mm Zone separator length 30 mm Total zone length: 1470 mm Estimated uniform heating length <1000 mm @ 800°C ± 2°C Temperature Controllers 10 temperature controllers 50 programmable temperature segments PID loop with temperature fluctuation < 1°C +/- 1 ºC temperature accuracy. 10 K type thermocouples RS485 serial port for remote communication Compliance CE Certified NRTL (UL61010) or CSA certification is available at extra cost.

Power
  • 208-240VAC, 3 phase, 50/60 Hz, 12 kW
Flanges




Processing Tube
  • Ø100×Ø92×2000 mm
Pressure
  • < 3 psig
Vacuum Level

Heating Zone
  • 10 independent heating zones
  • Each heating zone length 120 mm
    Zone separator length 30 mm
  • Total zone length: 1470 mm
  • Estimated uniform heating length
    <1000 mm @ 800°C ± 2°C


Temperature Controllers


  • 10 temperature controllers
  • 50 programmable temperature segments
  • PID loop with temperature fluctuation < 1°C
  • +/- 1 ºC temperature accuracy.
  • 10 K type thermocouples
  • RS485 serial port for remote communication
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.
