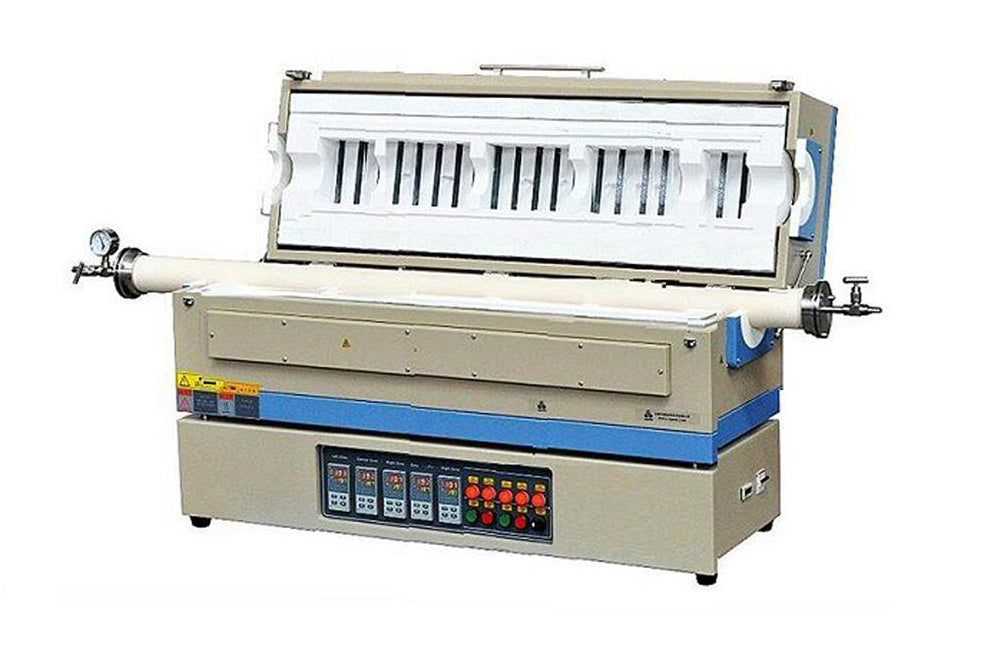

1500C Five Zone Split Tube Furnace with 84mm O.D Mullite Tube & Flanges - OTF-1500X-5Z

RM0.00 MYR

1500C Five Zone Split Tube Furnace with 84mm O.D Mullite Tube & Flanges - OTF-1500X-5Z

Name: 1500C Five Zone Split Tube Furnace with 84mm O.D Mullite Tube & Flanges - OTF-1500X-5Z
Brand: MTI
SKU: OTF1500X5Z
Availability: OutOfStock

SKU: otf-1500x-z5

Price: RFQ

Description

OTF-1500X-5Z is a five-zone tube furnace with a mullite tube and SS vacuum flanges which can heat up to 1500°C. Each SiC heating zone is controlled by an independent temperature controller to create various thermal gradients for special processing in material research, such as gradient functional material, high-through phase transition and re-crystallization, etc.

SPECIFICATIONS:

Power Input	15KW
Working Voltage	AC208 - 240V, Single phase 50/60Hz ( 70 A breaker required)
Max. Working Temperature	1500°C
Continuously Working Temperature	1400°C
Recommend Heating rate	5°C/min.
Processing Tube	Material: Mullite Ceramic Made in the USA Size: 84 O.D x 73 I.D x 1700mm L
Heat Zone Length	Total heating zone length: 1219 mm (48'') Individual heating zones 12"+ 8"+ 8"+ 8" +12" Constant Temperature Zone length: 700mm +/- 5ºC. ( If set 6 zones at the same temperature, without zone spacer. If you don't need the zone spacer, you shall inform us in advance) Max. Temperature gradient: 100 °C/ cm with standard zone spacer Note: The thermal gradient can be adjusted by inserting thermal insulations between each heating zone. Please contact our technical support to learn how
Temperature Controllers	Five heating zones channels with independent PID programmable temperature controllers. Up to 30 programmable segments for precise control of heating rate, cooling rate and dwell time in each channel Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. 5 pcs S-type thermocouples (one for each zone). RS485 Communications Port to connect Laptop computer to show temperature profile.
Laptop, software & WiFi Control(Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) *Labview Based Temperature Control System (MTS01 )* enables the user to edit temperature profiles, manage heat-treatment recipe, record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. The above features are available upon request at an extra cost (up to $1,000). Please contact us for more information. *Note:* The software is only compatible with MTI’s Yudian Temperature Controller
Vacuum Level	10^-2 torr by the quality mechanical vacuum pump 10^-5 torr by molecular pump Please click the picture below to order a vacuum pump
Thermal Block Placement	Two thermal blacks are included. Please picture below to learn how to place them inside tube You may order flange support to avoid tube rotating ( click Pic below right )
Heating Elements & Thermal couples	42 pcs 1500ºC grade Silicon carbide rod (14mm Dia. x 150mm heating x 413mm length ) The heating element is consumable, Please click the picture below to order spare and replacement. 5 pcs S type thermal couple built-in
Application Notes	The tube furnaces with mullite tube are designed for use under vacuum and low pressure < 0.02 Mpa Never use graphite crucible in the alumina tube. Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Please click here to learn the installation of a gas regulator. The flow rate for gases should be limited to < 200 SCCM ( or 200ml/min ) Vacuum limit definition for all mullite tube furnaces: * Vacuum pressures may only be safely used up to 1300°C
Compliance	CE Certified NRTL (UL61010) or CSA certification is available pon request at extra cost.
