Working Voltage
|
- 208 - 240 VAC single phase, 5 kW (30 A Breaker required)
|
|

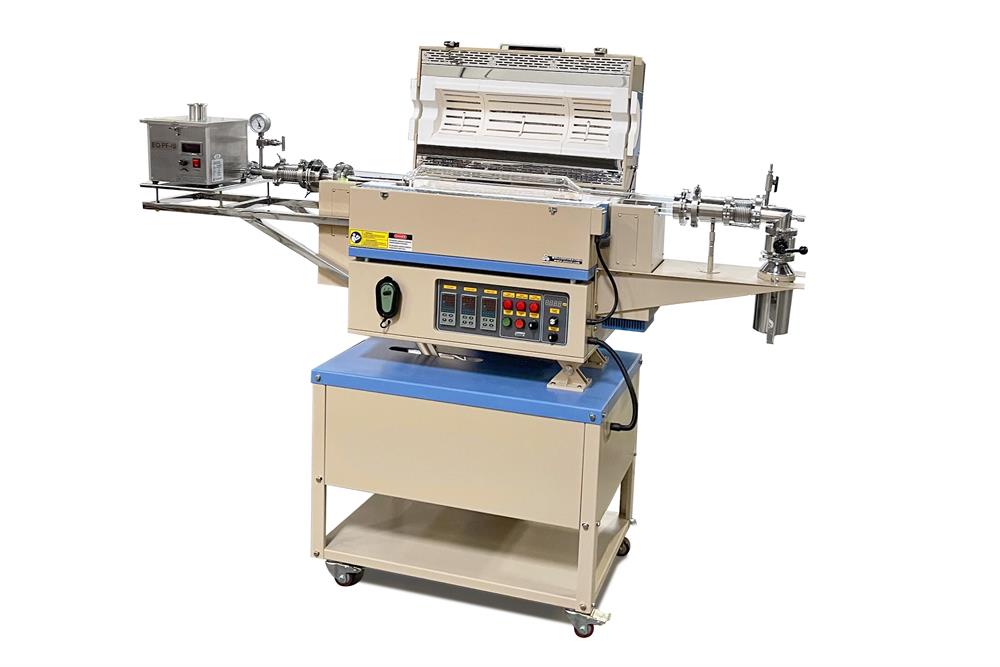

Furnace Construction
|
- Double shell casing with three cooling fans
- High purity Alumina fibrous insulation for max. energy efficiency
- DC Gear motor drives quartz tube with variable speed 0 - 10 RPM
- The furnace can be electrically tilted up to 20°
- The split cover enables faster cooling and easy operation.
|
|
Automatic
Feeding
Furnace
|

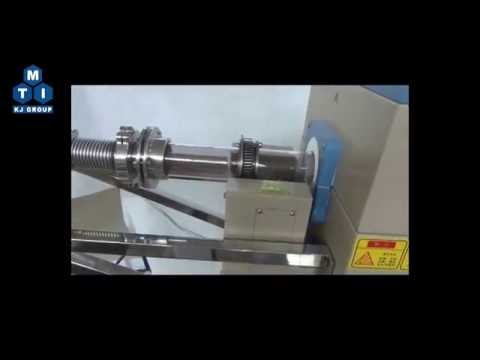

- The automatic powder feeder is mounted on the tiltable furnace via a vacuum-sealed swivel assembly. (Pic 1)

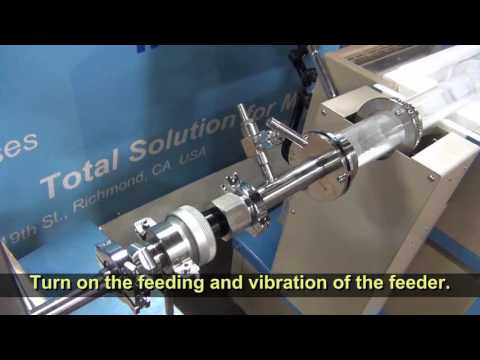

- The proper connection ensures a uniform feeding rate and the tube rotation undisturbed under a controlled atmosphere. (Pic 2-3)
- The feed rate is adjustable by the potentiometer knob, 97cm^3/min max.
- One stainless steel tank ( 1 Liter Capacity ) is installed on the other end of the processing tube to gather the fired powder without exposure to air.
- A furnace without an automatic feeding & receiving system is available, please select from the option bar. (Pic 5)
|
|
Automatic Receiving System
|
- One stainless steel tank (1L Capacity) for powder collection.
- A KF40 butterfly valve is designed to keep system hermetically during collection tank loading and unloading
- One gas outlet with 1/4" compression gas fitting
- One thermocouple port with a 1/4" quick-connect.
- KF 25 port for vacuum generation
|
|
Heating Zone length
|
|
|
Processing tube & Flange
|

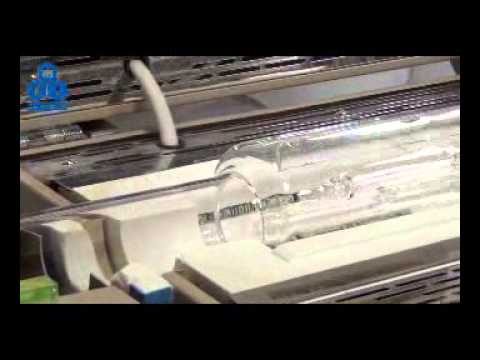

- Fused quartz tube (one is included)
- SS310 tube is available upon request at the extra cost for max working temp 900°C with a similar size
- Furnace Tube Dimensions: ⌀60'' x 1200'' x 5''
- Tumbling volume: 5310 ml
- One pair of 60mm SS sealing flange with needle valves and a rotatable gas connector is included
- 60 mm OD straight quartz tube is available to use use it as a conventional tube furnace.
|
|
Heating Temperature
|
- Working Temperature: 1100°C for continuous heating
- Max. Working Temperature: 1150°C for < 30 min
|
|
Temperature Control
|
- Temperature Controllers:
- Three PID digital temperature controllers with 30 programmable segments
- RS485 port is built-in to connect a PC for remote control
- Temperature Uniformity: +/- 1°C in the heating Zone
- Three Omega K type 3mm OD x 6" L are included
- The touchscreen control panel is available upon request at the extra cost ( ~$600 ), see Pic. left
|
|
Tube rotating Speed
|
- 1 - 10 RPM variable (Gear reduction ratio 1:150, torque 10Nm)
|
|
Furnace tilt angle
|
|
|
Chamber pressure
|
|
Laptop, software Control (Optional)
|
- Brand new laptop with Microsoft Windows 10 or 11 for immediate use.
-
Labview-Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
|
Compliance
|
- CE Certified
- NRTL (UL61010) or CSA certification is available upon request at extra cost.
|
|

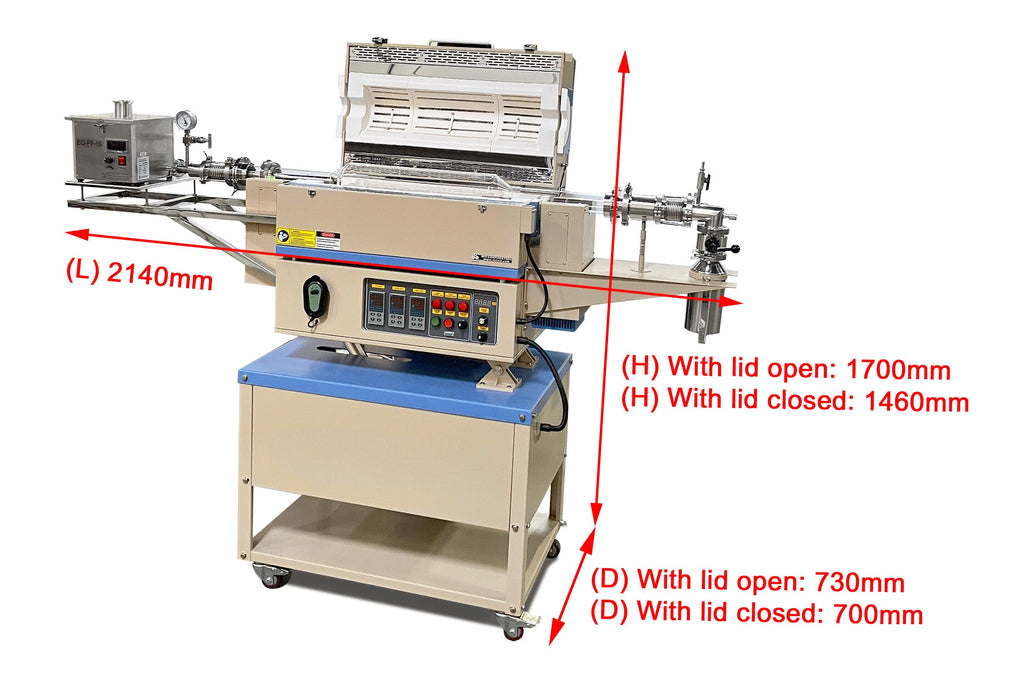

Tilt Dimension
|
| With Lid Open |
With Lid Closed
|
| Tilt |
At 0° |
34° |
0° |
34° |
| Length |
60" |
60" |
60" |
60" |
| Width |
35" |
35" |
24" |
24" |
| Height |
66.5" |
74" |
58" |
68" |
|
|
Application Notes
|
- The concept of continuous powder feeding and processing can be realized by the use of Magnetic Fluid Sealed Swivel Coupling with a Volumetric Feeder and Rotary Furnace. Please view the assembling approach diagram and video below.
-
For CVD coating, you may choose our multi-channel Gas delivery system as Pic below right
|
|
Warnings
|
- The tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bar / 3 psi
- Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn about the installation of a gas regulator.
- Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C
|
