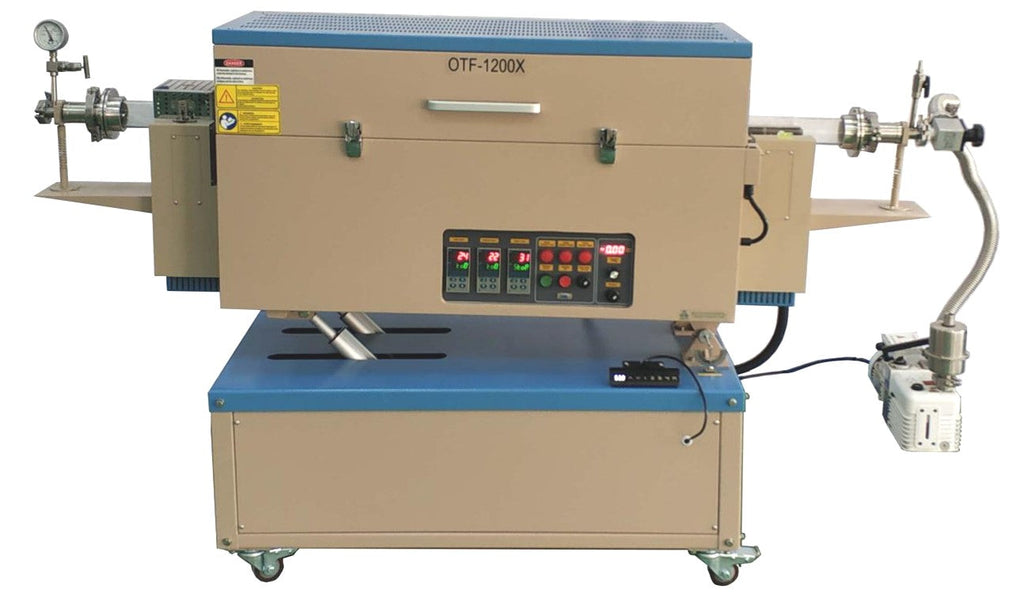

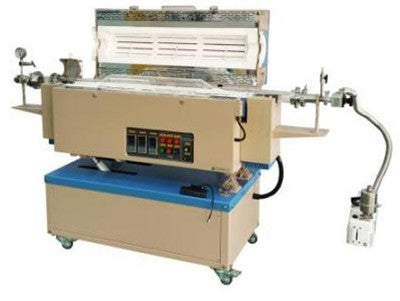

1200C Max.5" Three Zone Rotary Tube Furnace-OTF1200XIIIR5L

Working Voltage

• AC 208-240V, Single Phase (30A Breaker required), 50HZ

Output Power

•  7.0KW

Furnace

• Double shell casing with three cooling fans
• DC Gear motor drives quartz tube with variable speed 1 - 10 RPM
• The furnace can be electrically tilted up to 15°

Rotary Furnace

• Double casing with fibrous alumina insulation
• Three zones: (900 mm, 35.43" in total)
• Zone 1: 300 mm
• Zone 2: 300mm
• Zone 3: 300 mm
• ≤1100°C at ambient pressure
• ≤1000°C under vacuum
• Heating rate          ≤10°C
• Heating element   NiCrAl:Mo
• Rotary speed        2-10 rpm
• Tilting angle         0-15°

Temperature Control

• PID programmable temperature control
• 50 segments
• Accuracy ±1°C
• DB-9, RS485 MODBUS communication

Rotary Tube and Flanges

• Left flange

  • Diagram pressure gauge -0.1 - 0.5 MPa
  • Gas inlet Ø1/4" compression tube fitting
  • Needle valve
  • KF25 port

• Right flange

  • Gas outlet Ø1/4" compression tube fitting
  • Needle valve
  • KF25 vacuum angle valve
  •

• Rotary Quartz Tube Ø60 × Ø130 × 1600mm
  Tumbling zone Ø130 × 700mm, about 9000 ml
  Effective working volume 1800-2250 ml

Tube Pressure

• <3 psig

Vacuum System (Optional)

• 156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter
• KF25 for intake and exhaust

Software and Laptop

(Optional)

• Brand new laptop with Microsoft Windows 10 or 11 for immediate use.
• LabVIEW-based Temperature Control System (MTS03) for temperature programming, monitoring, and recording.

Compliance

• CE Certified
• NRTL (UL61010) or CSA certification is available upon request at extra cost.
