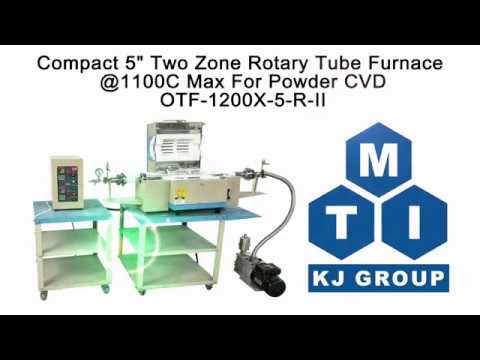

5" Two Zone Rotary Tube Furnace @ 1100°C Max For Powder CVD - OTF-1200X-S-II-R5
  • 5" Two Zone Rotary Tube Furnace @ 1100°C Max For Powder CVD - OTF-1200X-S-II-R5
  • 5" Two Zone Rotary Tube Furnace @ 1100°C Max For Powder CVD - OTF-1200X-S-II-R5
  • 5" Two Zone Rotary Tube Furnace @ 1100°C Max For Powder CVD - OTF-1200X-S-II-R5
5" Two Zone Rotary Tube Furnace @ 1100°C Max For Powder CVD - OTF-1200X-S-II-R5

5" Two Zone Rotary Tube Furnace @ 1100°C Max For Powder CVD - OTF-1200X-S-II-R5

SKU: otf1200xiisr5

Price: RFQ

Specifications

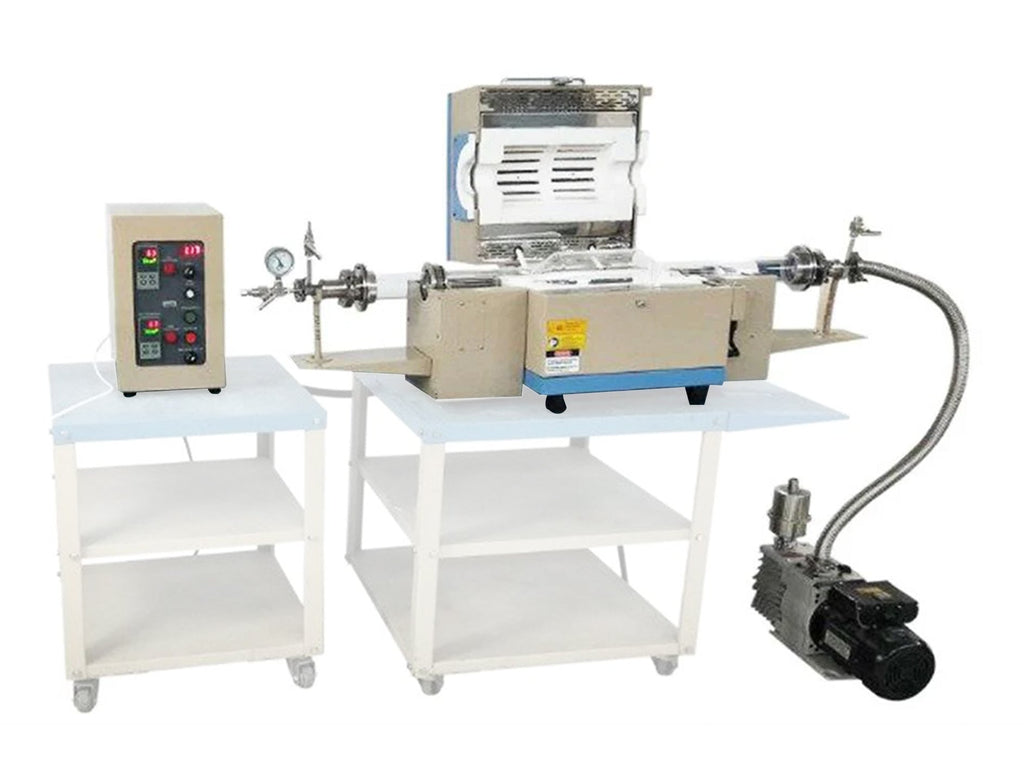

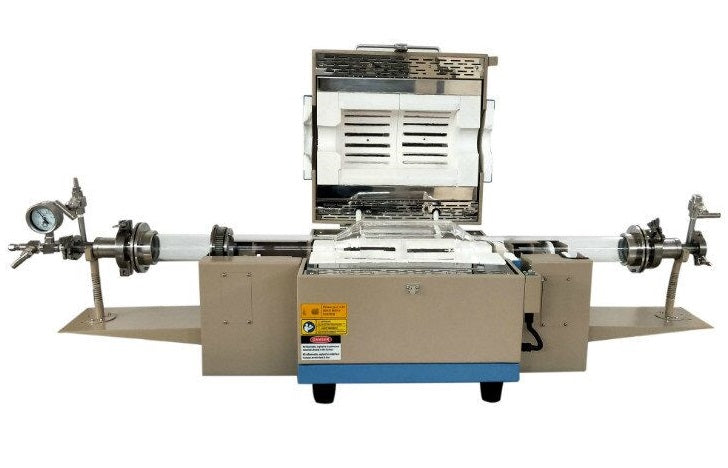

 OTF-1200X-S-II-R5 is a compact two zones rotary tube furnace with a 5" quartz tube, designed for powder coating, synthesis of core-shell structure, and calcining inorganic materials. Ref Article Scalable synthesis of silicon-nanolayer-embedded graphite for high-energy lithium-ion batteries Features Rotary tube furnace. Rotary speed 0-10 rpm. Dual heating zone, 280 mm heating length, <1100°C 5" quartz tube with mixing blades Tumbling volume 3000 ml; Effective volume for powder is <750 ml Atmosphere controlled


Power
  • 208-240 VAC, single phase, 50/60 Hz, 3 kW
  • 20 A power line is recommended

Processing Tube
Rotary Gas Fittings

  • One pair of rotary inline fitting ( Magnetic fluid seal) with flange is included
  • 1/4" tube fitting as gas inlet and gas outlet
  • Optional: the flange with alumina thermal blocks

Pressure
  • < 3 psig
Temperature Control
  • Standalone temperature control tower
  • Two PID programmable temperature controllers with 30 segments
  • Temperature control accuracy ±1°C
Thermocouple
Pressure
  • < 3 psig
Vacuum Pump
(optional)
  • <1e-2 torr by a mechanical vacuum pump
    • 156 L/m rotary vane pump FYP
    • 240 L/m rotary vane pump YTP-550-LD
  • <1e-4 torr by a molecular turbo pump
  • Leak rate < 5 mtorr / min.
Laptop & software (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (EQ-MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.(pls click the marks below to learn
 Furnace dimension:
  • Furnace: 1440mm(L) x 430mm(W) x 480mm(H)
  • Temperature Control Unit:250mm(L) x 350mm(W) x 415mm(H)
  • Mobile Cart is not included: Please click the picture below to order
 Product net weight
  • 35 Kg
 Shipping weight
  • 200 lbs
