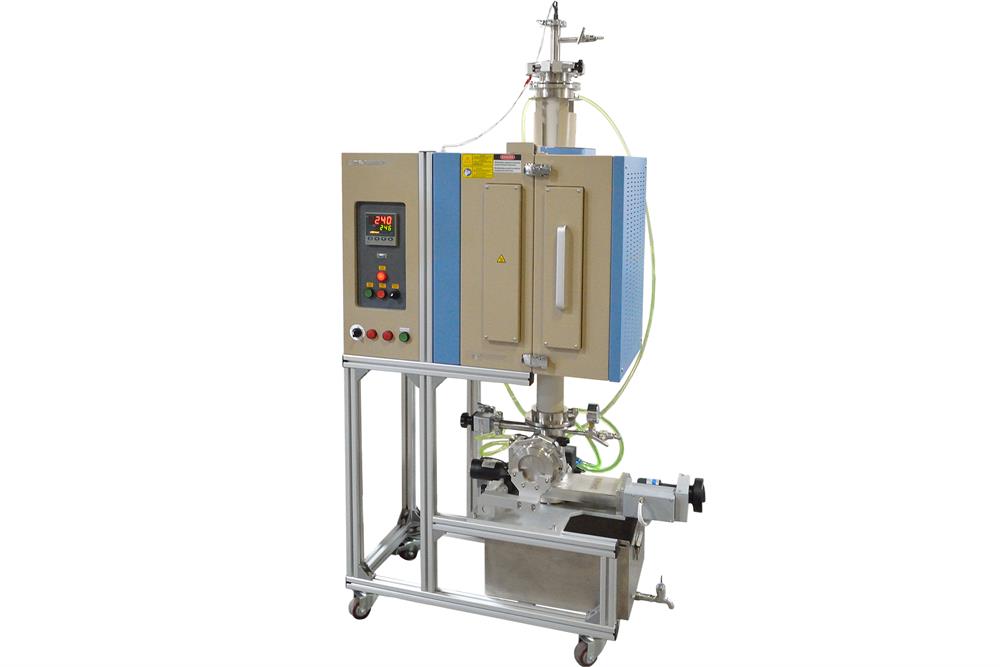

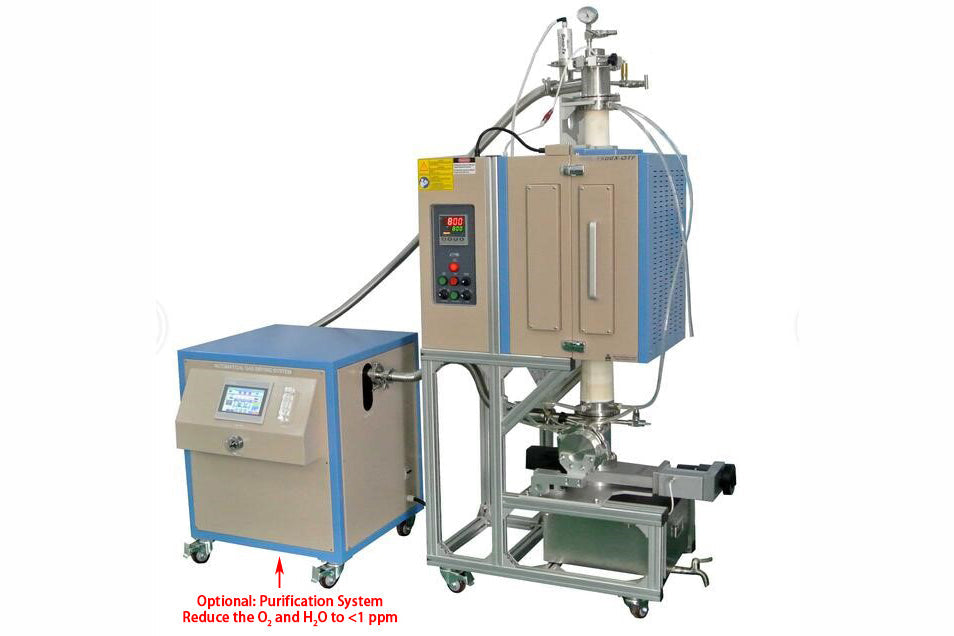

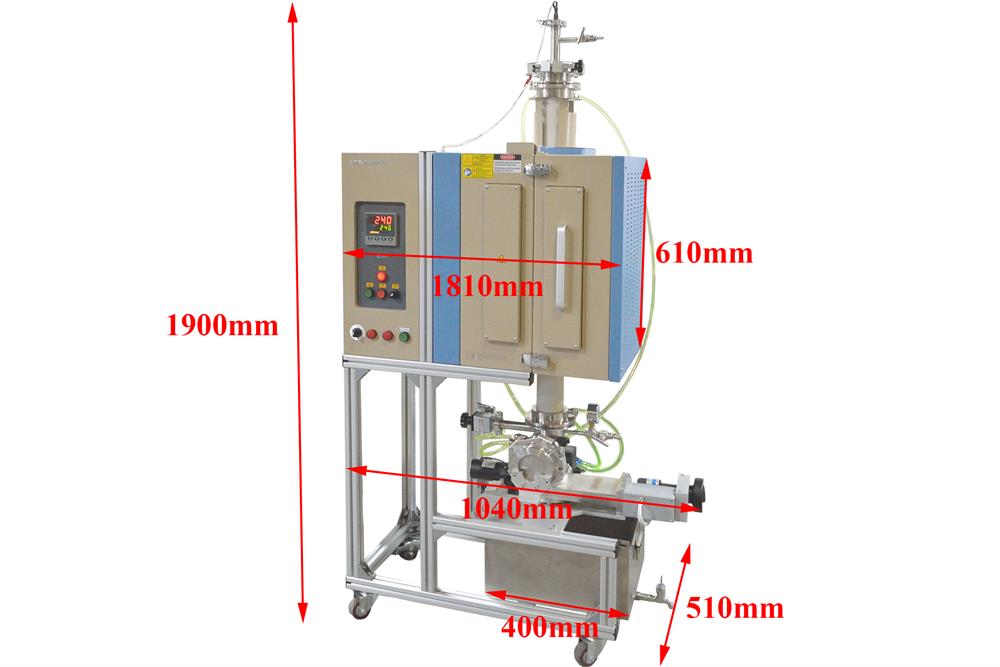

 OTF-1500X-80-VTQ is a split vertical quenching tube furnace with an 80 mm OD alumina tube, which is designed for quenching samples from high temperatures ( Max. 1500°C) into an ice water bath or quenching oil to study material phase transitions and microstructures. It is also compatible with air-sensitive samples to heat and quenches in oxygen and the water-free environment with an MTI gas purification and circulation system (as shown in the main image). (Auto electromagnetic sample hanger is added since 07/21/2016)    (Manual gate valve was upgraded to an electric one since 6/26/2017 ) SPECIFICATIONS Furnace Structure Dual-layer steel furnace case with air cooling to keep case surface temperature < 65°C. Vertical and splittable for easy installation of tubes and flanges. Atmosphere-controlled heating treatment with an 80 mm OD alumina tube. Easy quenching control. Simply open the gate valve and let the sample drop directly into the quenching tank by releasing the electromagnetic sample hanger. Power 208-240VAC, Single Phase, 50/60 Hz 6 KW (40A power outlet is required) Heating Temperature 1500 o C < 30 minutes 1400 o C < continuous Max. Heating Rate ≤ 10 o C /min Heating Element 1500°C grade SiC---12 pcs Processing Tube Materials:    Alumina tube made in the USA Size:           OD:80 mm x ID 74:mm x Length: 1000 mm (included) Heating Zone Heating Zone length:            440 mm Constant Temperature       150 mm within+/- 1 o C) Temperature Controllers 30 programmable segments for precise control of heating rate, cooling rate and dwell time. Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection. Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. One S-type thermocouples. RS-485 Communications Port. PC-controlled software and interface module are optional. (Standard Modbus protocol, written by Labview). MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit. Eurotherm Temp. controller (optional) Upgrade the temperature controller to the Eurotherm 3000 series Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3000 series programmer, a communication cable (RS485 - USB), and a software CD. Water-Cooled Flanges Both top and bottom flanges have water-cooling jacket (See left picture), which cools and preserves the O-ring sealings on the flange during high-temperature operation Please click the picture below to order a water chiller at an extra cost Hermetic Quenching Tank (Optional) Hermetic quenching tank is optional for air-sensitive materials, which enables the entire quenching process under atmosphere control Please contact MTI for further inquiries. Vacuum <0.05  torr (by a mechanical vacuum pump) The vacuum pump is not included. Please click the picture below to order a vacuum pump separately Power Cable & Plug 10 feet long 10-3 AWG heavy duty UL approved power cable is included. The extra length of the power cable can be ordered. The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store. Laptop, software & WiFi Control (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview Based Temperature Control System ( MTS01 ) enables a user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. The above features are available upon request at an extra cost (up to $1,000). Please contact us for more information. Note: The software is only compatible with MTI’s Yudian Temperature Controller Compliance CE Certified NRTL certification (UL61010)  or CSA certification is available upon request at extra cost. Application Notes Click here to learn more about the installation of a gas regulator . In order to obtain accurate temperature inside the tube furnace, you shall calibrate temperature before use, pls click here to learn how . How to set up the ceramic tube and vacuum flange for MTI Tube Furnace . The tube furnaces with alumina tubes are designed for use under vacuum or positive pressure < 0.02 Mpa / 0.2 Bar/ 3 PSI (relative pressure) Never use graphite crucible in the alumina tube. Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure below 3 PSI for safe operation. Click here to learn the installation of a gas regulator . Never heat the furnace while the gas release valve is closed and a positive pressure condition (>3 psi) exists within the furnace chamber. The flow rate of working gas should be limited to < 200 SCCM ( or < 200ml/min )

Furnace Structure

  • Dual-layer steel furnace case with air cooling to keep case surface temperature < 65°C.

  • Vertical and splittable for easy installation of tubes and flanges.

  • Atmosphere-controlled heating treatment with an 80 mm OD alumina tube.

  • Easy quenching control. Simply open the gate valve and let the sample drop directly into the quenching tank by releasing the electromagnetic sample hanger.

Power

  • 208-240VAC, Single Phase, 50/60 Hz

  • 6 KW (40A power outlet is required)

Heating Temperature

  • 1500oC < 30 minutes

  • 1400oC < continuous

Max. Heating Rate

  • ≤ 10oC /min

Heating Element



  • 1500°C grade SiC---12 pcs

Processing Tube

  • Materials:    Alumina tube made in the USA

  • Size:           OD:80 mm x ID 74:mm x Length: 1000 mm (included)

Heating Zone

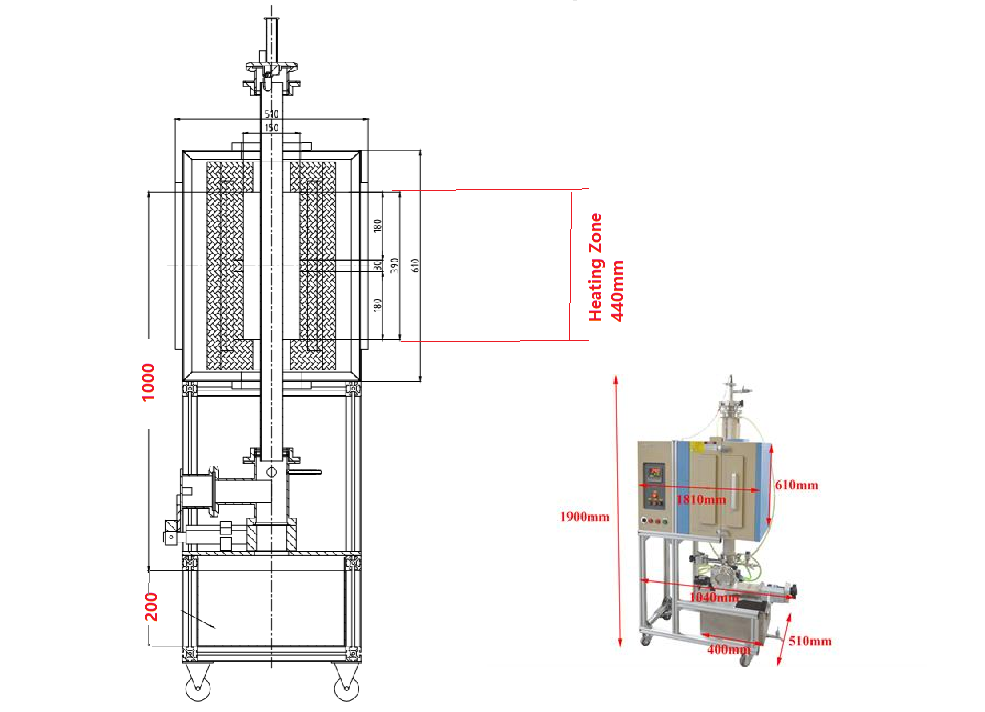

  • Heating Zone length:            440 mm

  • Constant Temperature       150 mm within+/- 1oC)
Temperature Controllers

  • 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

  • Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection.

  • Over-temperature protection and alarm allow for operation without attendant(s).

  • +/- 1 ºC temperature accuracy.

  • One S-type thermocouples.

  • RS-485 Communications Port.

  • PC-controlled software and interface module are optional. (Standard Modbus protocol, written by Labview).

  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.





Eurotherm

Temp. controller (optional)

Water-Cooled Flanges



  • Both top and bottom flanges have water-cooling jacket (See left picture), which cools and preserves the O-ring sealings on the flange during high-temperature operation

  • Please click the picture below to order a water chiller at an extra cost

Hermetic Quenching Tank (Optional)

  • Hermetic quenching tank is optional for air-sensitive materials, which enables the entire quenching process under atmosphere control

  • Please contact MTI for further inquiries.


  •

Vacuum

  • <0.05  torr (by a mechanical vacuum pump)

  • The vacuum pump is not included. Please click the picture below to order a vacuum pump separately



Power Cable & Plug

  • 10 feet long 10-3 AWG heavy duty UL approved power cable is included. The extra length of the power cable can be ordered.

  • The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.





Laptop, software & WiFi Control (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01) enables a user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • The above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.
  • Note: The software is only compatible with MTI’s Yudian Temperature Controller
  •

Compliance

  • CE Certified

  • NRTL certification (UL61010)  or CSA certification is available upon request at extra cost.

Application Notes


Click here to learn more about the installation of a gas regulator.
