Precision Dicing Saw with Air Bearing for 6" Max Wafer - SYJ-1610

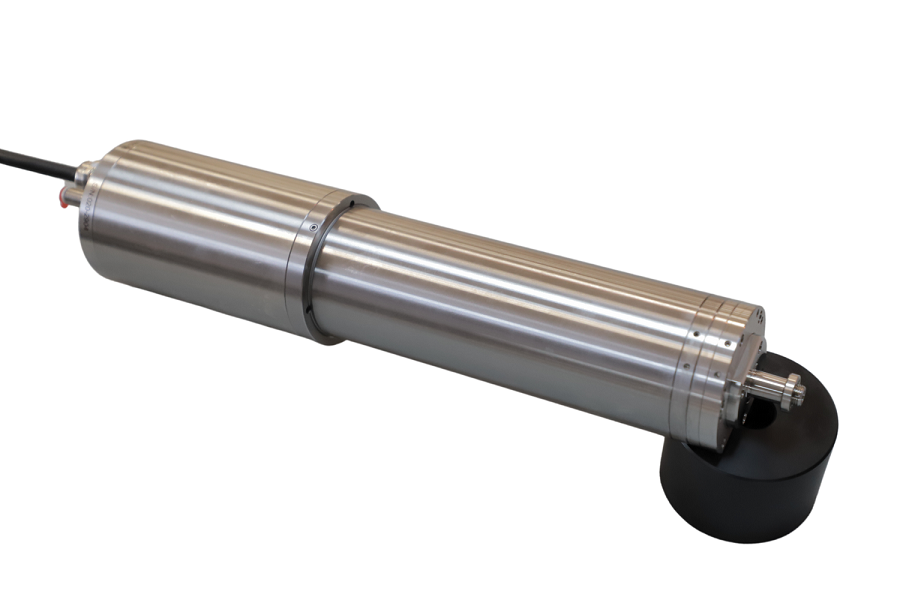

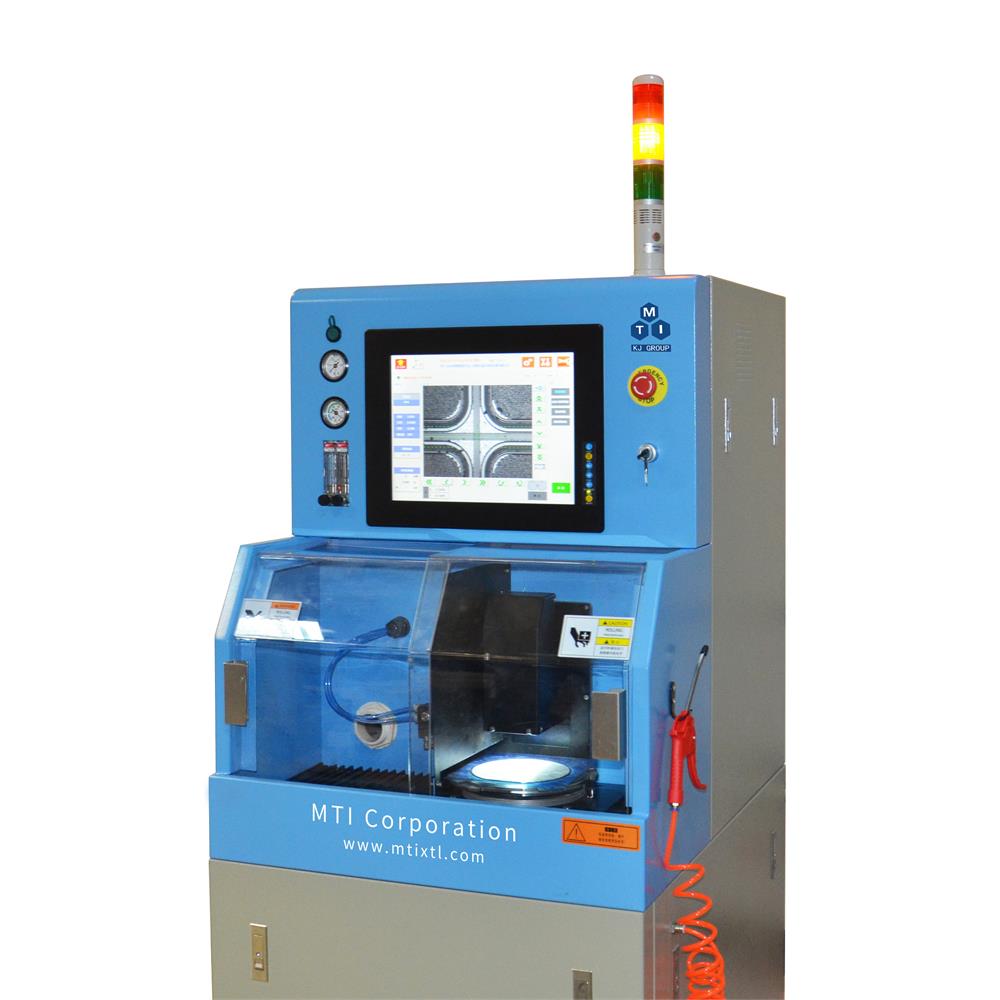

SYJ-1610 Precision Dicing Saw with Air Bearing offers high precision, rigidity, and output power while keeping low noise levels and a long lifespan. An industrial computer control system with a 15-inch industrial-grade LCD touchscreen is equipped for all operations and real-time status monitoring, also offers a self-guided program mode, and a multi-set process program can be programmed to adapt to various materials and methods of cutting.

The spindle speed is adjustable. The y-axis is controlled by grating closed-loop and fitted by a mathematical model for higher precision. More than collimation and rapid alignment,  the ring Light, and coaxial light can be switched at will with microscope auto-focus,

Self-locking by cutting space, and multiple protection measures such as Compressed air, cooling water, power supply, and alarm prompt, make it safer to use.

Voltage	AC 220±V10% Single Phase
Power	3kW
Specifications	Spindle Speed:  3000-50000 rpm Spindle output power:  1.5 kW X-axis cutting stroke:  240mm Max. X-axis velocity range:  0 ~ 400 mm/s Y-axis cutting stroke:  165mm Max. Y-axis single stepping accuracy:  0.003 mm/5mm The maximum error of the y-axis: 0.005 mm/160mm Z-axis effective travel: Max30mm Z-axis repositioning accuracy: 0.001 mm The application size of the Z-axis Cutter: φ50mm ~ φ60mm Theta Axis Drive Mode: DD Motor Theta axis angle range: 320 ° Resolution of θ Axis: 1′ Lighting Source: LED Ring Light Source + coaxial light CCD: Industrial Camera Monitor: industrial grade 15′ color LCD touchscreen Control system: PC Base + Windows XP

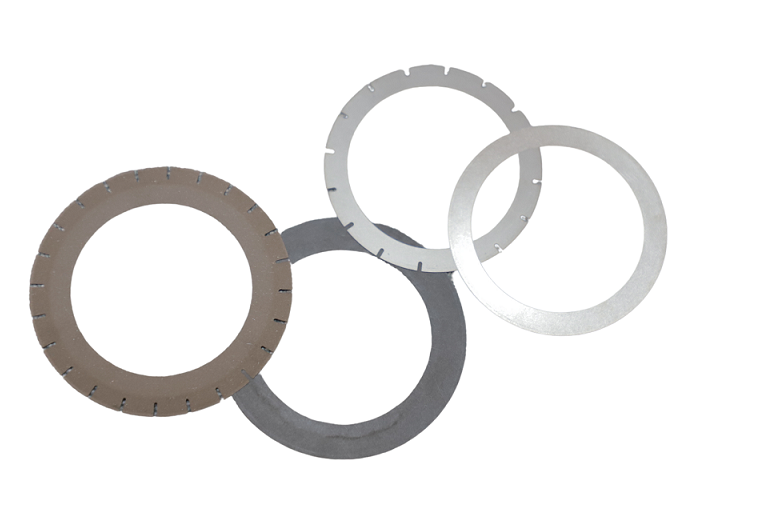

Dicing Blade	One pair of the standard flange is included to accept  40 mm ID x 50.8 - 60 mm OD x 0.035 ~ 0.35 mm dicing blade Mac. cutting depth : 1.5 mm Custom flange is available upon request
Cooling Water Requirements	A Φ12MM connection port is reserved. Recommended using a quick-connect plug with a separate valve Cooling water for Spindle: Recommend an industrial circulating water chiller with 0.6 horsepower cooling capacity and temperature control accuracy ± 2 ° C The interface is φ6mm hose (refer to Hanway CA-0.6 water chiller for details) May share the same intake with the cooling water for cutting Cooling water for cutting The pipeline should be less than 2 meters The pressure should be not less than 0.3 Mpa The flow should be not less than 3l/min
Waste Water Pipe Requirements	Inside diameter 30m The height of the pipeline port shall not exceed 400mm
Compressor (separate purchase)	An oil-free gas source with no water and no impurities is required The pressure should be above 8 kg The compressor can be more than 7.5 kW of power, and cooling and drying machines can be chosen according to the air compressor The distance between the connecting port and the equipment shall not exceed 2 meters, the pressure shall not be less than 0.6 Mpa, and the flow rate shall not be less than 300l/Min The pipeline must be safe and reliable and connected to an air dryer and filter
Net Weight	500 kg

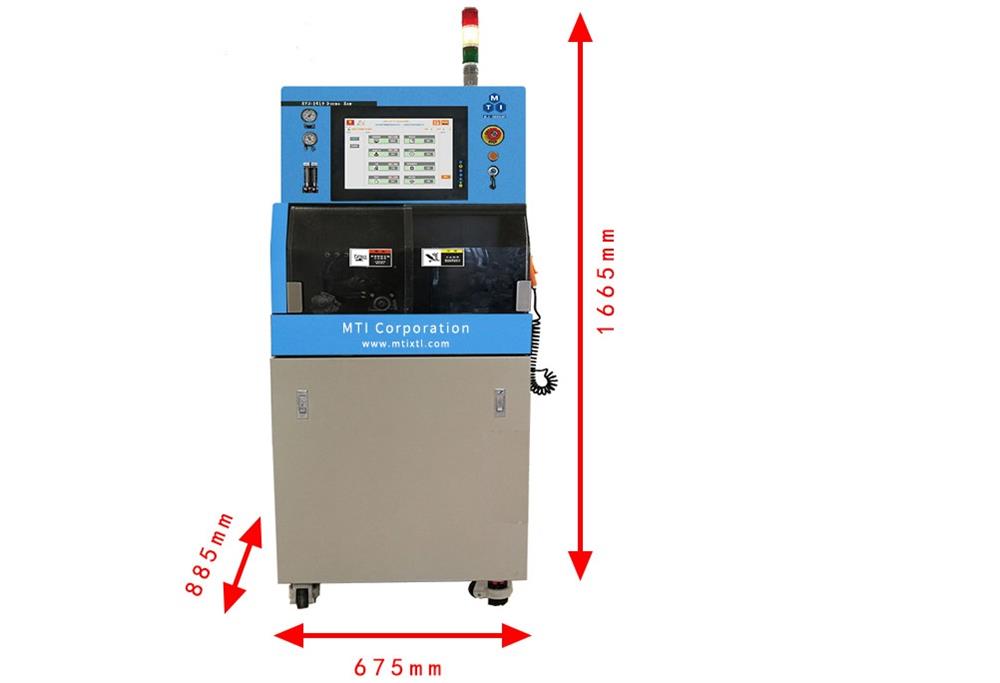

Dimensions	Working Size: Φ6′ Round Table: Φ6′ Square table: 160mm × 160mm Volume (W × D × H) mm: 675 × 885 × 1665
Warranty	One year limited with lifetime support --- including all electronic and mechanical parts. Damaged parts caused by misuse: such as rusted parts from inadequate storage and broken parts by the user are not covered by the standard warranty.
