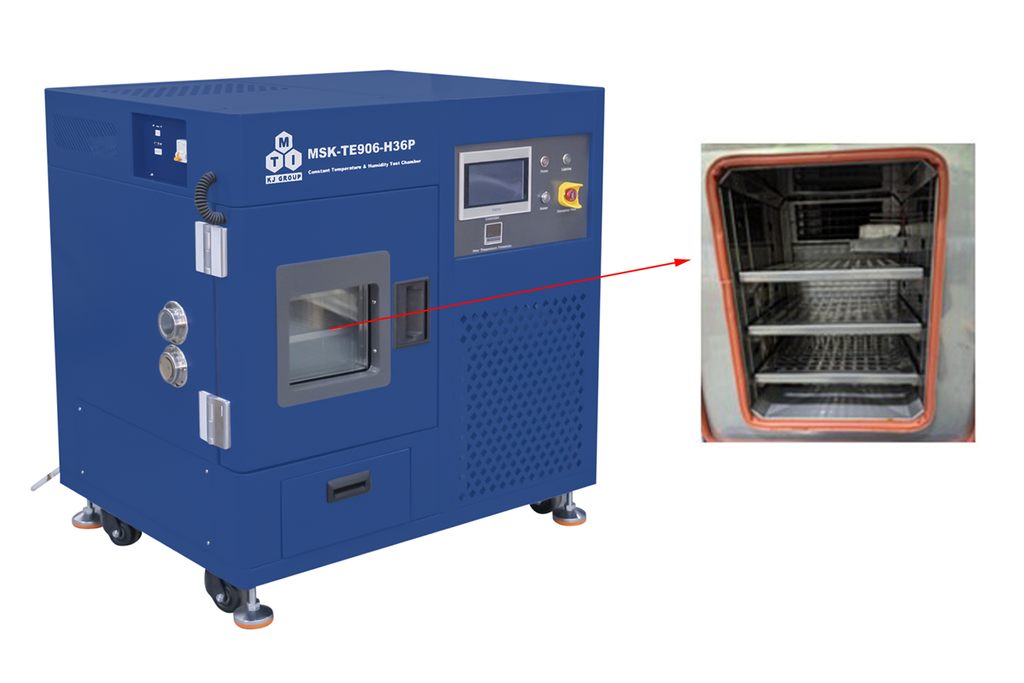

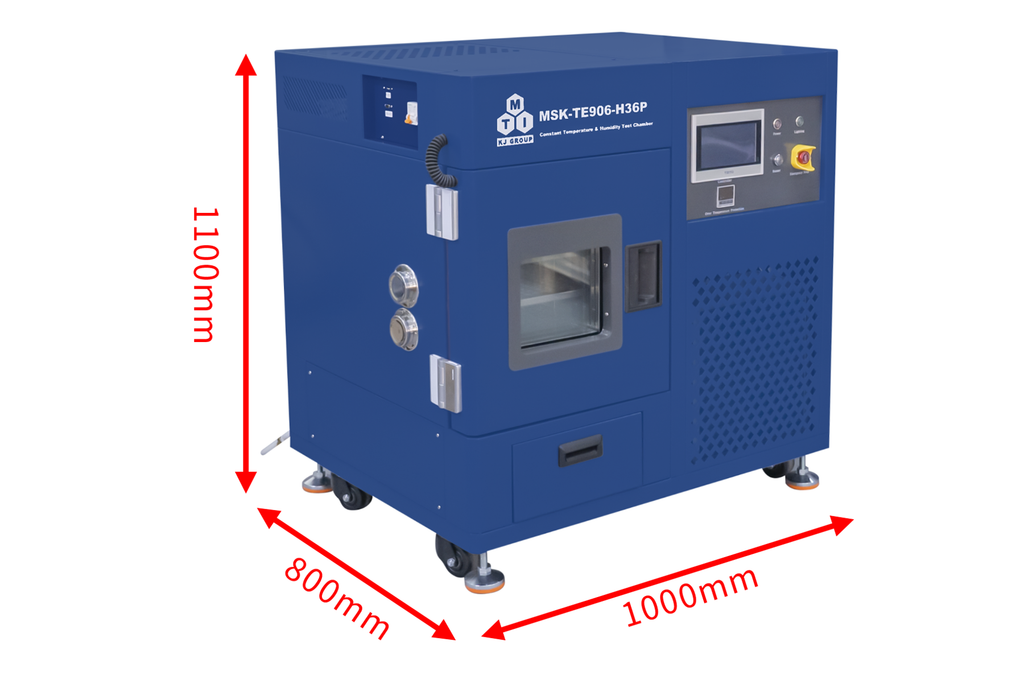

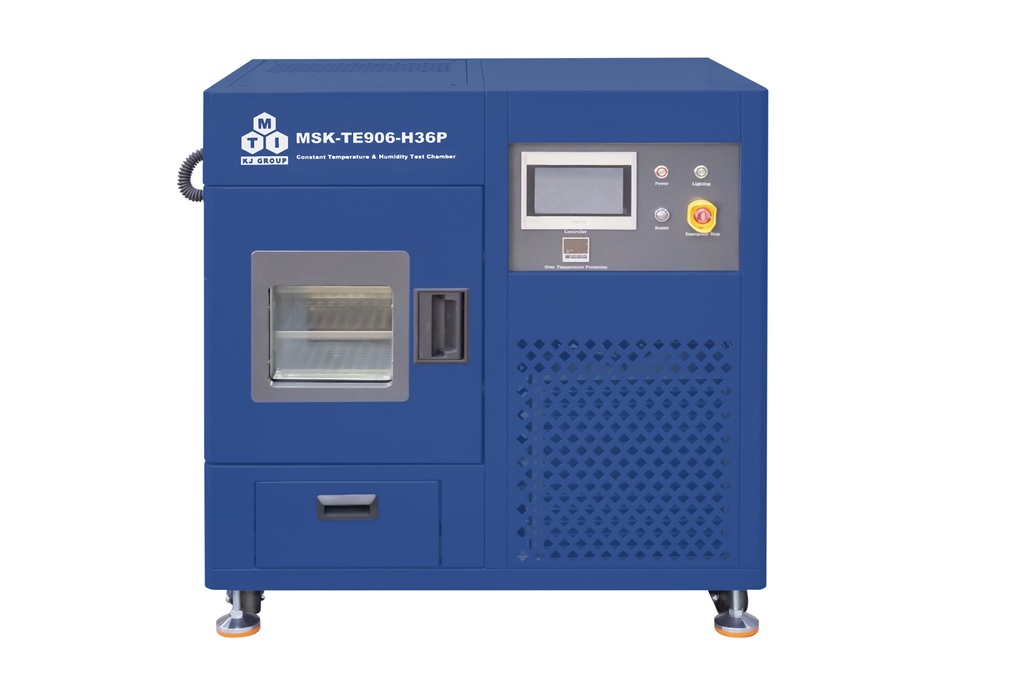

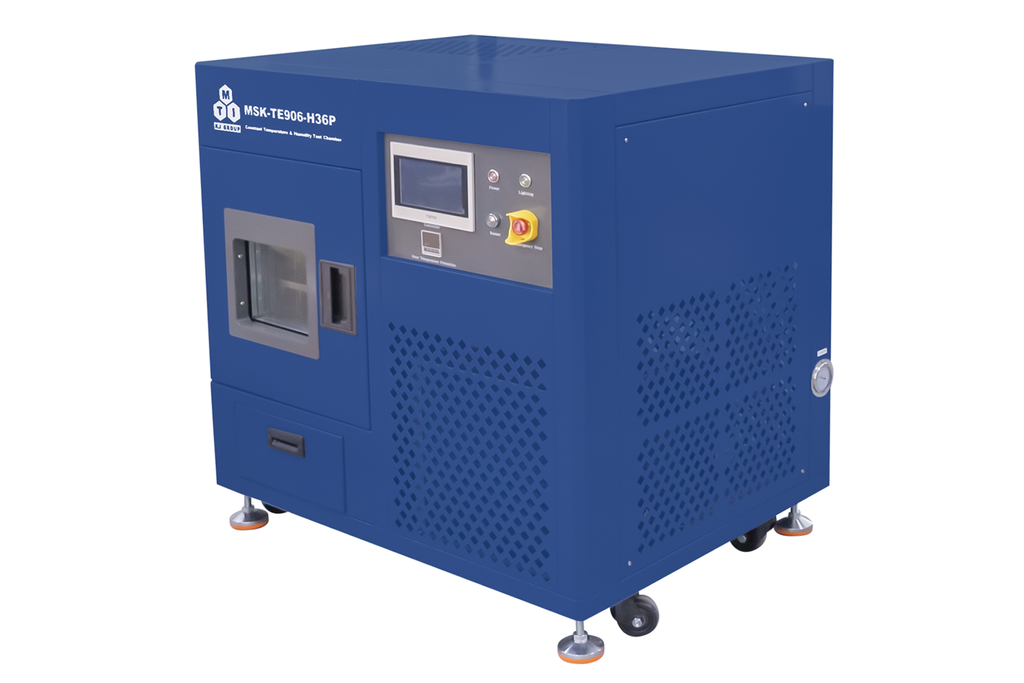

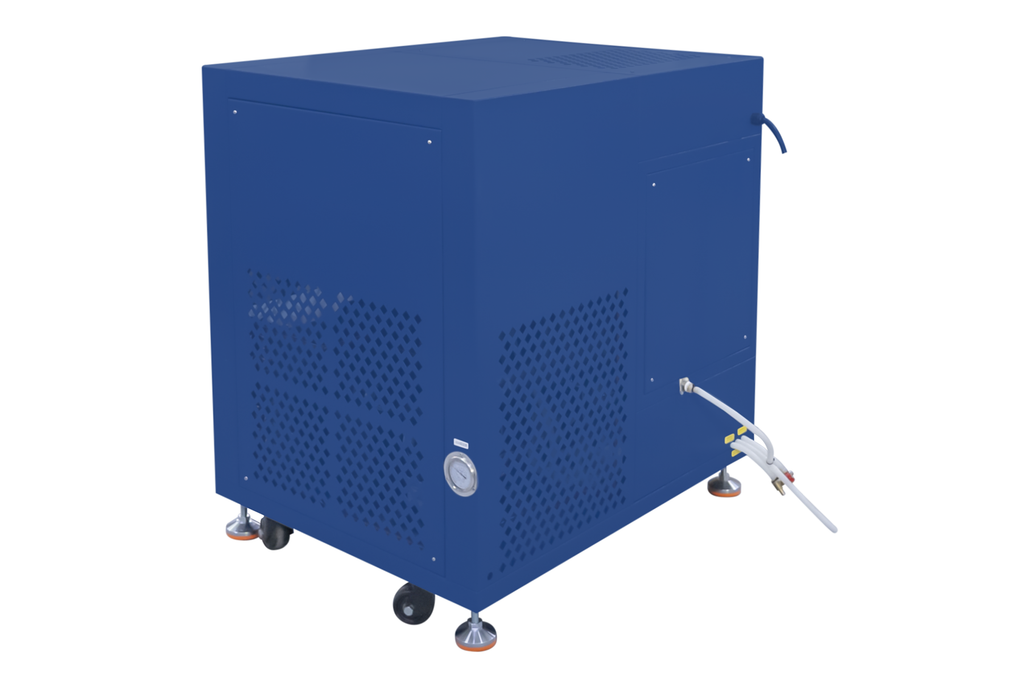

Precision Humidity & Temperature Test Chamber (-40 - 150 °C / 20% - 98% RH, 36L) - MSK-TE906-H36P
  • Precision Humidity & Temperature Test Chamber (-40 - 150 °C / 20% - 98% RH, 36L) - MSK-TE906-H36P
  • Precision Humidity & Temperature Test Chamber (-40 - 150 °C / 20% - 98% RH, 36L) - MSK-TE906-H36P
  • Precision Humidity & Temperature Test Chamber (-40 - 150 °C / 20% - 98% RH, 36L) - MSK-TE906-H36P
  • Precision Humidity & Temperature Test Chamber (-40 - 150 °C / 20% - 98% RH, 36L) - MSK-TE906-H36P
  • Precision Humidity & Temperature Test Chamber (-40 - 150 °C / 20% - 98% RH, 36L) - MSK-TE906-H36P
Precision Humidity & Temperature Test Chamber (-40 - 150 °C / 20% - 98% RH, 36L) - MSK-TE906-H36P

Precision Humidity & Temperature Test Chamber (-40 - 150 °C / 20% - 98% RH, 36L) - MSK-TE906-H36P

SKU: precision-humidity-temperature-test-chamber-40-150-c-20-98-rh-36l-msk-te906-h36p

Price: RFQ

Specifications

 MSK-TE906-H36P is a 36 L Environmental Test Chamber with wide range of temperature and humidity from -40ºC to 70ºC and from 20% to 98% relative humidity. SPECIFICATIONS Power Voltage: 208 - 240VAC (single-phase, 50/60 Hz) Power: 5 kW Test Chamber Features Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass Inside Dimensions: W330 × D300 × H400,mm Capacity: 36 L Heating & Cooling System Range: -40ºC to +150ºC Resolution: +/- 2 ºC Accuracy: +/- 2 ºC Heating rate: 5 ºC/min (nonlinear) Cooling rate: 1 ºC/min (nonlinear) Humidity Control Range: 20% - 98% RH Accuracy: +/- 3.0% RH Compliance CE certified NRTL or CDSA certification is available upon request at the extra cost Operation Environment Temperature: 5-35 ºC Humidity: ≤85% RH No vibration or electromagnetic interference

Power
  • Voltage: 208 - 240VAC (single-phase, 50/60 Hz)
  • Power: 5 kW
Test Chamber Features
  • Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass
  • Inside Dimensions: W330 × D300 × H400,mm
  • Capacity: 36 L
Heating & Cooling System
  • Range: -40ºC to +150ºC
  • Resolution: +/- 2 ºC
  • Accuracy: +/- 2 ºC
  • Heating rate: 5 ºC/min (nonlinear)
  • Cooling rate: 1 ºC/min (nonlinear)
Humidity Control
  • Range: 20% - 98% RH
  • Accuracy: +/- 3.0% RH
Compliance
  • CE certified
  • NRTL or CDSA certification is available upon request at the extra cost
Operation Environment
  • Temperature: 5-35 ºC
  • Humidity: ≤85% RH
  • No vibration or electromagnetic interference
