Specifications

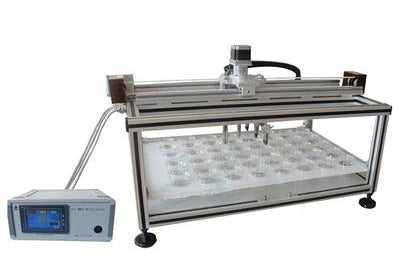

PTL-MM02-8P is a multi-position precision dip coater, which can coat 5 pcs sample in one row at each time, and dip each row of sample up to 8 positions as the program to achieve multi-layer coating.
|
Working Voltage
|
- 110/220V AC switchable, 50/60 Hz
|
|
Max. Power Consumption
|
|
|
Max Stroke length
|
|
|
Maximum sample load
|
|
|
Sample Clamp & Sample Size
|
- Sample clamp: 5 pcs included
- Standard sample size: 65mm L x 25mm W x 1 - 2.5 mm
|
|
Control Unit
|
-
All parameters are controlled by PLC via Color Touch Screen 6"(L) x 4"(W)
- Control unit is separated from dip coating device to allow remote operation
|
|
Insertion Speed
|
- 1 - 200 mm/minute programmable by Touch Screen PLC
|
|
Pulling Speed
|
- 1 - 200 mm/minute programmable by Touch Screen PLC
|
|
Horizontal Moving Speed
|
- 50 ~ 500 mm/minute adjustable
|
|
Speed Stability
|
|
| Immersion Container |
- 40 pcs pry-glass breaker ( 100 ml) included with breaker holder
- Breaker size: 50mm Dia. x 70 mm H ( 100 mL capacity )
|
| Optional |

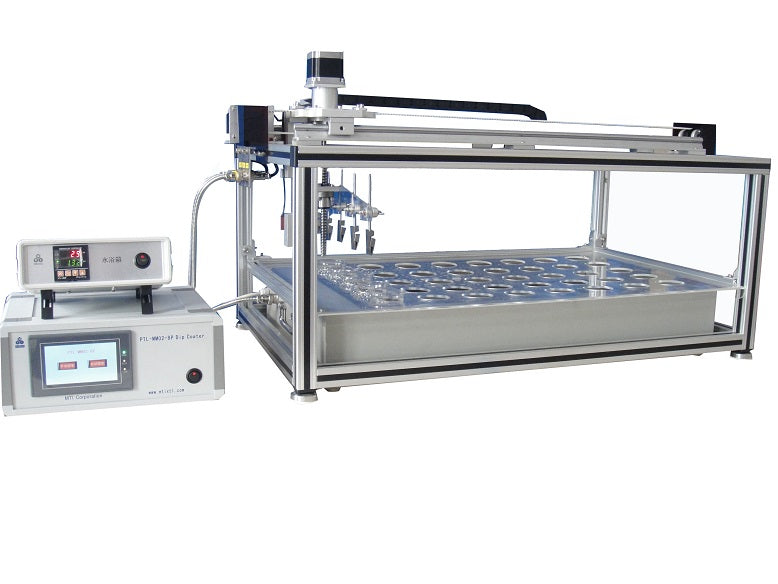

- 800W water bath with temperature controller is available at extra cost ( please see picture 1 below)
-
This device can be placed into the glovebox for an oxygen-free environment (Pic. 2)
- The dip-coater may be placed inside a fume hood or glove box as in picture 3 below- right
-

|
| Compliance |
|
