Specifications

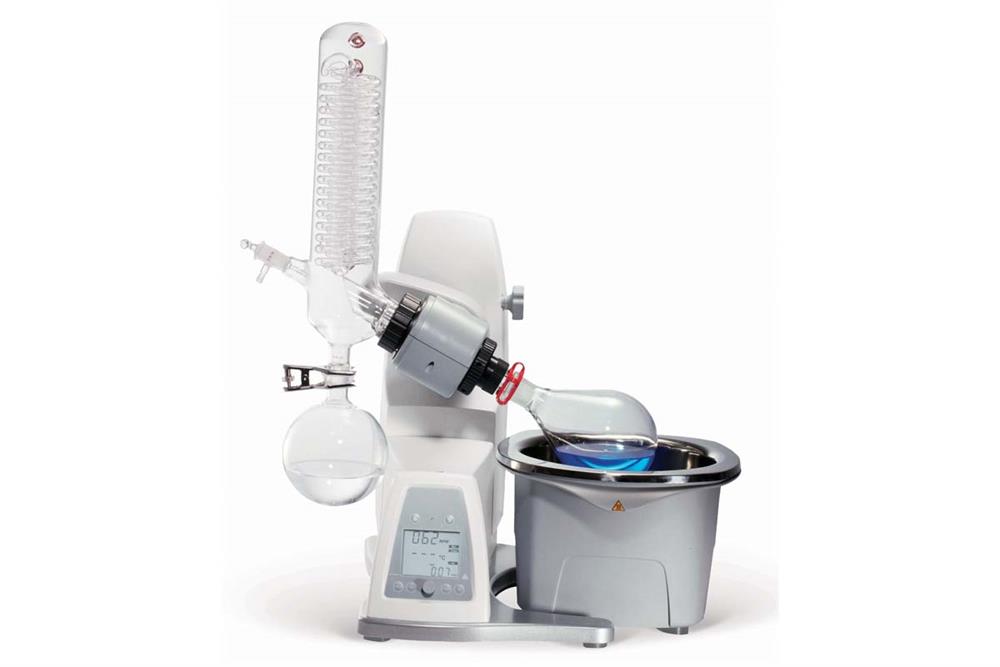

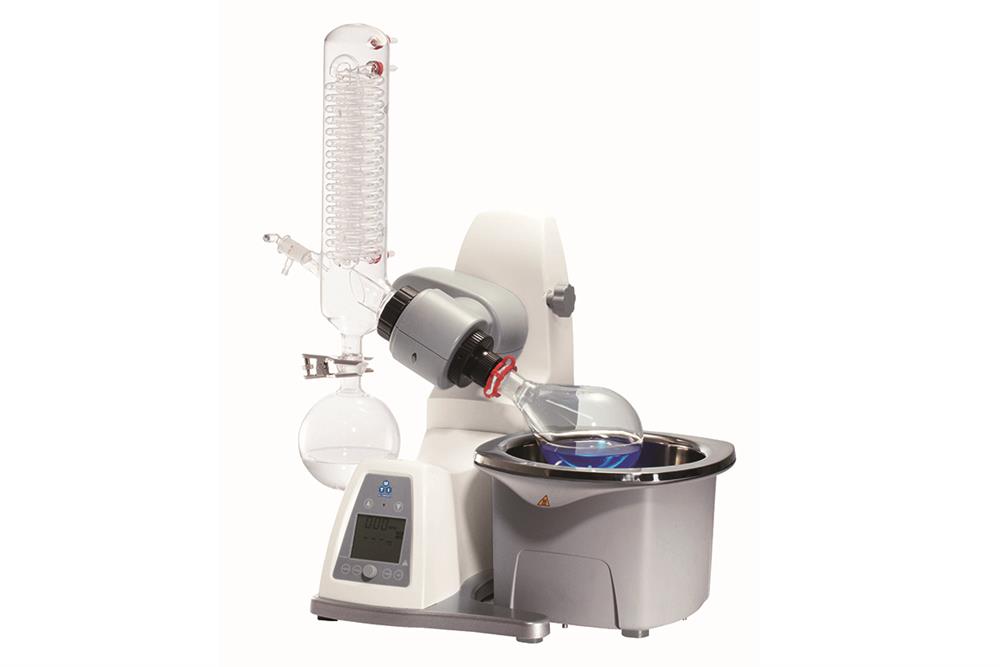

EQ-RE-5L is an NRTL certified rotary evaporator for evaporating and distilling. It is an essential tool for the efficient removal of solvents from samples in material and chemical research. It is used for thermal evaporation in a wide range of applications
Features
|
- Rotating speed and heating temperature Control
- Once out of power, the brushless DC motor can automatically load the evaporating flask to a safety position
- Speed range from 20 to 280 rpm with both of clockwise and counterclockwise directions
- 5 liters heating bath with a temperature range from room temperature to 180°C
- Overheating protection at 220°C

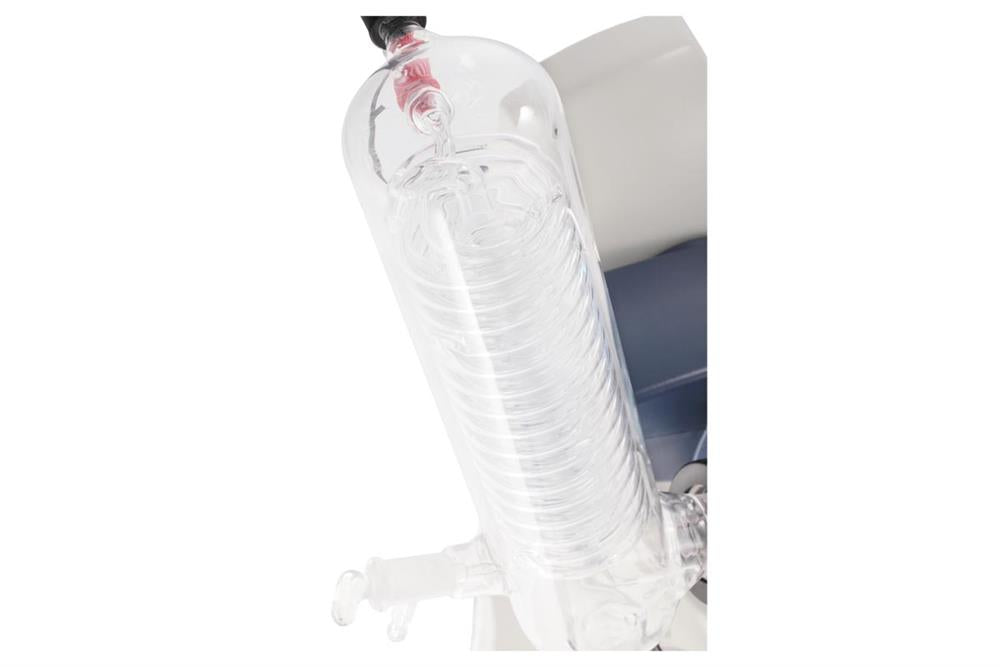

- Vertical or Diagonal condenser with 1500 cm^2 cooling surface
|
| Input Power |
- AC 100 - 240V, 50 / 60 Hz
- Maximum power: 1400 W
|
Motor
|

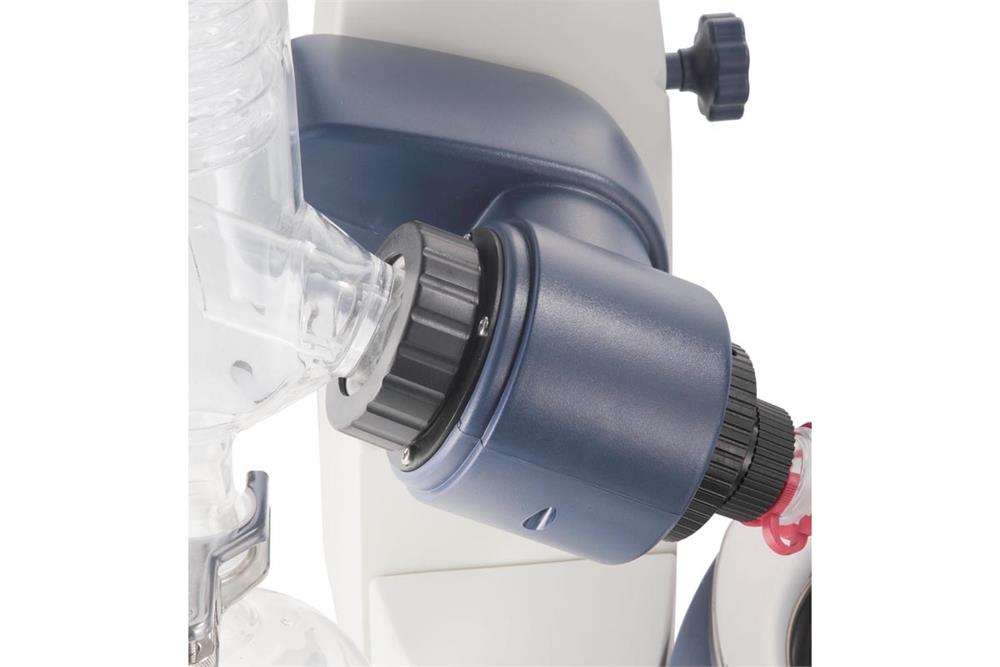

- Brushless DC motor for rotating and lifting
- Speed Range: 20 - 280 rpm
- Directions: clockwise or counterclockwise adjustable
- Stroke (for lifting): 150 mm
|
| Heating |
- The volume of the heating bath: 5 Liters
- Temperature range: RT - 180°C
- Temperature accuracy: 1°C
- Ambient environment temperature: 5 - 40°C
|
| Glassware |

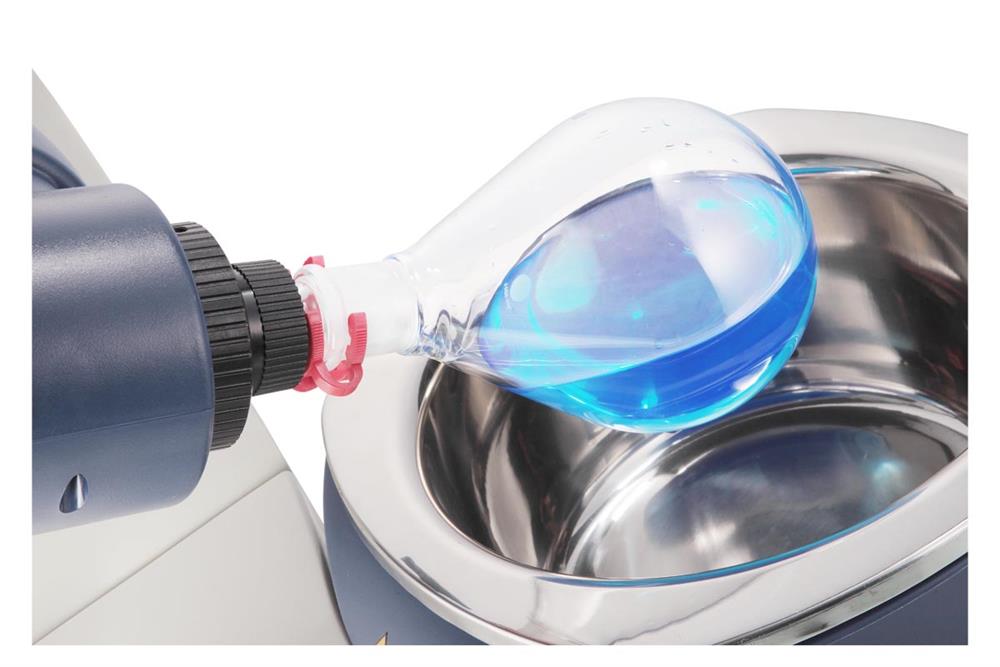

- Evaporating flask

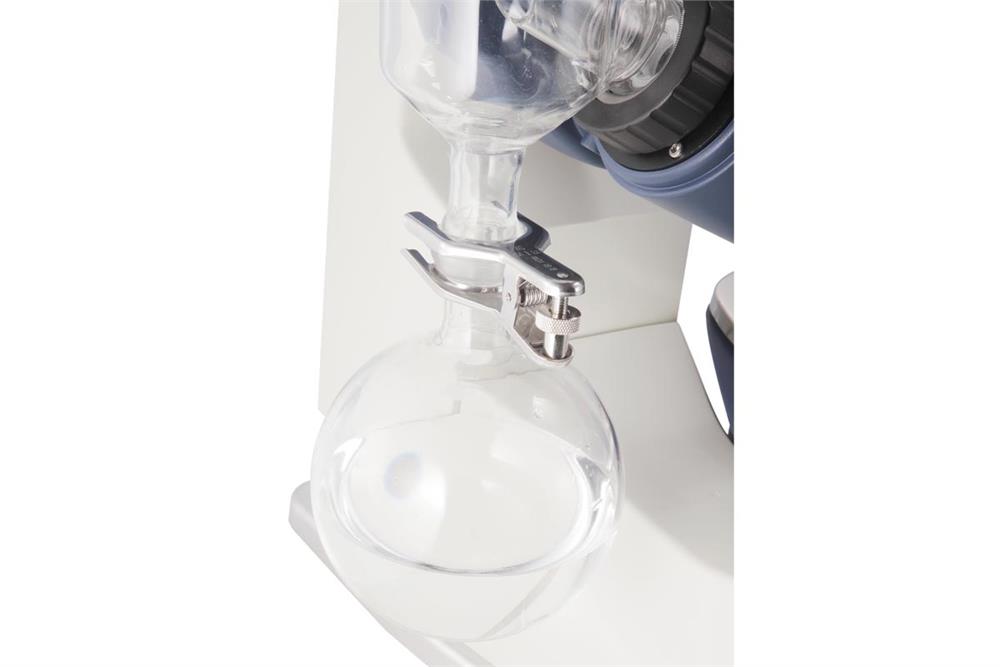

- Standard evaporating receiving flask
- Optional distilling spider with 5 flasks
|
| Timer |
|
| Water Chiller (Optional) |
|
| Dimension |
- 465 mm L x 457 mm W x 583 mm H
|
| Net Weight |
|
| Compliance |
|
