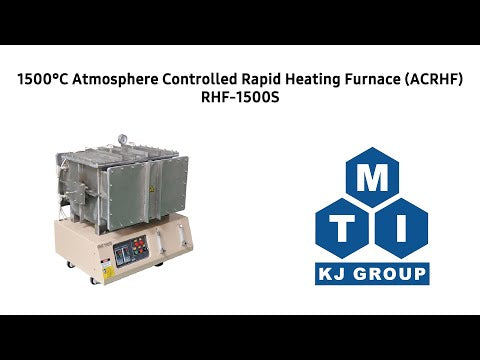

1500°C Atmosphere Controlled Rapid Heating Furnace (ACRHF) - RHF-1500S

1500°C Atmosphere Controlled Rapid Heating Furnace (ACRHF) - RHF-1500S

SKU: rhf-1500s

Price: RFQ

Specifications

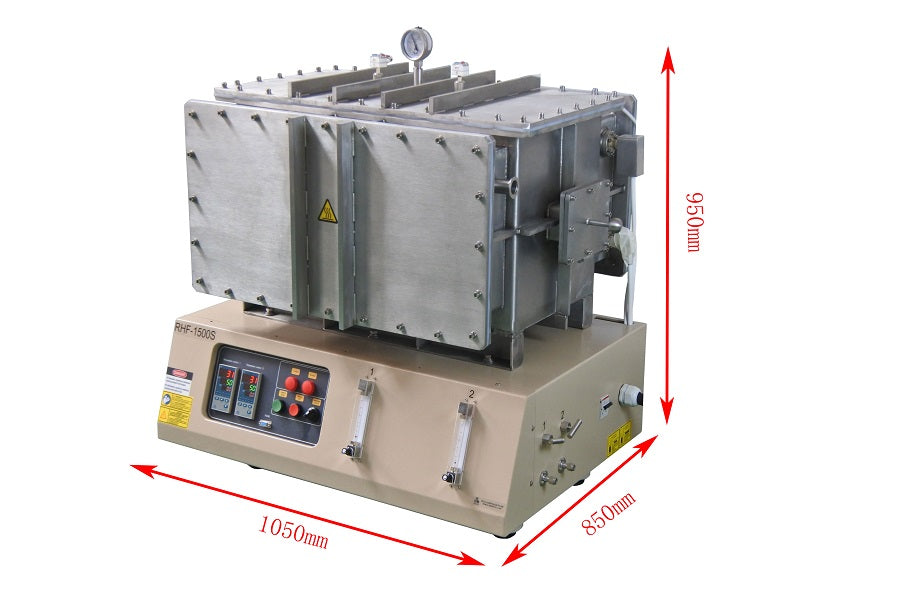

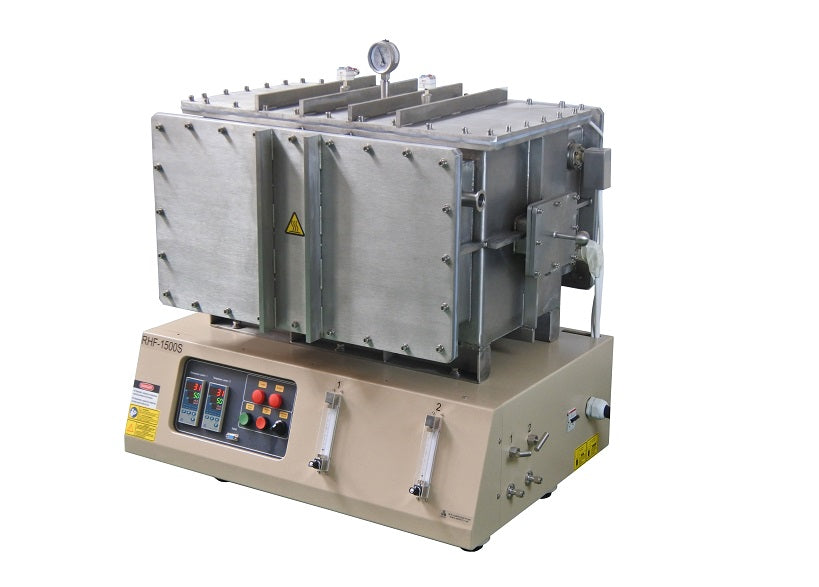

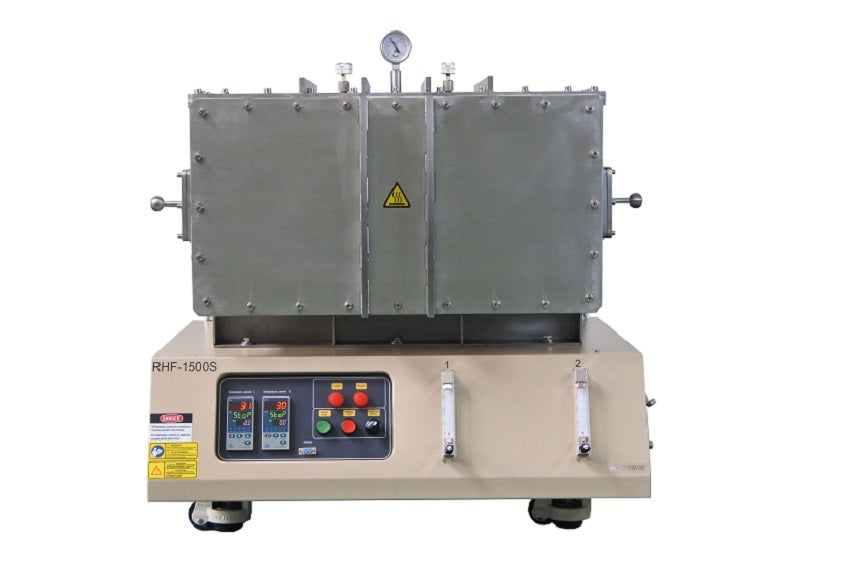

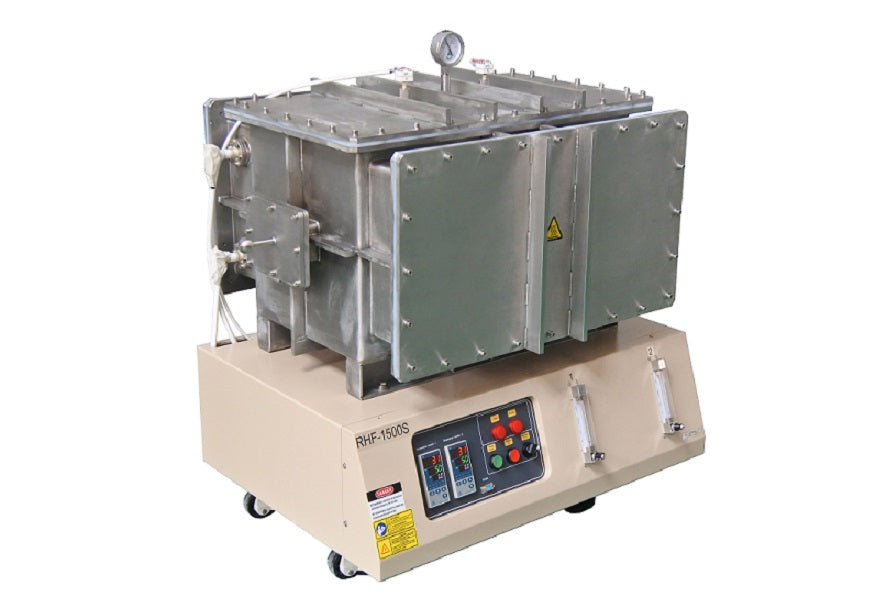

RHF-1500S is a bench-top atmosphere-controlled rapid heating furnace ( ACRHF) with a max working temperature of 1500 °C. The small furnace is designed for simulating a big kiln to find suitable sintering processing, and it is excellent for making single-crystal cathode powders for battery materials. SPECIFICATIONS Furnace Features Two heating zones with ceramic rollers in the middle to produce rapid heating Heating elements are made of SiC rods with a maximum. 1500oC working temperature The heating module is placed inside a vacuum chamber for atmosphere control from oxygen to inert gases. 400 mm long heating zone with 200mm constant temperature zone within +/- 2ºC Dual programmable temperature controllers provide +/-1ºC accuracy Two flowmeters are installed for gas flow control Power AC 208-240V, single-phase, 50/60 Hz 12 KW max ( 30A breaker and plug required ) 10-foot power cable included but without plug Heating chamber SiC rod as heating elements Heating Zone: Two heating zones with a total dimension of L400 x W150 x H89 mm ( 53L capacity) Constant temperature zone: 200 mm with +/- 3ºC Almina ceramic rods are middle of the heating chamber to hold the multi-crucibles Fiberus alumina is used as thermal insulation Max. working temperature: 1500°C max (< 60 minutes ) and 1400°C (continuous ) Max heating rate: 50 ºC/s Vacuum chamber The heating module is placed into a stainless steel vacuum chamber with KF 25 vacuum port Dial vacuum gauge Gas inlet and outlet port ( 1/4) Two hinged types doors for loading and unloading samples Temperature Control Two temperature controllers for controlling two zones independently via SCR PID automatic control with up to 30 programmable segments for precise control of heating rate, cooling rate, and dwell time. Over-temperature protection and alarm allow for operation without attendant(s). Two S-type thermal couples are included ± 1 ºC temperature accuracy for dwelling. RS485 Communications Port. PC Control: An MTS-02 control module is included for PC control on this furnace. We recommend ordering a computer (laptop) from us to avoid software installation problems as we will perform installation and testing before shipping. For more information, please click here Vacuum Level and Gas compatible Limited by the vacuum pump 10^-2 torr can be achieved by the mechanical pump 10^-4 torr can be reached by molecular pump The pump is not included. (Please click the picture left to order ) The furnace is comparable to oxygen and inert gases ( not for flammable gases) For use with H2 gas, you must get a permit from MTI, and the furnace must be modified Crucibles (optional) Two Alumina Boats / Saggar (400ml) can fit into the furnace and sinter 1 kg NMC Click Pic 1 to order. 8 round crucibles ( 50 mm Dia ) can fit into the furnace for multi-composition materials. Click Pic. 2 to order ) Pic. 1 Pic. 2 Compliance CE Certified NRTL(UL61010) or CSA certification is available upon request at extra cost.

Furnace Features


  • Two heating zones with ceramic rollers in the middle to produce rapid heating
  • Heating elements are made of SiC rods with a maximum. 1500oC working temperature
  • The heating module is placed inside a vacuum chamber for atmosphere control from oxygen to inert gases.
  • 400 mm long heating zone with 200mm constant temperature zone within +/- 2ºC
  • Dual programmable temperature controllers provide +/-1ºC accuracy
  • Two flowmeters are installed for gas flow control
Power
  • AC 208-240V, single-phase, 50/60 Hz
  • 12 KW max ( 30A breaker and plug required )
  • 10-foot power cable included but without plug
Heating chamber
  • SiC rod as heating elements
  • Heating Zone: Two heating zones with a total dimension of L400 x W150 x H89 mm ( 53L capacity)
  • Constant temperature zone: 200 mm with +/- 3ºC
  • Almina ceramic rods are middle of the heating chamber to hold the multi-crucibles
  • Fiberus alumina is used as thermal insulation
  • Max. working temperature: 1500°C max (< 60 minutes ) and 1400°C (continuous )
  • Max heating rate: 50 ºC/s
Vacuum chamber

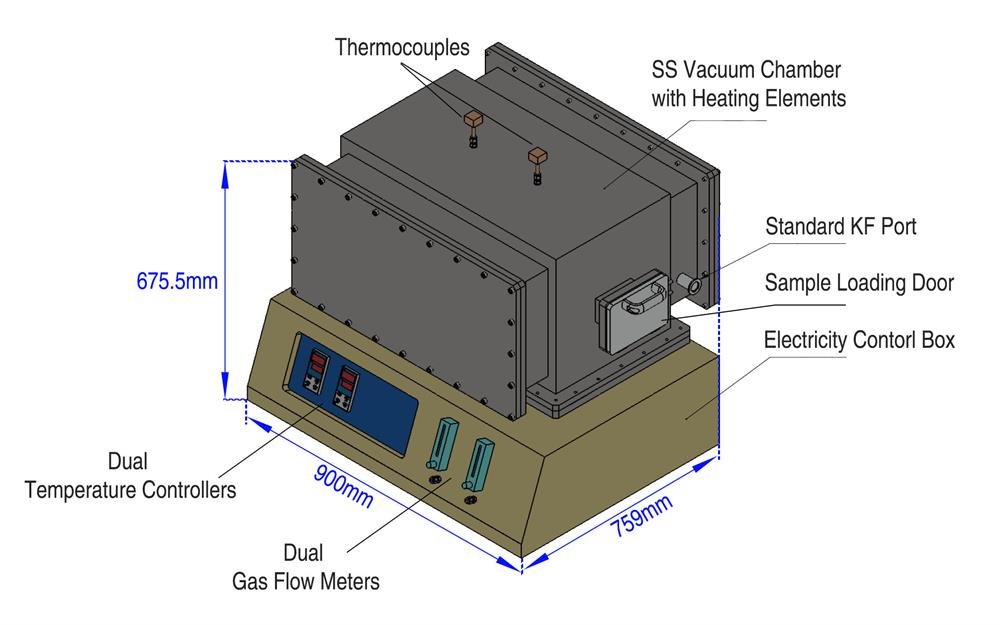

  • The heating module is placed into a stainless steel vacuum chamber with
    • KF 25 vacuum port
    • Dial vacuum gauge
    • Gas inlet and outlet port ( 1/4)
  • Two hinged types doors for loading and unloading samples

Temperature Control






  • Two temperature controllers for controlling two zones independently via SCR
  • PID automatic control with up to 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • Two S-type thermal couples are included
  • ± 1 ºC temperature accuracy for dwelling.
  • RS485 Communications Port.
  • PC Control:
    • An MTS-02 control module is included for PC control on this furnace.
    • We recommend ordering a computer (laptop) from us to avoid software installation problems as we will perform installation and testing before shipping. For more information, please click here

Vacuum Level and
Gas compatible


  •  Limited by the vacuum pump
    • 10^-2 torr can be achieved by the mechanical pump
    • 10^-4 torr can be reached by molecular pump
  • The pump is not included. (Please click the picture left to order )
  • The furnace is comparable to oxygen and inert gases ( not for flammable gases)
  • For use with H2 gas, you must get a permit from MTI, and the furnace must be modified

Crucibles (optional)

  •  Two Alumina Boats / Saggar  (400ml) can fit into the furnace and sinter 1 kg NMC Click Pic 1 to order.
  •  8 round crucibles ( 50 mm Dia ) can fit into the furnace for multi-composition materials. Click Pic. 2 to order )
Pic. 1 Pic. 2



Compliance

  • CE Certified
  • NRTL(UL61010) or CSA certification is available upon request at extra cost.
