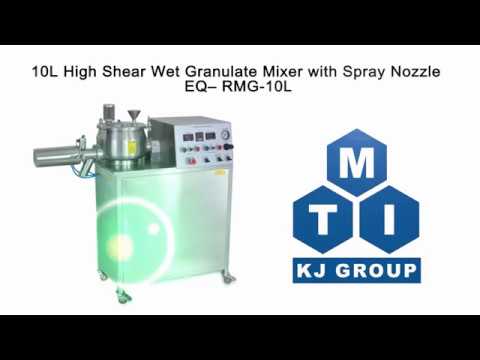

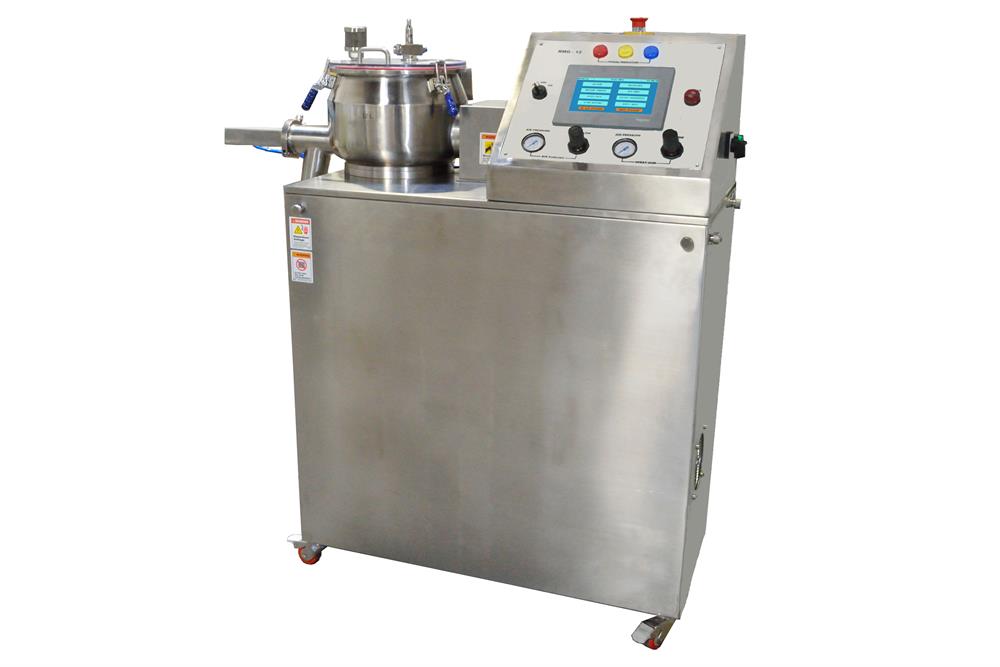

10L High Shear Granulate Mixer with Air-Assisted Spray Nozzle - RMG-10L
  • 10L High Shear Granulate Mixer with Air-Assisted Spray Nozzle - RMG-10L
  • 10L High Shear Granulate Mixer with Air-Assisted Spray Nozzle - RMG-10L
10L High Shear Granulate Mixer with Air-Assisted Spray Nozzle - RMG-10L

10L High Shear Granulate Mixer with Air-Assisted Spray Nozzle - RMG-10L

SKU: rmg-10l

Price: RFQ

Specifications

 RMG-10L is a pilot-scale rapid mixer and granulator, which is mainly used in R&D for the wet mixing of the chemical compound. Basically, it consists of a Bowl, Impeller & Chopper assembly and provides complete reliability of the processing for Mixing, Homogenizing, and Granulating as the result of intensive up to date development. SPECIFICATIONS The Principle of Process RMG-10L performs dry mixing & wet granulating by basic design of the special four arms of the mixing impeller and sequences of the mixing process in the cylindrical mixing drum with the rounded connection to the base plate, achieve another special effect. The mixing process runs without varying pressure zone in the volume of the mixing product. Separately driven multiple choppers can effectively intensify the mixing result in particular when liquid or paste components are added. During humidifying and the granulating process of the products, the chopper controls and regulates the granular spectrum and structure of the granules according to the product, chopper shape and time. The system requires only small quantities of granulating liquid or pastes to obtain the required granulate structure. This reduces the amount of drying energy required. SALIENT FEATURES: High Shear Mixing, Homogenizing, Humidifying, and Granulating process Offers reproducible mixing and granulation processes Contact parts of SS 316 and non-contact parts of SS 304 Easy to install, operate, clean, convenient & user-friendly Easy to dismantle seal and chopper bearing Easy moveability with the help of a trolley Variable Speed Drive for the main impeller and chopper motor Top Spray Gun & Peristaltic Pump is included for uniform bender adding Automatic advanced PLC Controls with Touch Screen (Optional) Power Supply AC 208V 50/60Hz, Three Phases Main Motor: 750W Chopper Motor: 400W Total < 1500W The power plug is not included. Please click here to order the plug Working volume Max: 10 Liter (5 Kg) Min: 2 Liter (2 Kg) Optional: smaller volume mixer is available upon request. (2L & 5L) Speed Chopper Blade RPM: 50 RPM to 2800 RPM Variable Granulation-Main Blade RPM: 15 RPM to 150 RPM Variable Main Impeller Granulator RPM: 0 to 150 RPM Maximum – variable Chopper Impeller RPM: Maximum 2800 RPM- variable Spray gun (Optional) Top Spray Gun + 5 Ltrs. Solution Preparation Tank Motorize is available upon request Peristaltic Pump (Optional) Suitable for shear sensitive, aggressive, or viscous fluids Speed: 0.01 to 99.99 RPM Flow Range/(min) 0-100 mL Tube Size: I.D: 0.5mm-4mm max. O.D. 3.5mm-7mm max. Tube Wall Thickness:1.5mm Available at an extra cost. Please contact us for more information Pneumatic Cylinder Discharge Gate Air purging At Main Blade and Chopper Blade Optional Accessories at Extra Cost. Flame Proof Motor Flame Proof Peristaltic pump Separate Power Panel Box for Non-FLP Area Product Temperature sensor Air Compressor Compliance CE Certified NRTL certification is available upon request at an extra cost

The Principle of Process

RMG-10L performs dry mixing & wet granulating by basic design of the special four arms of the mixing impeller and sequences of the mixing process in the cylindrical mixing drum with the rounded connection to the base plate, achieve another special effect. The mixing process runs without varying pressure zone in the volume of the mixing product. Separately driven multiple choppers can effectively intensify the mixing result in particular when liquid or paste components are added.
During humidifying and the granulating process of the products, the chopper controls and regulates the granular spectrum and structure of the granules according to the product, chopper shape and time. The system requires only small quantities of granulating liquid or pastes to obtain the required granulate structure. This reduces the amount of drying energy required.

  • SALIENT FEATURES:
    • High Shear Mixing, Homogenizing, Humidifying, and Granulating process
    • Offers reproducible mixing and granulation processes
    • Contact parts of SS 316 and non-contact parts of SS 304
    • Easy to install, operate, clean, convenient & user-friendly
    • Easy to dismantle seal and chopper bearing
    • Easy moveability with the help of a trolley
    • Variable Speed Drive for the main impeller and chopper motor
    • Top Spray Gun & Peristaltic Pump is included for uniform bender adding
    •  Automatic advanced PLC Controls with Touch Screen (Optional)

Power Supply
Working volume
  • Max: 10 Liter (5 Kg)
  • Min: 2 Liter (2 Kg)
  • Optional: smaller volume mixer is available upon request. (2L & 5L)
Speed
  • Chopper Blade RPM: 50 RPM to 2800 RPM Variable
  • Granulation-Main Blade RPM: 15 RPM to 150 RPM Variable
  • Main Impeller Granulator RPM: 0 to 150 RPM Maximum – variable
  • Chopper Impeller RPM: Maximum 2800 RPM- variable

Spray gun (Optional)

  • Top Spray Gun + 5 Ltrs. Solution Preparation Tank Motorize is available upon request

Peristaltic Pump (Optional)
  • Suitable for shear sensitive, aggressive, or viscous fluids
  • Speed: 0.01 to 99.99 RPM
  • Flow Range/(min) 0-100 mL
  • Tube Size: I.D: 0.5mm-4mm max. O.D. 3.5mm-7mm max.
  • Tube Wall Thickness:1.5mm
  • Available at an extra cost. Please contact us for more information

Pneumatic Cylinder
  • Discharge Gate

Air purging
  • At Main Blade and Chopper Blade

Optional Accessories at Extra Cost.
  • Flame Proof Motor
  • Flame Proof Peristaltic pump
  • Separate Power Panel Box for Non-FLP Area
  • Product Temperature sensor
  • Air Compressor
Compliance
