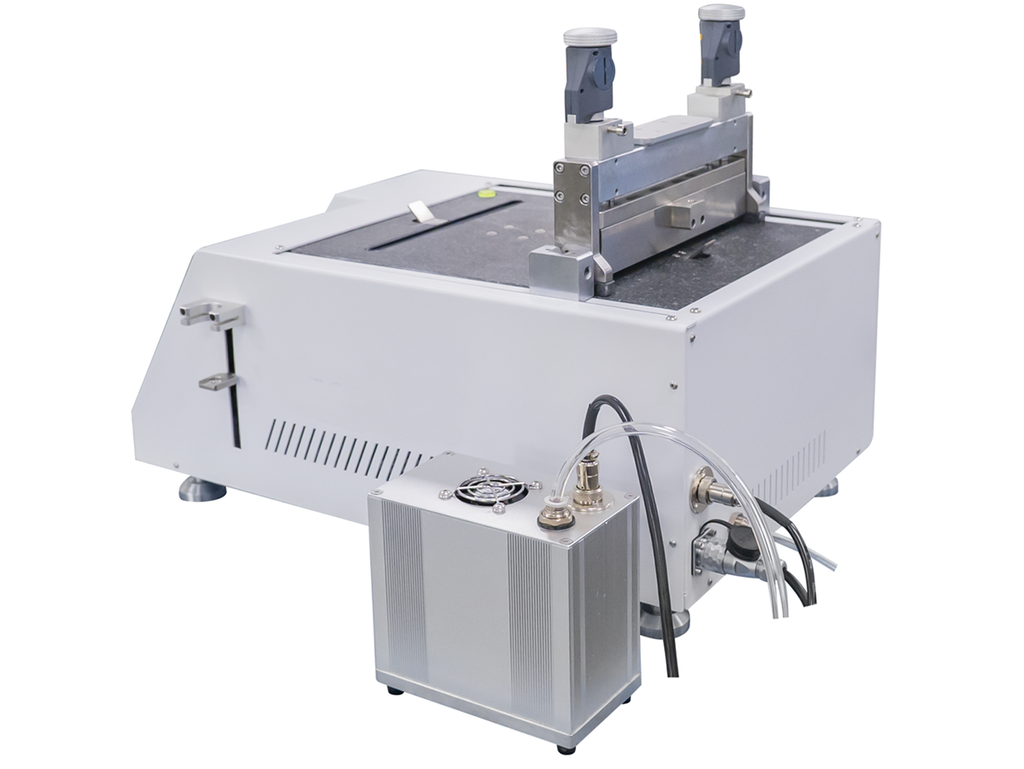

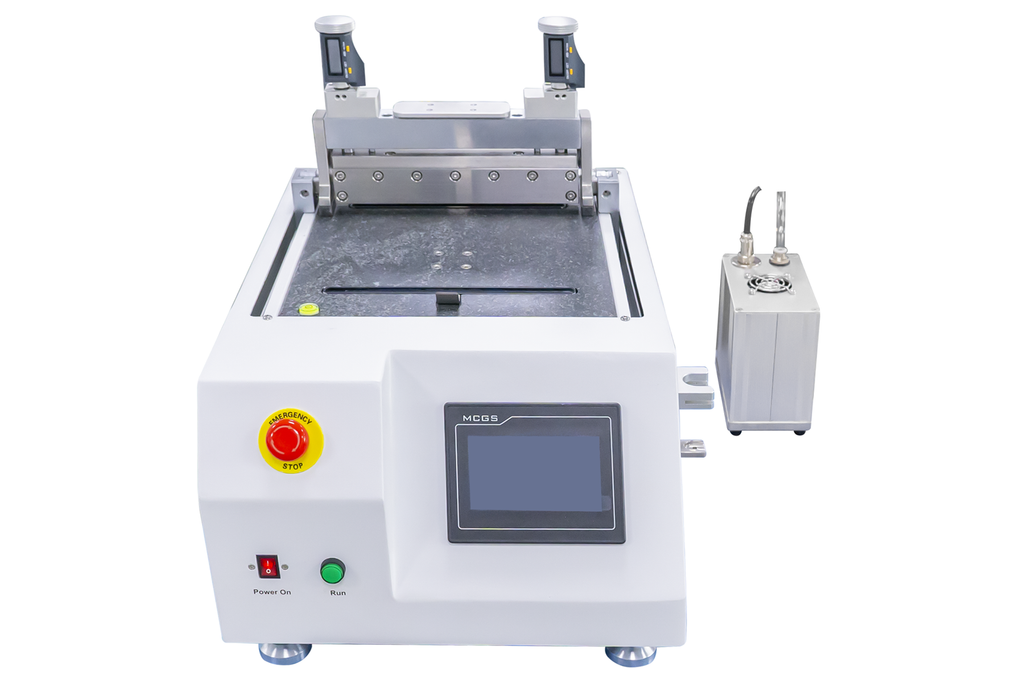

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020

SKU: sheet-to-sheet-slot-die-coater-with-marble-vacuum-chuck-200-mm-200-mm-for-perovskite-solar-cells-msk-psc-mm2020

Price: RFQ

Specifications

MSK-PSC-MM2020 is a precise sheet-to-sheet slot die coater with a 200 mm coating width and the super flat marble vacuum chunk is used for thin film coating with high uniformity. This coater is designed for ultrathin perovskite layer coating with diluted precursor solutions. SPECIFICATIONS Power AC220V±10%, 50/60Hz, 220W (AC110V can be provided upon request) Slot Die Head 200 mm width slot die head with 3 pcs shims with thickness 0.02, 0.04, 0.06 mm included (others thicknesses are available upon request) Different open-mouth width shims for various coating width are available upon request. Minimum coating thickness: 2 um (depending on slurry viscosity) Inside channel volume is 2 mL Gap Control 0-6.8 mm with digital micrometer, accuracy is ±1 um Substrate Rigid substrates, such ITO, FTO. Max. thickness is <3.2 mm Flexible substrate, such as ITO or FTO on PET Travel Speed & Length Coating Travel Speed: Max. 25 mm/s adjustable via touch screen control panel Maximum coating area: 200 mm W x 200 mm L 5 um-100 um (wet film, depends on material property) Slurry feeding speed: 5 mL/min Syringe volume: 10 mL Slurry viscosity: 1-1000 cps Marble Vacuum Chuck Surface accuracy is ≤5um Small hole diameter: 3 mm, four holes Vacuum pump is externally connected Control Panel 4" color touchscreen panel to set coating speed, heating temperature, and syringe pump speed Compliance CE certified NRTL or CSA certification is available upon request at extra cost Dimension W345mm×D514mm×H230mm Weight 31 kg

Power
  • AC220V±10%, 50/60Hz, 220W (AC110V can be provided upon request)
Slot Die Head

  • 200 mm width slot die head with 3 pcs shims with thickness 0.02, 0.04, 0.06 mm included (others thicknesses are available upon request)
  • Different open-mouth width shims for various coating width are available upon request.
  • Minimum coating thickness: 2 um (depending on slurry viscosity)
  • Inside channel volume is 2 mL

Gap Control

  • 0-6.8 mm with digital micrometer, accuracy is ±1 um

Substrate

  • Rigid substrates, such ITO, FTO. Max. thickness is <3.2 mm
  • Flexible substrate, such as ITO or FTO on PET

Travel Speed & Length

Coating

  • Travel Speed: Max. 25 mm/s adjustable via touch screen control panel
  • Maximum coating area: 200 mm W x 200 mm L
  • 5 um-100 um (wet film, depends on material property)
  • Slurry feeding speed: 5 mL/min
  • Syringe volume: 10 mL
  • Slurry viscosity: 1-1000 cps
Marble Vacuum Chuck

  • Surface accuracy is ≤5um
  • Small hole diameter: 3 mm, four holes
  • Vacuum pump is externally connected
Control Panel
  • 4" color touchscreen panel to set coating speed, heating temperature, and syringe pump speed
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at extra cost
Dimension
  • W345mm×D514mm×H230mm
Weight
  • 31 kg
